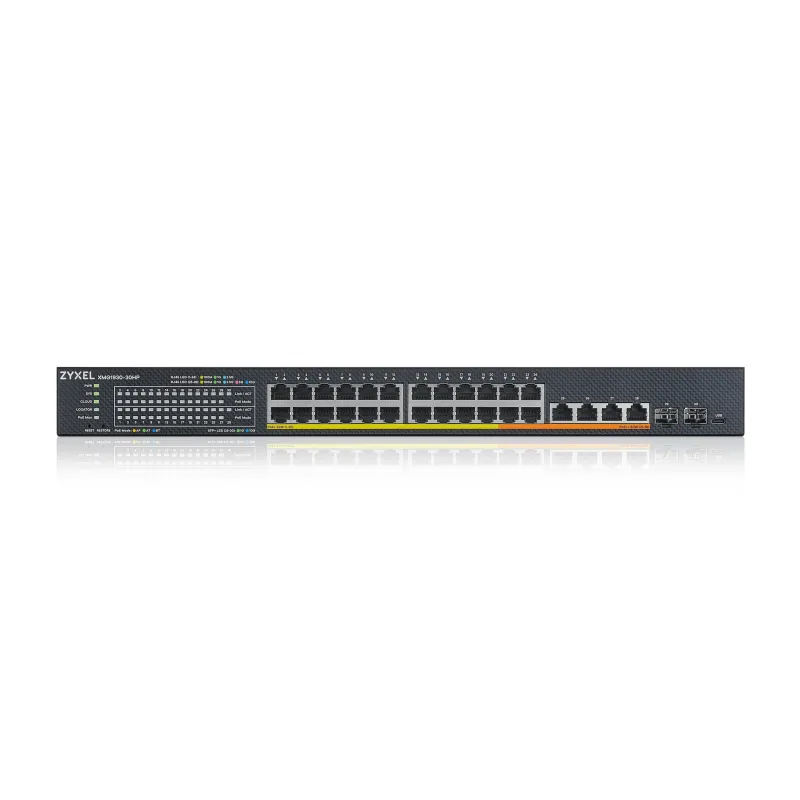

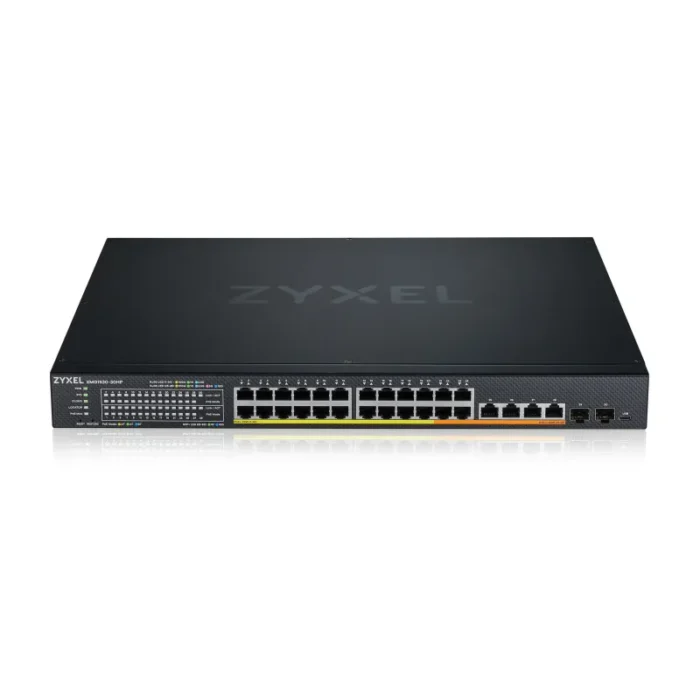

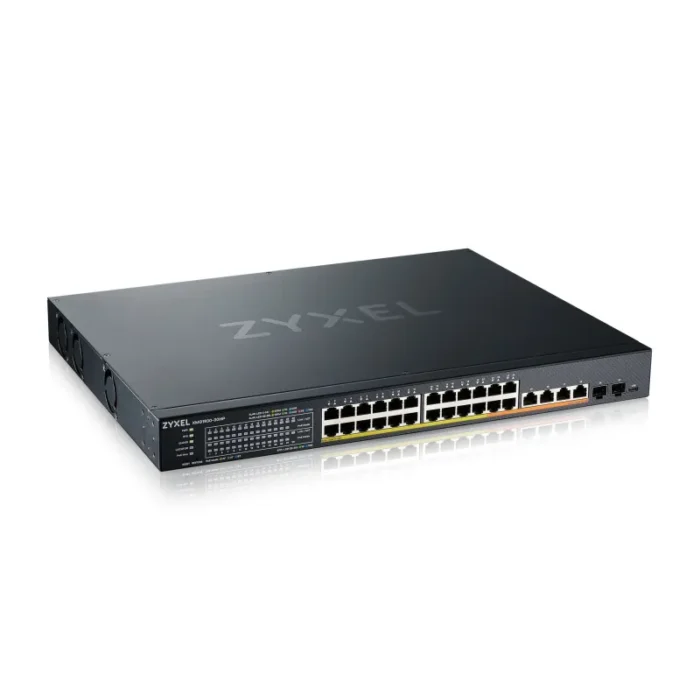

Zyxel XMG1930-30HP Managed L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black
- Multi-Gigabit supports with 2.5G and 10G combinations offering flexibility for high density Multi-Gig deployments
- Up to Six 10G uplinks including both copper and fiber options providing extensibility and resilience for networks
- Main ports support up to 2.5G makes the Switch an ideal solution for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user
- Nebula ecosystem offers a unified cloud network experience, from wired, wireless and security gateway
- Smart Managed L2 Switch feature set with L3 static route
- Access and manage the full feature sets included from the first day of purchase through the local web GUI
The XMG1930 series is a family of Multi-Gigabit L2 Smart Managed switches including 2 models, with and without PoE options.
On top of its high-density twenty-four 2.5G ports that serve as a top performance access switch to upgrade from standard gigabit network, the switches also offer four 10G Multi-Gigabit ports to expand network connection to WiFi 6/6E AP or 10G servers along with two additional 10G fiber ports for extensibility and resilience. The PoE model XMG1930-30HP supports both PoE+ and PoE++ with a large power budget of 700 W offering great flexibility to deploy WiFi 6/6E and WiFi 7 wireless access points; while the non-PoE model XMG1930-30 is ideal for high-speed Internet Service Providers to upgrade from traditional 1G/2.5G to every user.
Management features |
MIB support |
Y |
Configuring Location Settings (CLI) |
Yes |
Web-based management |
Yes |
Cloud-managed |
Yes |
Quality of Service (QoS) support |
Yes |
Switch layer |
L3 |
Switch type |
Managed |
Ports & interfaces |
Power connector |
AC-in jack |
Fiber optic connector |
SFP+ |
Installed SFP+ modules quantity |
2 |
10G Ethernet (copper) ports quantity |
4 |
Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
Basic switching RJ-45 Ethernet ports quantity |
24 |
Network |
Number of VLANs |
4000 |
VLAN support |
Yes |
Flow control support |
Yes |
Rate limiting |
Yes |
Broadcast storm control |
Yes |
Ethernet LAN data rates |
10,100,1000,2500,10000 Mbit/s |
Spanning tree protocol |
Yes |
Policy-based routing |
Yes |
10G support |
Yes |
Networking standards |
IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
Data transmission |
Jumbo frames |
12000 |
Jumbo frames support |
Yes |
Static route |
Yes |
Forwarding rate |
178.5 Mpps |
Switching capacity |
240 Gbit/s |
MAC address table |
16000 entries |
Security |
Loop protection |
Yes |
MAC address filtering |
Yes |
SSH/SSL support |
Yes |
IGMP snooping |
Yes |
Access Control List (ACL) |
Yes |
DHCP features |
DHCP client, DHCPv6 relay |
Multicast features |
Multicast support |
Yes |
Protocols |
GARP VLAN Registration Protocol (GVRP) |
Yes |
Design |
LED indicators |
Yes |
Reset button |
Yes |
Product colour |
Black |
Form factor |
1U |
Rack mounting |
Yes |
Performance |
Mean time between failures (MTBF) |
587922.31 h |
Power |
Power consumption (max) |
864.1 W |
AC input frequency |
50 – 60 Hz |
AC input voltage |
100 – 240 V |
Power supply included |
Yes |
Power source |
AC |
Power over Ethernet (PoE) |
Total Power over Ethernet (PoE) budget |
700 W |
Power over Ethernet plus (PoE+) ports quantity |
20 |
Power over Ethernet (PoE) ports quantity |
28 |
Power over Ethernet (PoE) |
Yes |
Operational conditions |
Heat dissipation |
864.1 BTU/h |
Storage relative humidity (H-H) |
5 – 95% |
Operating relative humidity (H-H) |
5 – 95% |
Storage temperature (T-T) |
-40 – 70 °C |
Operating temperature (T-T) |
-20 – 50 °C |
Weight & dimensions |
Weight |
4.85 kg |
Height |
44 mm |
Depth |
330 mm |
Width |
441 mm |
Packaging content |
Rack mount kit |
Yes |
Cables included |
AC |
