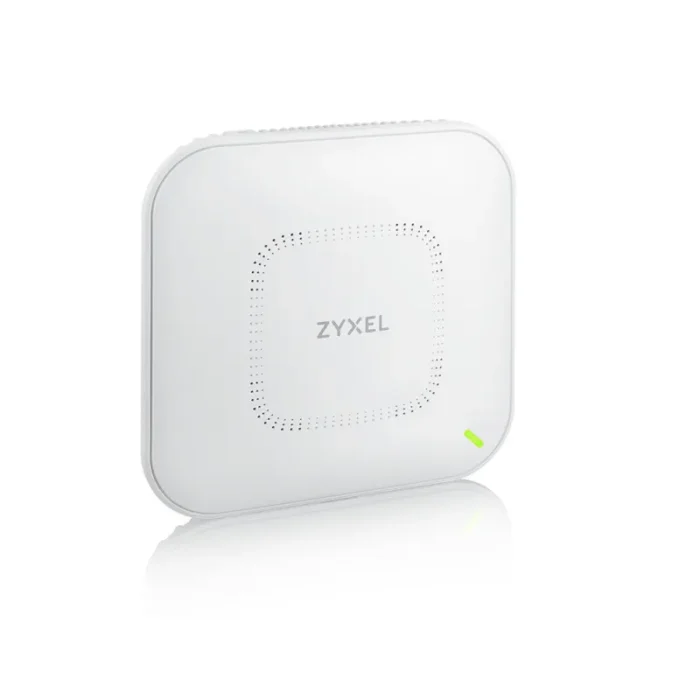

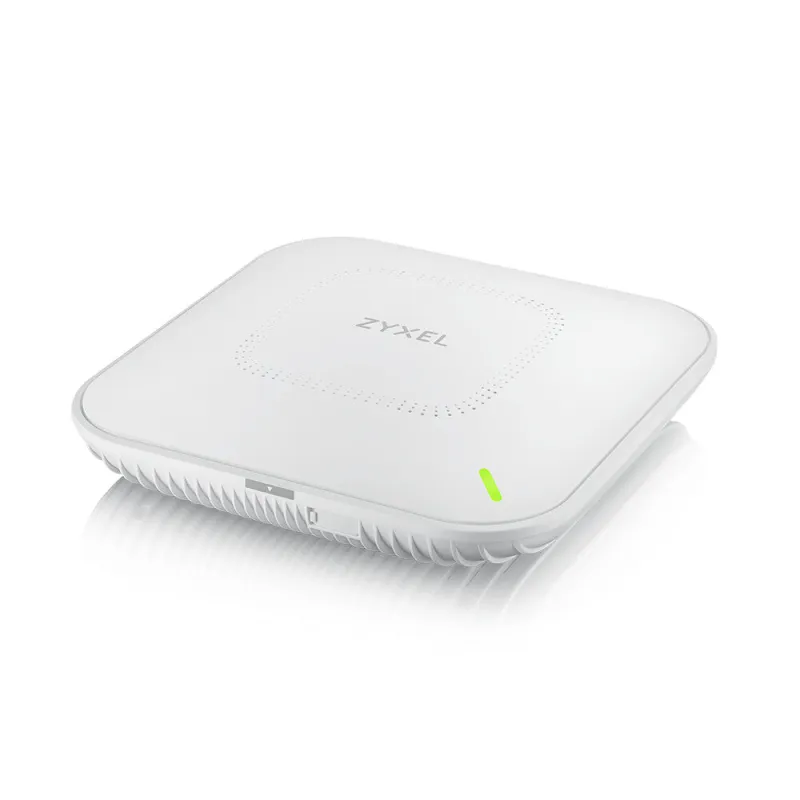

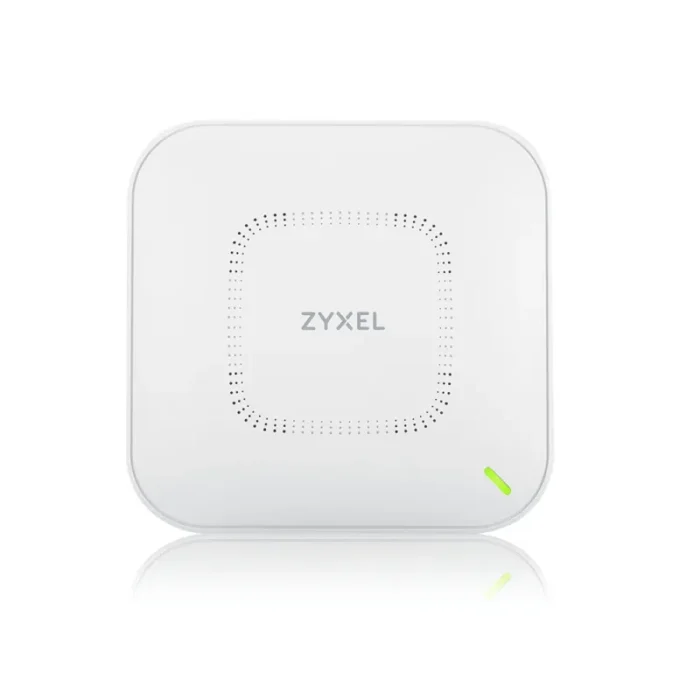

Zyxel WAX650S 3550 Mbit/s White Power over Ethernet (PoE)
- Dual-radio (dual 4×4 MIMO) 802.11ax AP provides maximum data rate of 3550 Mbps, and is equipped with the 3rd dedicated monitoring radio and BLE
- OFDMA is arguably the best innovation of WiFi, delivering the highest performance and low latency for all scenarios
- Smart antenna is the proven technology that can mitigate interference and boost WiFi 6 performance
- NebulaFlex Pro allows users to switch among standalone, onpremises controller managed or intuitive Nebula cloud managed modes as needed
- Advanced Cellular Coexistence minimizes interferences from 4G/5G cellular networks
Faster, smarter WiFi for everyone
The new WiFi 6 standard delivers faster, more consistent connections for every user – even in higher density environments. Any organization that needs to accommodate a large number of devices, can offer better services for everyone, every time they connect to WiFi.
Better-connected classrooms for immersive learning
By delivering faster connections that won’t suffer from increased latency when more devices are connected, WiFi 6 delivers the speed and consistency needed to keep pupils engaged and enthusiastic, so they can make the very best use of technology and online learning resources, helping them to achieve more and teachers to be more effective.
A smarter solution
The WAX650S is also equipped with Zyxel Smart Antenna that continually monitors and adapts every connection to every device, ensuring the optimum performance is delivered at all times. It prevents the connection inconsistencies and delays caused by interferences.
Robust hardware design you can trust
Every hardware design detail is critical to performance and reliability. The WAX650S access point is built with selected high quality components to warrant the best experience and longevity.
Manage it your way!
As it comes with support for NebulaFlex Pro, Zyxel’s scalable, cloud-based management system, the WAX650S can be managed via NCC (Nebula control Center), on-premises controller or simply operate alone (controller less). You can choose the way that is best suited to your needs.
| Features | |
|---|---|
| Receiver sensitivity | -105 dBm |
| Transmitting power | 26 dBmW |
| Band steering | Yes |
| Wireless isolation | Yes |
| VLAN support | Yes |
| Fast roaming | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3bt |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1150 Mbit/s |
| Maximum data transfer rate | 3550 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Auto Wireless Distribution System (WDS) | Yes |
| MAC address filtering | Yes |
| Security algorithms | SNMP, WEP, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| AC input voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Product colour | White |
| Antenna | |
|---|---|
| Antenna gain level (max) | 5.8 dBi |
| Antenna type | Internal |
| Certificates | |
|---|---|
| Certification | FCC 15C, FCC 15E, ETSI EN 300 328, EN 301 893, LP0002FCC 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438EN 60950-1, IEC 60950-1, BSMI CNS14336-1 |
| Weight & dimensions | |
|---|---|
| Weight | 1.16 kg |
| Height | 53.5 mm |
| Depth | 235 mm |
| Width | 230 mm |
| Packaging data | |
|---|---|
| Package weight | 1.49 kg |
| Package height | 79 mm |
| Package depth | 266 mm |
| Package width | 282 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -30 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Operating relative humidity (H-H) | 10 – 95% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
