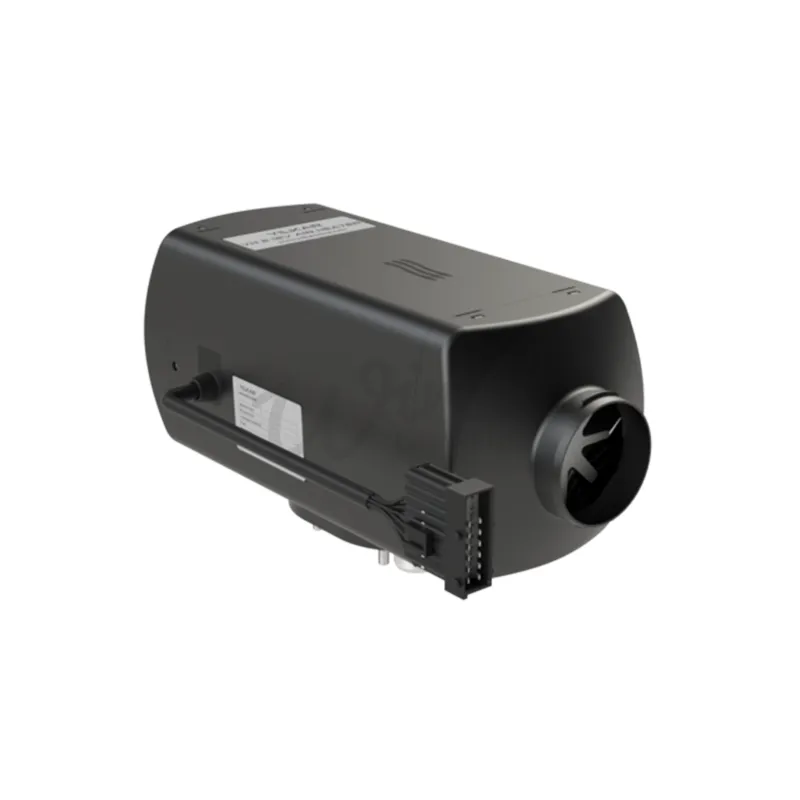

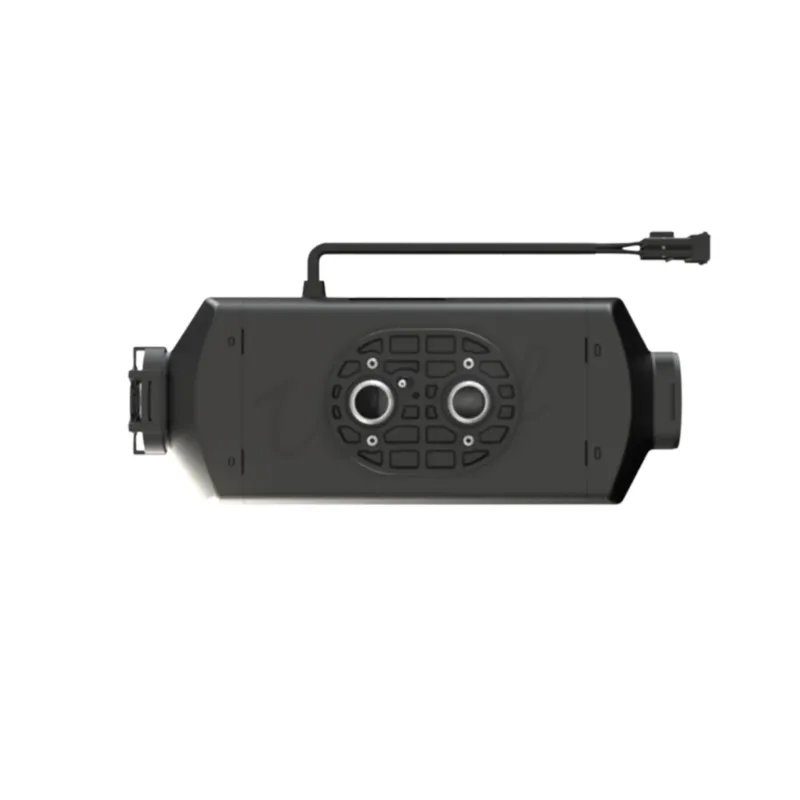

Yilkar YH 2 Camper Van 2.5kW Diesel Air Heater Kit With Control Unit

Yilkar YH 2 Camper Van 2.5kW Diesel Air Heater Kit With Control Unit

The new Yilkar YH 2 is a quality diesel heater made in Turkey, comparable to other big brands without the price tag. Just because it’s cheaper doesn’t mean it’s lacking in features or safety as this unit has full R122 AND R10 Certification and the kit comes with everything needed to complete the install –

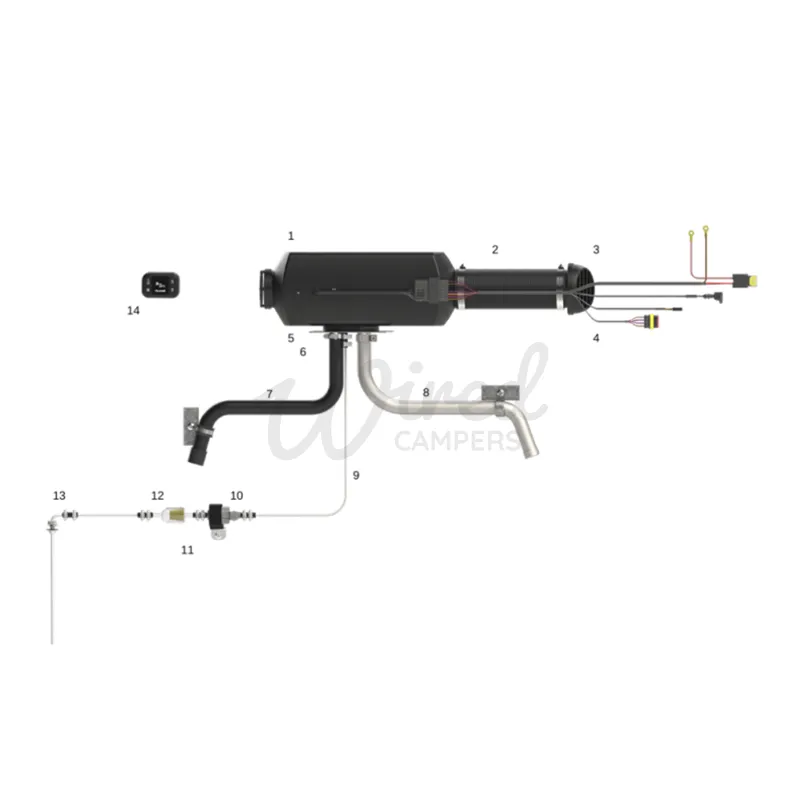

1. Air Heater

2. Air routing hose kit

3. Air inlet / outlet vent kit

4. Main wiring

5. Vibration-absorbing seal

6. Combustion and exhaust air clamp kit

7. Combustion air hose

8. Exhaust air hose

9. Polyamide fuel hose

10. Fuel metering pump

11. Vibration damper pump connection kit

12. Fuel filter kit

13. Fuel hose kit

14. YH Basic control unit

ADAPTIVE HEATING CONTROL

Adaptive heating control is a priority operation algorithm developed by Yılkar’s engineers that detects the heating status of your heater and controls fuel consumption.

Thanks to this control, the device senses the energy obtained from the combustion of the fuel and transmits the air at a temperature suitable for comfort conditions in every situation and environment.

In this way, your device optimises fuel consumption for your needs.

LEAKPROOF DESIGN

While designing Yılkar Air Heaters, it has been taken into consideration that it can be used in all environmental conditions and has been designed accordingly. All electrical components are equipped with sealing parts.

INTELLIGENT OPERATING SYSTEM

Intelligent error detection management system and continuous monitoring

Thanks to the smart card and algorithms that control the operation of our air heaters, the device detects 22 different errors and warns the user. In case of need, the malfunction of the device can be easily resolved.

CONTOL UNIT

• 0.97 inch Oled Large Graphic Display
• 4 Button Control
• Ambient Temperature Sensor
• Adjustable Temperature
• Heating Mode
• Ventilation Mode
• Instant Temperature Display
• Altitude limit 1500m

PRODUCT FEATURES

• ECE R122 AND R10 Certified
• Low emission values
• Adaptive heating control
• 2.5kW Max heating
• Air flow rate up to 90 m3/hour

TECHNICAL SPECIFICATION

• Fuel Type – Diesel
• Voltage – 12V DC
• Weight – 3KG
• Approx. Dimensions – 320mm X 130mm X 150mm
• Part Number – 8300120420010

ECE R122 Certificate

Vehicle Heating System Applicability Approval

The ECE R-122 regulation, published by the European Economic Commission (ECE), regulates the principles of type approval for the heating systems of vehicles of categories M, N, and O.

ECE R-122 regulation prevents diesel-fueled air heaters from overheating, exhaust emission, sealing, etc. Many parameters have been tested.

THIS product passed all tests well below the desired limit.

As a result of the tests carried out in the Czech Republic, it has been certified with document number E8 R-122 0010869.

ECE R10 Certificate

Electromagnetic compatibility approval

This certificate is the type approval test for European automotive electronics. Yilkar air heaters have undergone and successfully passed various tests, including RF immunity and emissions, temporary immunity and emissions.

It electrically meets the requirements for residual burst, fluctuating harmonics, and vibration.

As a result of the tests carried out in Luxemburg, it was certified with the document number E13 R-10 05 15114.
