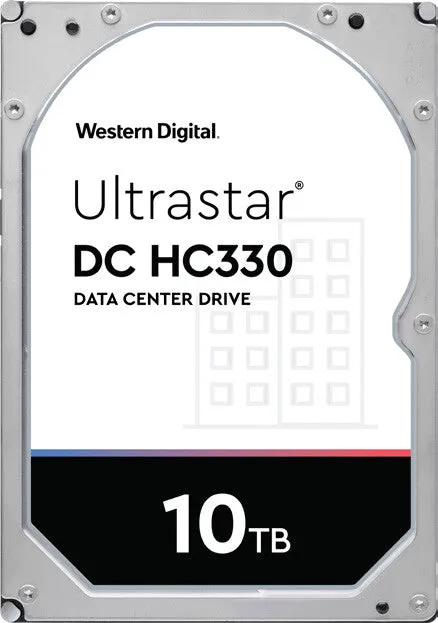

Western Digital Ultrastar DC HC330 internal hard drive 10 TB 7200 RPM 256 MB 3.5″ Serial ATA III
- 10TB capacity point supports both OEM & cloud deployments
- Best in Class sustained trasfer rate up to 273MB/s
- Advanced Format 512e models
- Self-Encrypting Drive options
Medium Capacity for High Access-Density Requirements
Delivering Economics and Access Speed to Data Center Applications and Workloads
As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to the industry leading 10TB of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e3 sector size.
Solves Access Density Challenges
Economical Capacity
4TB, 6TB, 8TB, and 10TB models for lower acquisition cost.
High Performance
Fast data access with 7200 RPM speed, transferring up to 255 MB/s.
Drop-In Ready
SAS and SATA options support traditional servers and storage.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 2000000 h |
| Noise level (idle) | 3.4 dB |
| Start/stop cycles | 600000 |
| 24/7 operation | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Average latency | 4.16 ms |
| Read seek time | 8 ms |
| Write seek time | 8.6 ms |
| HDD sustained transfer rate | 260 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Storage drive buffer size | 256 MB |
| Type | HDD |
| Interface | Serial ATA III |
| HDD size | 3.5″ |
| HDD speed | 7200 RPM |
| HDD capacity | 10 TB |
| Power | |
|---|---|
| Operating voltage | 5 / 12 V |
| Power consumption (idle) | 8 W |
| Operational conditions | |
|---|---|
| Non-operating shock | 250 G |
| Operating shock | 70 G |
| Non-operating vibration | 1.04 G |
| Operating vibration | 0.67 G |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 5 – 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 750 g |
| Height | 147 mm |
| Depth | 26.1 mm |
| Width | 101.6 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717050 |
