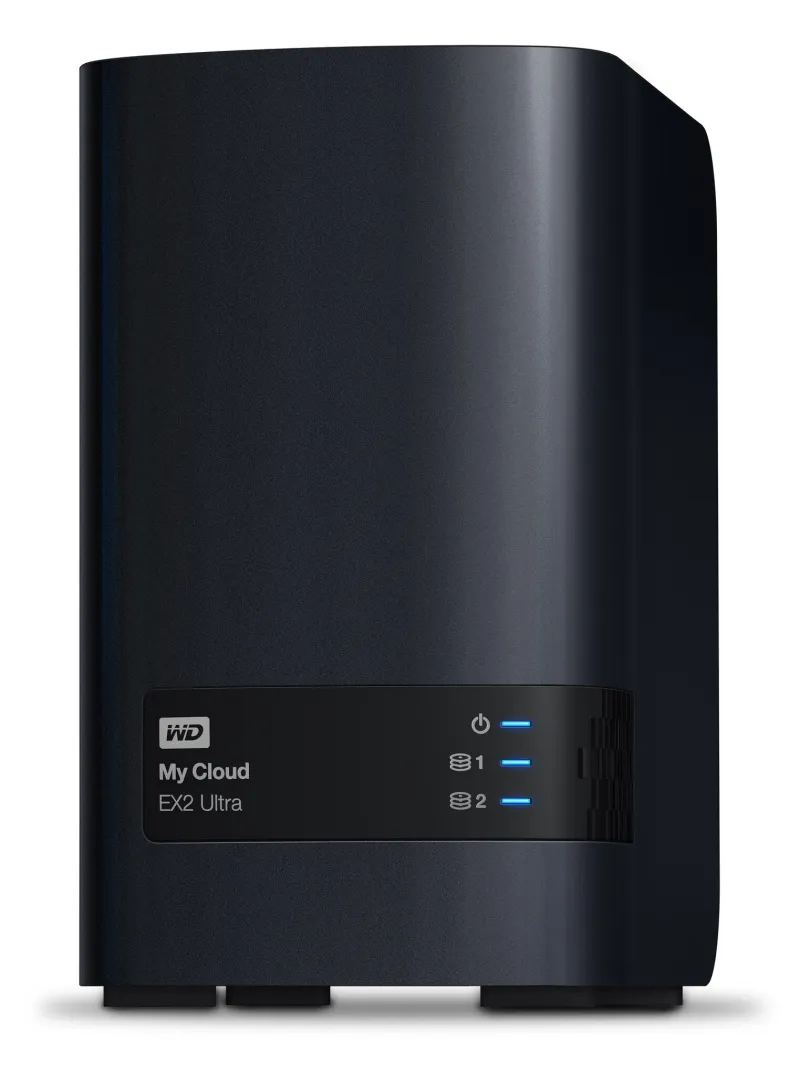

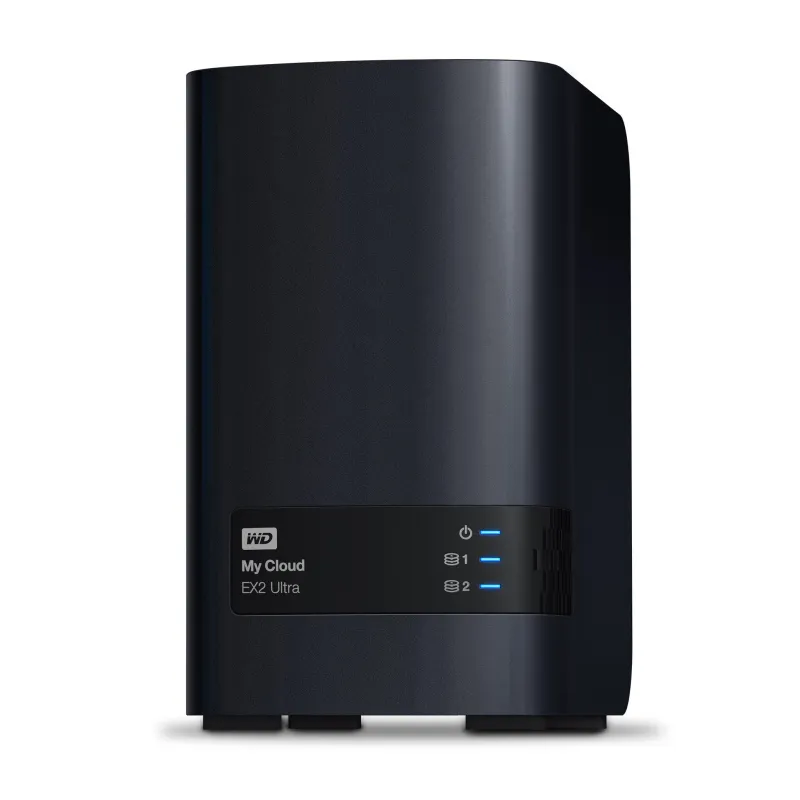

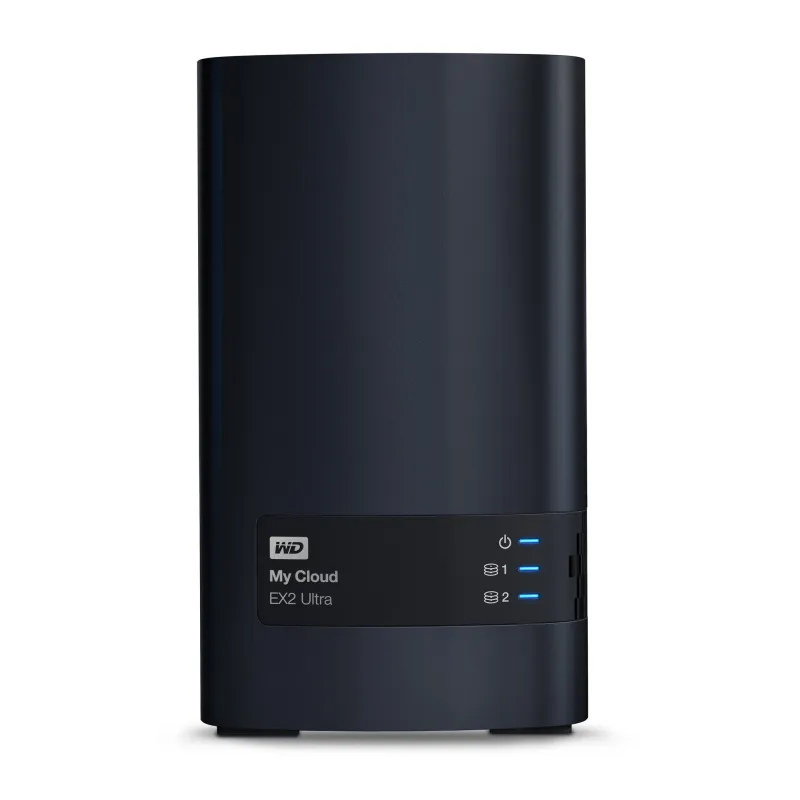

Western Digital My Cloud EX2 Ultra NAS Desktop Marvell Armada 385 1 GB DDR3 8 TB HDD My Cloud OS Black
- Home & Home Office NAS Desktop Black
- My Cloud OS
- Total installed storage capacity: 8 TB Number of storage drives supported: 2 HDD
- Marvell Armada 385 1.3 GHz
- 1 DDR3
- Ethernet LAN Jumbo frames support iSCSI support Wake-on-LAN ready
- Cooling type: Active
- Backup features: Cloud
HIGH-PERFORMANCE STORAGE TO SAVE, STREAM AND SHARE ANYWHERE
Keep your media safe in a single place on this high-performance Network Attached Storage (NAS) device, and access and stream it from anywhere with an internet connection.
Network Storage
Organize your entire media collection, photos and files in one central, network location.
Access from Anywhere
Save, access and stream your content anywhere you have an internet connection with the My Cloud mobile app or MyCloud.com web access.
Robust Data Protection
Multiple RAID and backup options to help protect all your valuable media, photos and important files.
POWERED BY MY CLOUD OS 3
WD’s My Cloud OS 3 comes with a variety of tools and apps to give you complete control of your media. Create a custom folder to share your favorite content. Automatically sync your data between all your computers, so you know your content is always up-to-date. And easily transfer content between your NAS and a supported cloud service like Dropbox, OneDrive, or Google Drive.
Sync Your Content
With WD Sync, you can automatically synchronize your media and files across your computers and your My Cloud device, so you can be confident your content is always up to date and accessible with all your devices.
Auto Backup For All Your Computers
With WD SmartWare Pro backup software, you can customize when and where the content on all the PCs on your network is saved, while Mac users have full access to Apple Time Machine for personalized backup. You can even automatically back up your data to a separate My Cloud NAS device, or any supported cloud service..
Third-party App Support
My Cloud EX2 Ultra supports a full suite of popular applications for a personalized experience. Using apps like Plex, Milestone Arcus Surveillance, Dropbox, WordPress and more, you can customize your NAS for your own specific needs.
Featuring Ultra-reliable WD Red NAS Drives
My Cloud EX2 Ultra comes pre-configured with WD Red hard drives, specifically built for NAS systems to provide improved performance within 24×7 environments. The My Cloud EX2 Ultra is also available in a diskless version, so you can create a custom NAS with compatible hard drives.
VOLUME ENCRYPTION
Equipped with 256 AES volume encryption, it helps to secure your stored files across your entire network. Whether you’re using a PC or a Mac, your content is protected.
MULTIPLE RAID OPTIONS
With the RAID settings of the My Cloud EX2 Ultra, you can customize your system with the configuration that’s best for you. Use RAID 0 for enhanced performance, RAID 1 for mirrored data protection, or a JBOD / spanning structure for non-RAID configurations.
| Storage | |
|---|---|
| Supported file systems | Fat, FAT32, HFS, NTFS, ext2, ext3, ext4 |
| Hot-swap drive bays | Yes |
| RAID levels | 0, 1, JBOD |
| RAID support | Yes |
| Storage drive size | 3.5″ |
| Storage drive interface | Serial ATA III |
| Storage drive capacity | 4 TB |
| Supported storage drive types | HDD |
| Installed storage drive type | HDD |
| Number of storage drives supported | 2 |
| Number of storage drives installed | 2 |
| Total installed storage capacity | 8 TB |
| Storage drives installed | Yes |
| Processor | |
|---|---|
| On-board graphics card model | Not available |
| Processor cores | 2 |
| Processor frequency | 1.3 GHz |
| Processor model | Armada 385 |
| Processor family | Marvell |
| Memory | |
|---|---|
| Internal memory type | DDR3 |
| Internal memory | 1 GB |
| Network | |
|---|---|
| Link aggregation | Yes |
| Wake-on-LAN ready | Yes |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| DHCP client | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Cable lock slot | Yes |
| LED indicators | Status |
| Product colour | Black |
| Cooling type | Active |
| Chassis type | Desktop |
| Performance | |
|---|---|
| Security algorithms | 256-bit AES |
| Number of users | 800 user(s) |
| Backup features | Cloud |
| Backup function | Yes |
| Device class | Home & Home Office |
| Type | NAS |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Operating system installed | My Cloud OS |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power supply location | External |
| Weight & dimensions | |
|---|---|
| Weight | 2.3 kg |
| Height | 171.4 mm |
| Depth | 154.9 mm |
| Width | 99.1 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| External power adapter | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 35 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Other features | |
|---|---|
| Digital Living Network Alliance (DLNA) certified | Yes |
