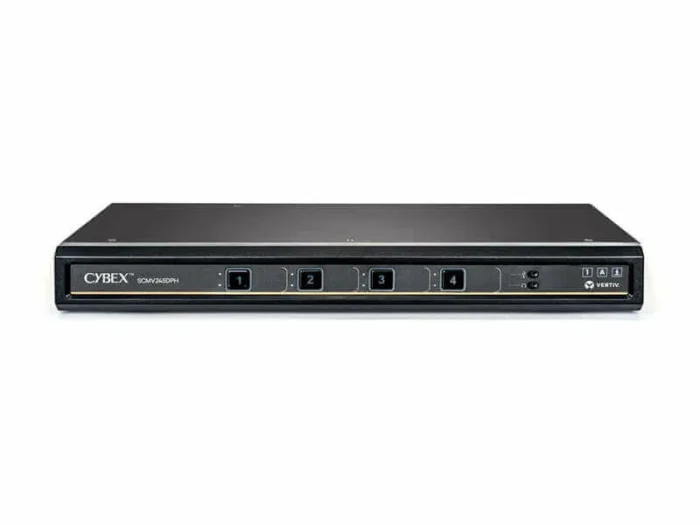

Vertiv SCMV2160DPH-400 KVM switch Black
- Simultaneously view multiple computers on a single display
- Ability to interact with various security classifications on a single screen
- With CNS, keyboard and mouse transitions seamlessly when holding the left CTRL key and moving the cursor across window borders
- Direct interaction with any application through touch screen capabilities
- Smart-card (CAC) or biometric readers for authentication across multiple secure computers
The Vertiv™ Cybex™ Secure MultiViewer KVM continues to provide the KVM solution required in accessing both classified and non-classified data. Through an all new, universal video port connector, the Cybex™ Secure MultiViewer supports a mixture of DP, HDMI, and DVI-D video connections without needing adapters. The Cybex™ Secure MultiViewer can be used in either a single or dual display scenario with up to 16 computers on a single screen and features such as tiling, windowing, and touch screen and features as tile, scale, picture-in-picture (PIP), or custom layout.
| Ports & interfaces |
| USB 2.0 Type-A hub ports quantity |
4 |
| Console DisplayPorts ports quantity |
2 |
| Console ports |
DisplayPort, HDMI, USB A |
| Video port type |
HDMI/DisplayPort |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Performance |
| Video bandwidth |
30 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Design |
| Certification |
FCC Class A, CE, TUV US, TUV Canada, RCM, VCCI |
| Product colour |
Black |
| Power |
| Input voltage |
100 – 240 V |
| Power source |
AC |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 80 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
7 kg |
| Height |
76 mm |
| Depth |
300 mm |
| Width |
442 mm |
