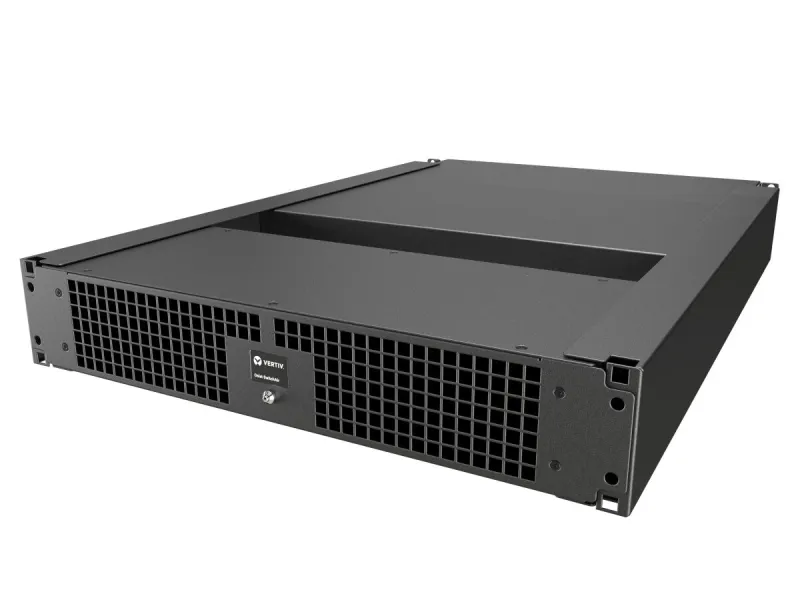

Vertiv SA2-004 network equipment chassis 2U Black
- Reduces the chance of network switches overheating by directing cool air to device intakes
- Reduces the likelihood of premature equipment failure due to high intake temperatures
- Improves equipment efficiency by providing network equipment with the same cold aisle temperature as other devices in the rack
- Decreases wrap around hot airflow from the hot aisle to the cold aisle due to missing blanking panels

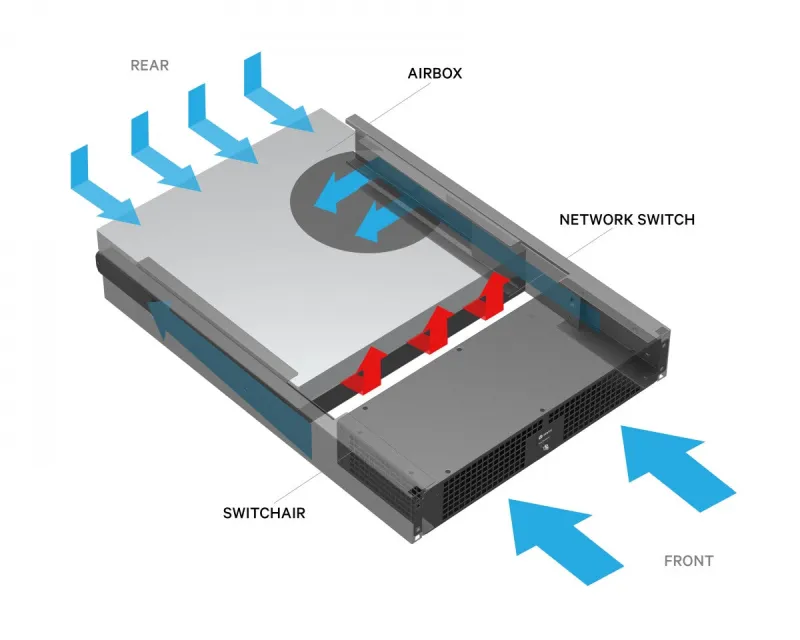

Network switches, load balancers, and routers typically sit at the top and back portion of the rack. This placement makes it difficult for cold air to travel from the front of the rack to the air intakes of the network switch equipment, increasing chances of failure over time. SwitchAir helps prevent failure by channeling cool air from the front of the rack to the air intakes regardless of where the equipment is mounted.
| Technical details |
| Product colour |
Black |
| Compliance certificates |
RoHS |
| Maximum airflow |
94 cfm |
| Cooling type |
Active |
| Rack capacity |
2U |
| Rack mounting |
Yes |
| Frame type |
Open frame |
| Certificates |
| Certification |
CE, FCC Part 15 Class A Conformance, UL & c-UL Listed 60950 |
| Power |
| AC input voltage |
90 – 264 V |
| AC input frequency |
50 – 60 Hz |
| Input current |
0.5 A |
| Weight & dimensions |
| Weight |
6.8 kg |
| Width |
432 mm |
| Depth |
178 mm |
| Height |
87 mm |
| Packaging data |
| Manual |
Yes |
| Cables included |
AC |
