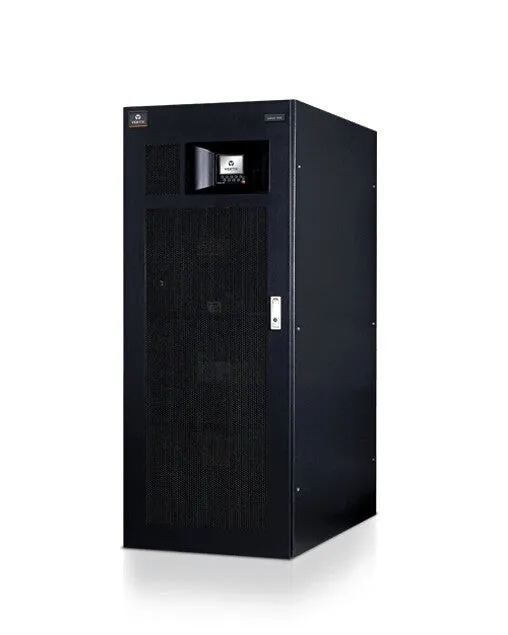

Vertiv Liebert NXC 60kVA 10MIN autonomy with 10y batteries
- Reliable and flexible secure power in a fully integrated package solution
- Double conversion efficiency up to 94.8%
- ECO mode efficiency up to 98%
- 0.9 output power factor
- Input current total harmonic distortion correction (THDi) < 5%
- Integrated manual bypass and input and output breakers/switches
Liebert® NXC offers reliable and flexible secure power in a fully integrated package solution. Its highly efficient transformer-free double conversion technology delivers installation and running cost savings. The Liebert® NXC range has been designed to optimize specific rating requirements, thus enhancing flexibility and installation space needs.
| Features |
| Noise level |
58 dB |
| Input current Total Harmonic Distortion (THD) |
5% |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Overload capacity (1 minute) |
150% |
| Overload capacity (5 minute) |
125% |
| Input power factor |
0.99 |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
415 V |
| Input operation voltage (min) |
380 V |
| Output power |
60000 W |
| Output power capacity |
60 kVA |
| UPS topology |
Double-conversion (Online) |
| Design |
| International Protection (IP) code |
IP20 |
| Display type |
LCD |
| Product colour |
Black |
| Form factor |
Tower |
| General |
| Product family |
Liebert |
| Certificates |
| Certification |
EN/IEC/AS 62040-1, EN/IEC/AS 62040-2, VFI-SS-111 |
| Weight & dimensions |
| Height |
1600 mm |
| Depth |
850 mm |
| Width |
600 mm |
| Other features |
| Bypass |
Bypass voltage tolerance (%) selectable from +20 to -40Bypass frequency tolerance (%) ±20 (±10 selectable) |
