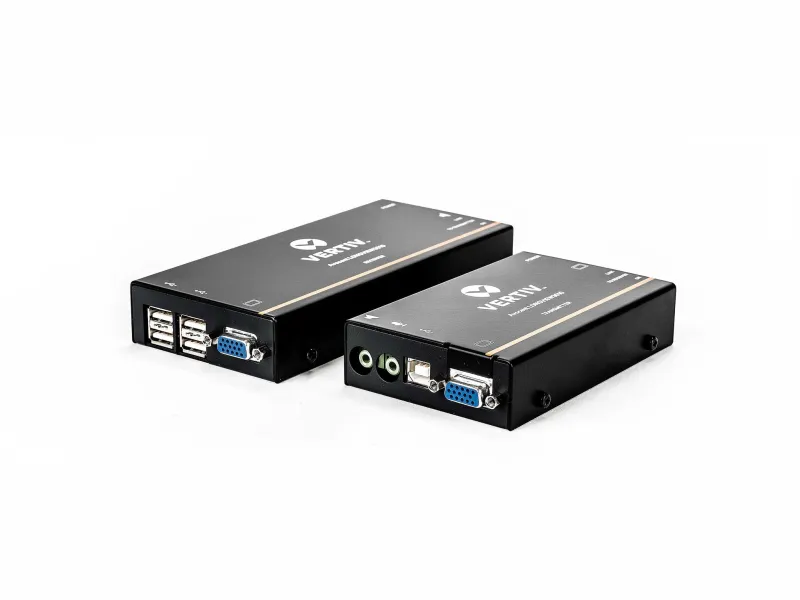

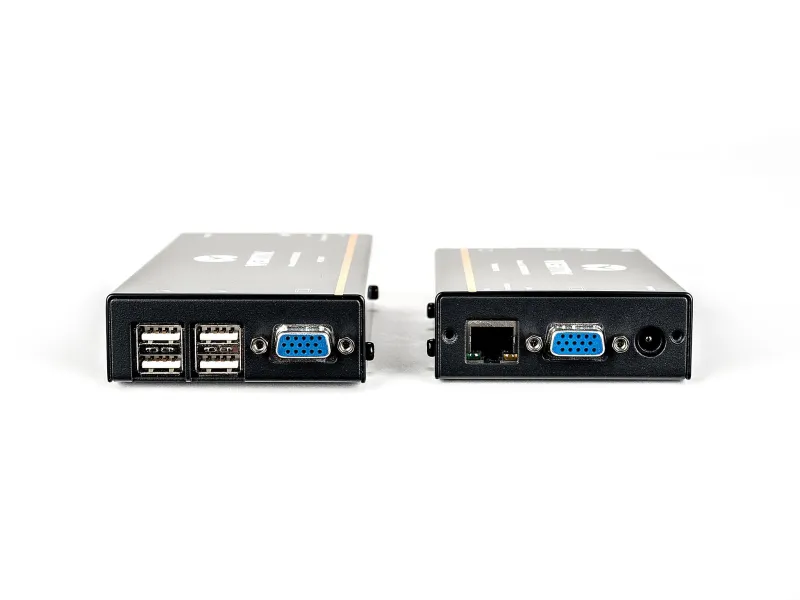

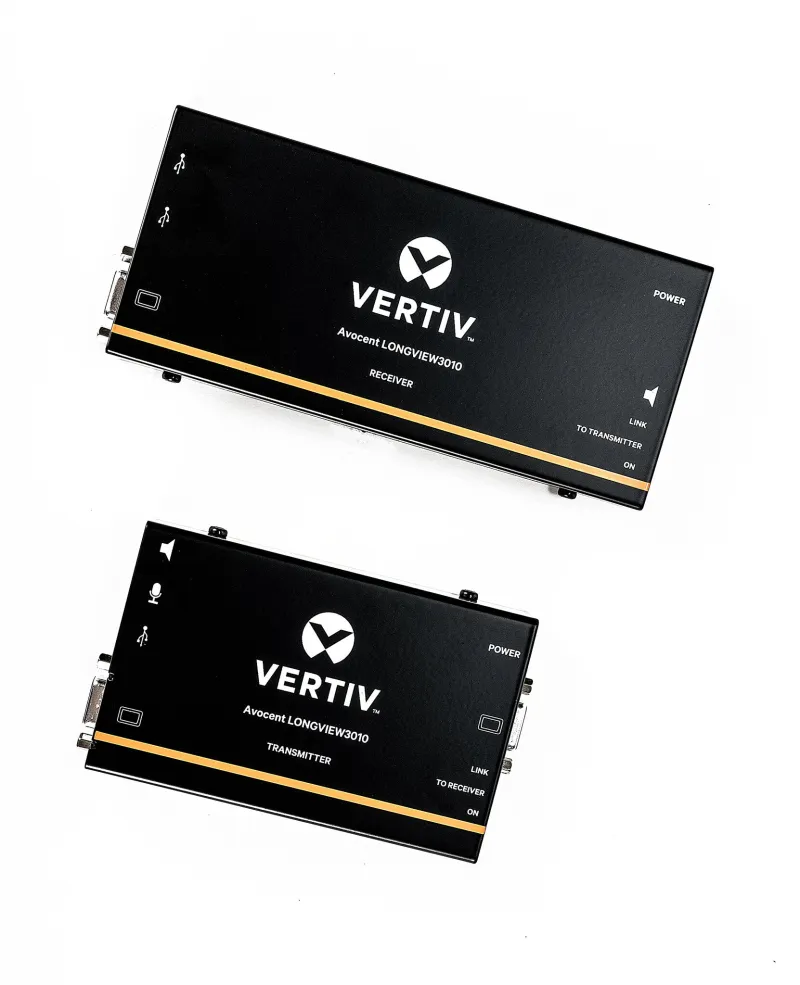

Vertiv Avocent LV3010P-202 KVM extender Transmitter & receiver
- Precision video – VGA resolutions of 1920 x 1200 are achievable at up to 300 meters (1000ft)
- Local feed through port – A local pass through port is provided for audio and video so a local console can be used
- USB powered transmitter – The transmitter is powered via its USB port to reduce the need for external supplies. There is an option for an external power supply if the USB port has insufficient power
- Emulated two page DDC EDID – This extender supports full two page DDC EDID. Some high performance video cards require the two page data or they will not deliver optimal performance
- Stereo CD Quality Stereo channel 16 bit (sampled at 44.1kHz) is available to transfer audio from local to remote for line out
- Rack options – Both transmitter and receiver units can be used stand-alone or up to 16
Avocent LV 3010P KVM Extender\nAvocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.\nThe LV3000 next generation USB, video and audio extenders delivers sharp, bright and high resolution video images and high quality audio for single and multi screen desktops at distances up to 300 m (1000 ft) over a single or multiple CATx cables. The LV3000 series has been designed to provide industry-leading video clarity, compatibility and high rack densities.
| Features | |
|---|---|
| Audio support | Yes |
| Certification | CE, FCC class A, UL |
| Plug and Play | Yes |
| Easy to install | Yes |
| Material | Metal |
| Product colour | Blue |
| Maximum analog resolution | 1920 x 1200 pixels |
| Rack mounting | No |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7 |
| Maximum transfer distance | 300 m |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Number of displays supported | 1 |
| Transmitter local video port type | VGA |
| Transmitter local video port | Yes |
| Transmitter video port type | VGA |
| Receiver | |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
| Power | |
|---|---|
| Power consumption (receiver) (max) | 12 W |
| Power consumption (transmitter) (max) | 12 W |
| AC adapter output voltage | 5 V |
| Input current | 100 – 240 A |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Weight & dimensions | |
|---|---|
| Receiver weight | 350 g |
| Receiver height | 2.6 cm |
| Receiver depth | 7.5 cm |
| Receiver width | 12.2 cm |
| Transmitter weight | 430 g |
| Transmitter height | 2.6 cm |
| Transmitter depth | 7.5 cm |
| Transmitter width | 16.2 cm |
| Packaging content | |
|---|---|
| Included power plug types | EU |
| Mounting bracket(s) included | No |
| Quick installation guide | Yes |
| Cables included | AC, Audio (3.5mm), USB, VGA |
| AC adapter included | Yes |
| General | |
|---|---|
| Product family | Avocent |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Technical details | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
