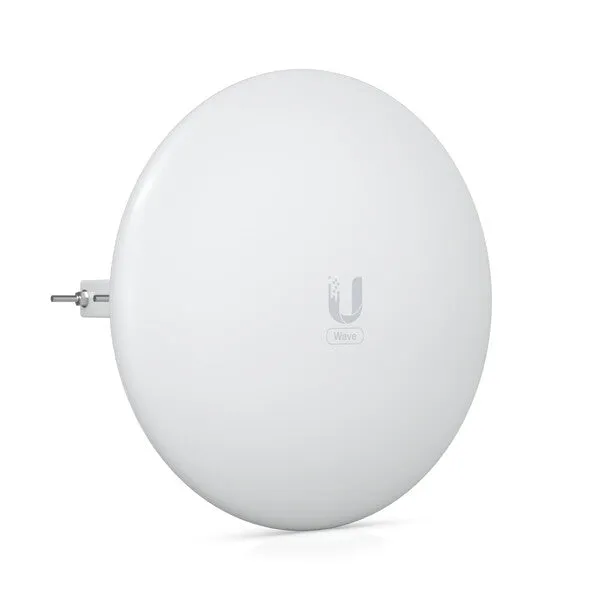

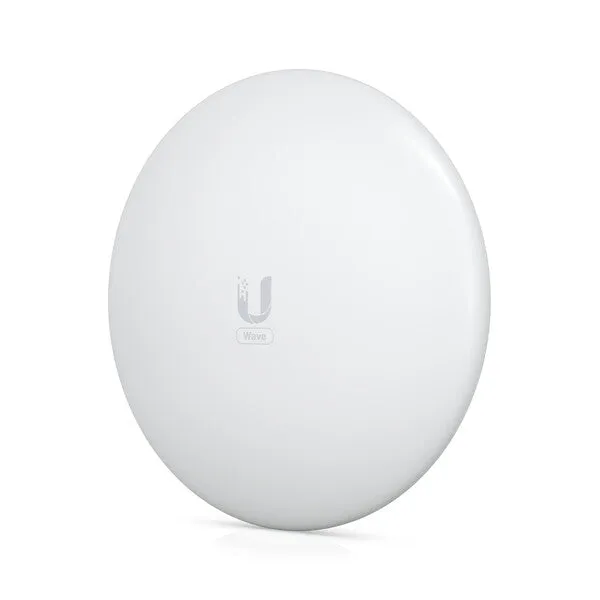

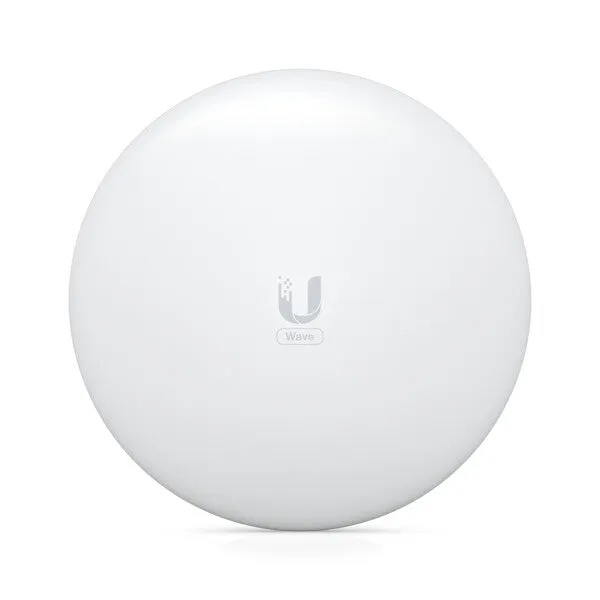

Ubiquiti WAVE-LR bridge/repeater White
- 8000 m
- Wi-Fi Single-band (60 GHz)
- IPX6
- 46 dBi
- White
60 GHz PtMP station powered by Wave Technology.
Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
Data transmission |
Maximum transfer distance |
8000 m |
Antenna |
Antenna gain level (max) |
46 dBi |
Wireless LAN features |
Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
Wi-Fi band |
Single-band (60 GHz) |
Wi-Fi |
Yes |
Network |
Cabling technology |
10/100/1000Base-T(X) |
Ethernet LAN data rates |
10,100,1000 Mbit/s |
Ports & interfaces |
Ethernet LAN (RJ-45) ports |
1 |
Security |
Security algorithms |
AES, WPA2-PSK |
Management features |
Web-based management |
Yes |
Features |
Internal memory |
512 MB |
Reset button |
Yes |
International Protection (IP) code |
IPX6 |
LED indicators |
Yes |
Product colour |
White |
Rack mounting |
No |
Mounting type |
Pole |
Power |
Power over Ethernet (PoE) |
Yes |
Power consumption (max) |
18 W |
Operational conditions |
Operating relative humidity (H-H) |
5 – 95% |
Operating temperature (T-T) |
-40 – 60 °C |
Certificates |
Certification |
FCC, ICE |
Compliance certificates |
CE |
Weight & dimensions |
Weight |
2.59 kg |
Height |
424.4 mm |
Depth |
166.2 mm |
Width |
424.4 mm |
Sustainability |
Sustainability compliance |
Yes |
Packaging data |
Quantity per pack |
1 pc(s) |
