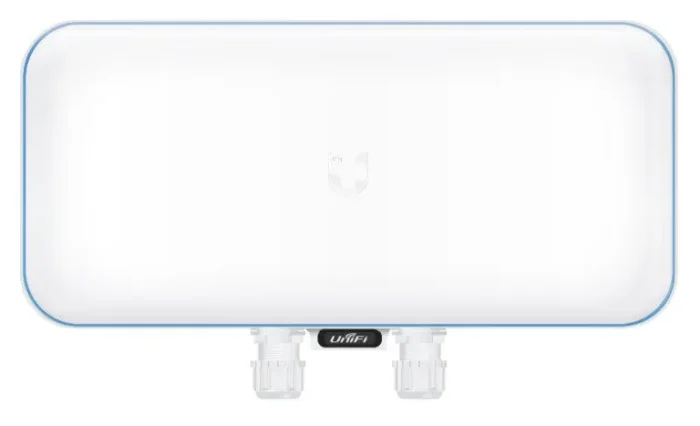

Ubiquiti Unifi UWB XG 1733 Mbit/s White Power over Ethernet (PoE)
- 5 GHz
- Maximum data transfer rate: 1733 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
- AES, WEP, WPA-Enterprise, WPA-PSK, WPA2
- Power over Ethernet (PoE)
Scalable Enterprise Wi-Fi Management
The UniFi® Ecosystem enables the system integrator to effectively and efficiently create wireless network designs of any size, from small to large, with the potential for unlimited scalability.
The built-in, dedicated security and monitoring radio of the UniFi WiFi BaseStation XG provides visibility into site performance, channel planning, and local interferers, allowing the integrator to properly evaluate performance and quickly respond to changing interference and security threat landscapes.
Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
| Features |
| Quality of Service (QoS) support |
Yes |
| Virtual LAN features |
Tagged VLAN |
| VLAN support |
Yes |
| Number of WLAN connections (max) |
1500 |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Ethernet LAN data rates |
1000,10000 Mbit/s |
| Maximum data transfer rate |
1733 Mbit/s |
| 5 GHz |
Yes |
| 2.4 GHz |
No |
| Security |
| Security algorithms |
AES, WEP, WPA-Enterprise, WPA-PSK, WPA2 |
| Ports & interfaces |
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (max) |
31 W |
| AC input voltage |
57 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| LED indicators |
Yes |
| Reset button |
Yes |
| International Protection (IP) code |
IP67 |
| Product colour |
White |
| Placement |
Pole |
| Antenna |
| Antenna gain level (max) |
15 dBi |
| Weight & dimensions |
| Weight |
3.2 kg |
| Height |
94.3 mm |
| Width |
471.1 mm |
| Packaging content |
| Mounting kit |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-10 – 70 °C |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
