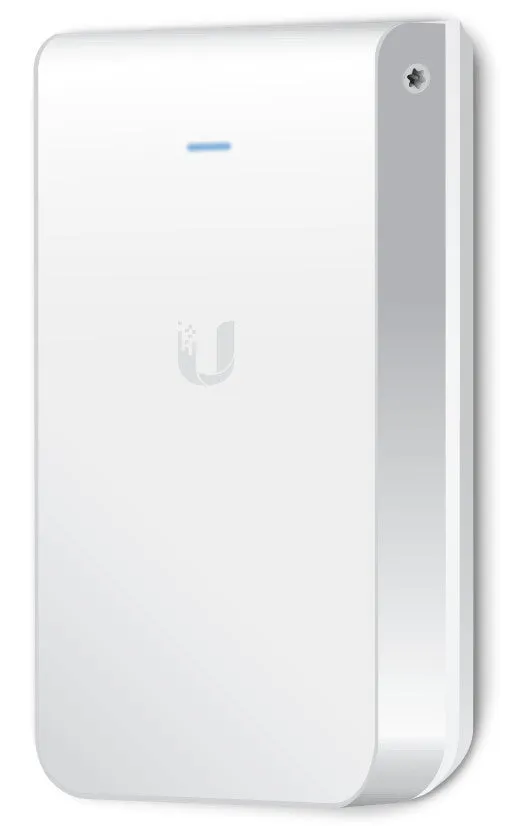

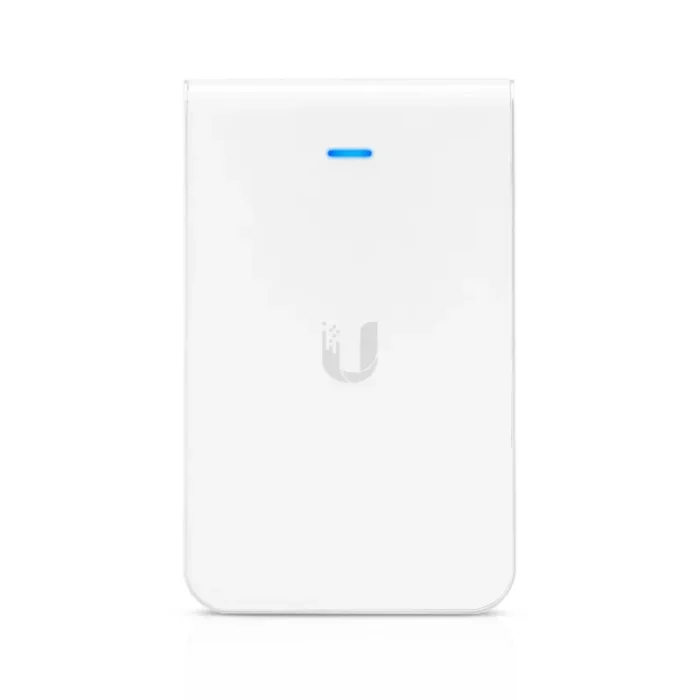

Ubiquiti UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE)
- Simultaneous Dual-Band 4×4 Multi-User MIMO
- Four-Stream 802.11ac Wave 2 Technology
- 802.3af/802.3at PoE Compatibility
- Customizable with various Skins
Integrated Gigabit Switch
Four ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.
Superior Processing Power
The UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.
Power over Ethernet (PoE) Standard
The UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.
Quick and Simple Installation

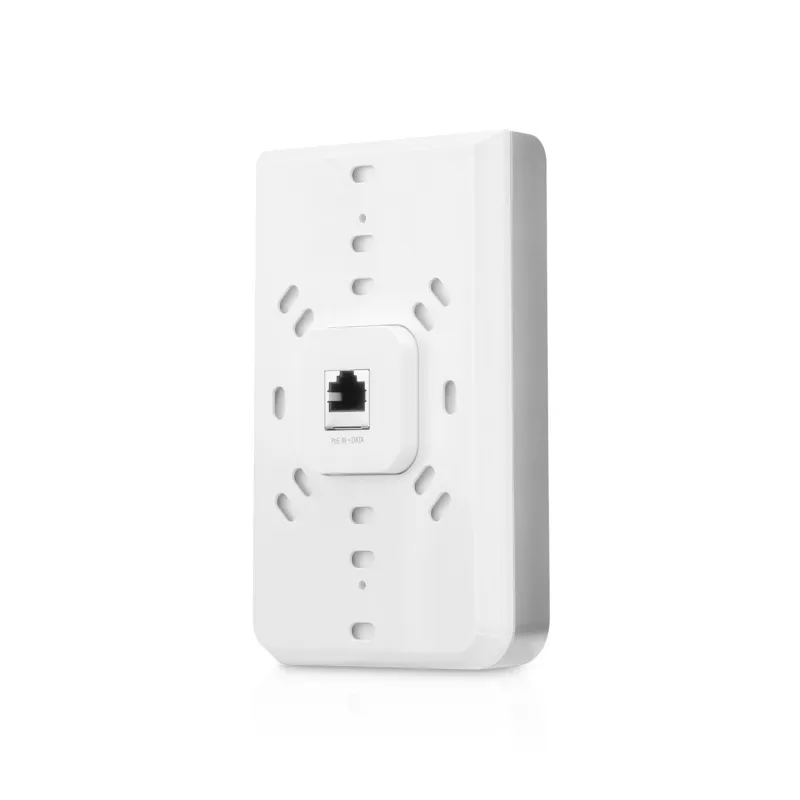

The UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.
Customizable with Various Skins
Optional skins (sold separately) allow the UniFi IW HD AP to discreetly blend into its setting.
UniFi Controller
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
| Features | |
|---|---|
| Transmitting power | 26 dBmW |
| Quality of Service (QoS) support | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Airtime Fairness (ATF) | Yes |
| Band steering | Yes |
| Wireless isolation | Yes |
| Rate limiting | Yes |
| Virtual LAN features | Tagged VLAN |
| VLAN support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Number of users | 200 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11w, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at |
| Frequency band | 2.4/5 GHz |
| Throughput data rate | 940 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Maximum data transfer rate | 1733 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-EAP, WPA2-TKIP |
| Protocols | |
|---|---|
| Management protocols | 802.1Q, QoS, WMM |
| Management features | |
|---|---|
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| Internal RJ-45 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| Power | |
|---|---|
| Power consumption (max) | 23 W |
| AC input voltage | 44 – 57 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Internal | No |
| LED indicators | Yes |
| Reset button | Yes |
| Product colour | White |
| Placement | Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Antennas quantity | 4 |
| Antenna features | Integrated antenna |
| Certificates | |
|---|---|
| Certification | CE, FCC, IC |
| Weight & dimensions | |
|---|---|
| Weight | 210 g |
| Height | 139.7 mm |
| Depth | 25.8 mm |
| Width | 86.7 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
