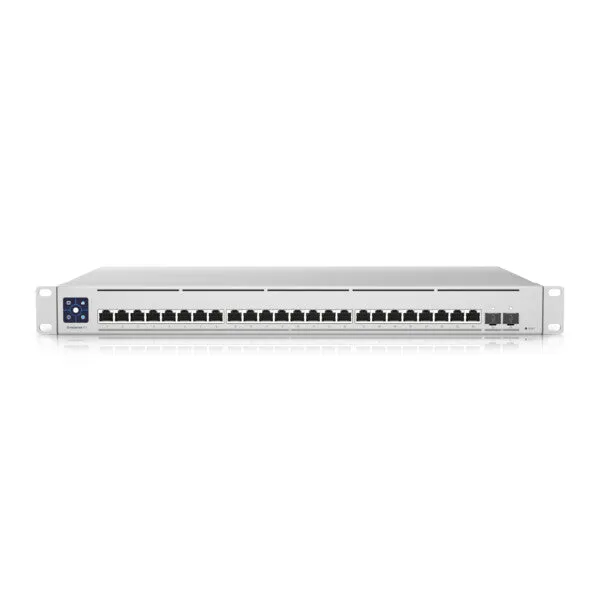

Ubiquiti UniFi Enterprise XG 24 Managed L3 10G Ethernet (100/1000/10000) Stainless steel
- (1) 1.3″ LCM color touchscreen with AR switch management
- (24) 10GbE RJ45 ports
- (2) 25G SFP28 ports
- (1) USP RPS DC input
- Layer 3 switching features
- Single-row RJ45 port layout for easy patch panel cable management
Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.
The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
| Management features |
| Web-based management |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP28 ports quantity |
2 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Ethernet LAN data rates |
10,1000,2500,5000,10000 Mbit/s |
| 10G support |
Yes |
| Data transmission |
| Forwarding rate |
431.52 Mpps |
| Switching capacity |
580 Gbit/s |
| Design |
| LED indicators |
Activity, Link |
| Reset button |
Yes |
| Housing material |
Steel |
| Product colour |
Stainless steel |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
100 W |
| Input current |
8.7 A |
| DC input voltage |
11.5 V |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
No |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 95% |
| Operating temperature (T-T) |
-5 – 40 °C |
| Weight & dimensions |
| Weight |
4.47 kg |
| Height |
44 mm |
| Depth |
285 mm |
| Width |
442 mm |
| Packaging content |
| Manual |
Yes |
| General |
| Product family |
UniFi |
| Certificates |
| Compliance certificates |
CE |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
