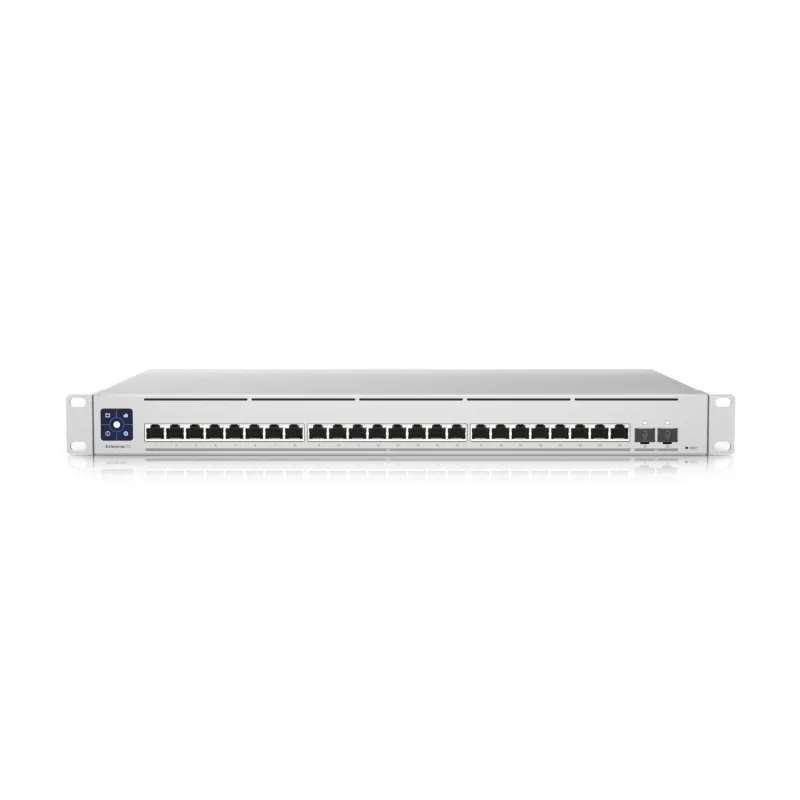

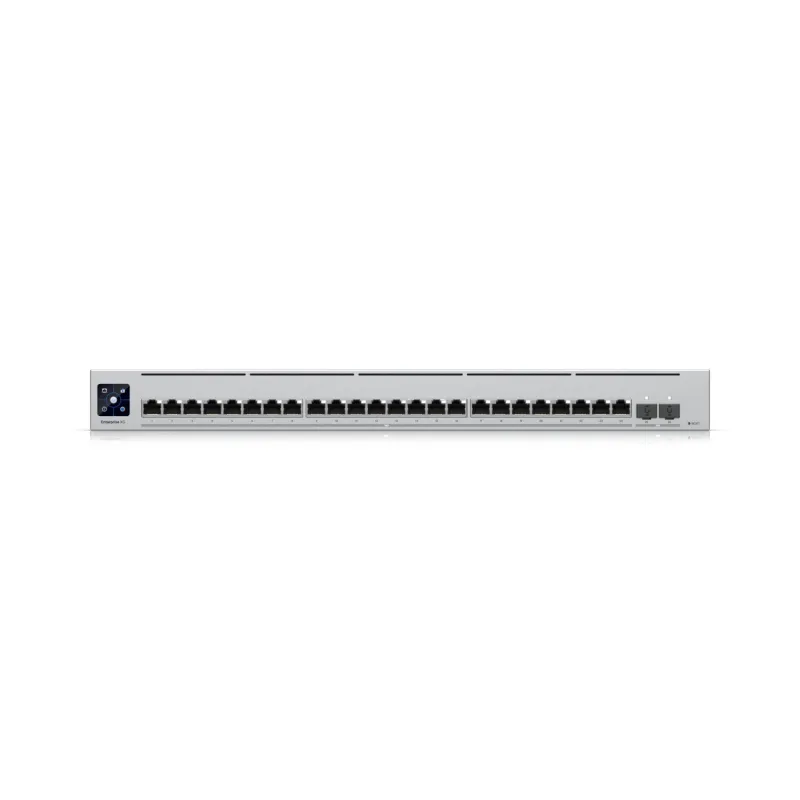

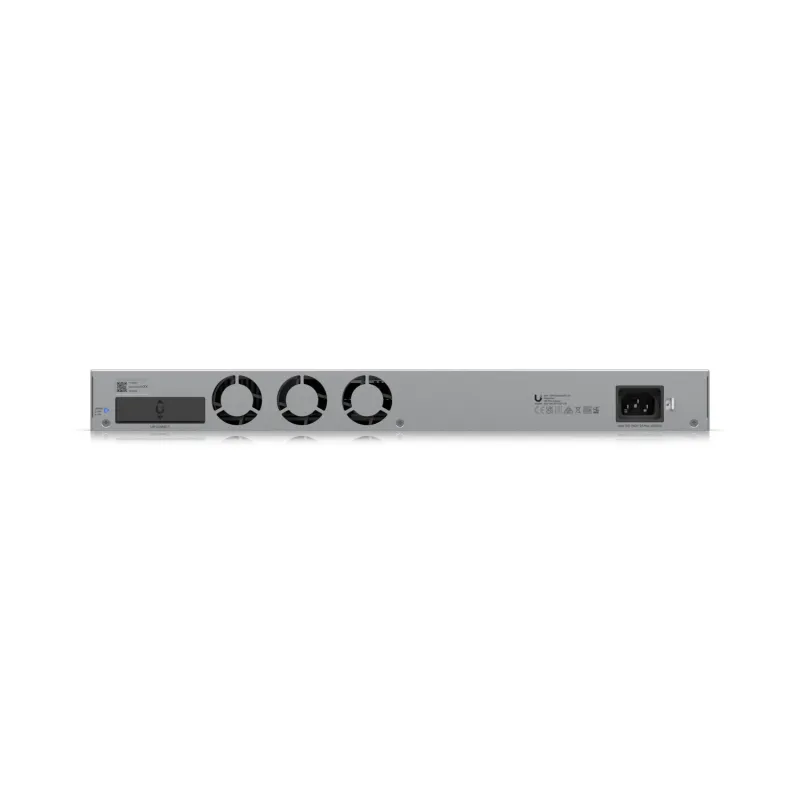

Ubiquiti EnterpriseXG 24 Managed L3 10G Ethernet (100/1000/10000) Grey
- (24) 10 GbE ports
- (2) 25G SFP28 ports
- DC power backup-ready
- Layer 3 switching
A 24-port, Layer 3 switch capable of supporting high-capacity 10 GbE RJ45 and 25G SFP28 connections.
| Management features |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
AC-in jack |
| SFP28 ports quantity |
2 |
| 10G Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Data transmission |
| Forwarding rate |
431.52 Mpps |
| Switching capacity |
580 Gbit/s |
| Design |
| LED indicators |
LAN, System |
| Reset button |
Yes |
| Housing material |
Steel |
| Product colour |
Grey |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
100 W |
| Input current |
2 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 95% |
| Operating temperature (T-T) |
-5 – 40 °C |
| Weight & dimensions |
| Weight |
4.5 kg |
| Height |
44 mm |
| Depth |
285 mm |
| Width |
442 mm |
| Packaging content |
| Manual |
Yes |
| Certificates |
| Certification |
CE, FCC, IC |
