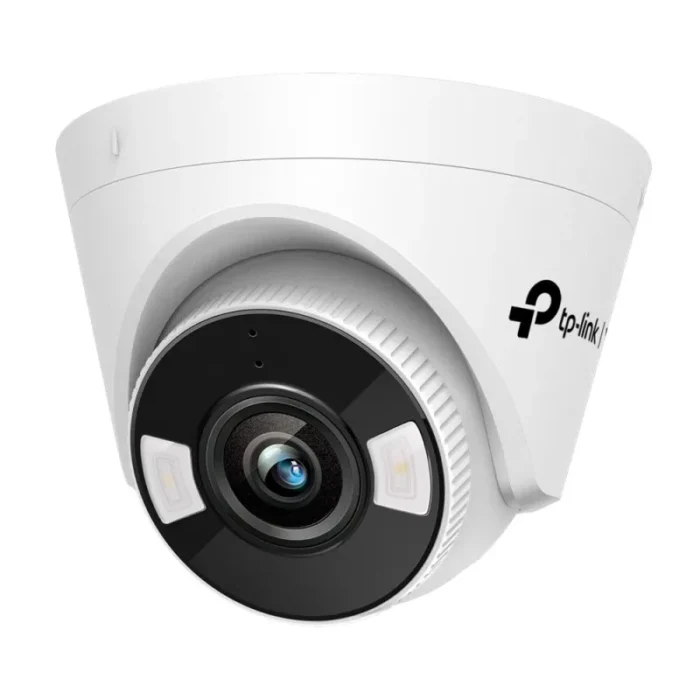

TP-Link VIGI C440(2.8mm) Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling
- Indoor & outdoor IP security camera
- CMOS 25.4 / 3 mm (1 / 3″) 4 MP 2560 x 1440 pixels
- Wired Ethernet LAN
- Night vision 30 m IR
- Turret Ceiling
- White
All The Colors, All The Time

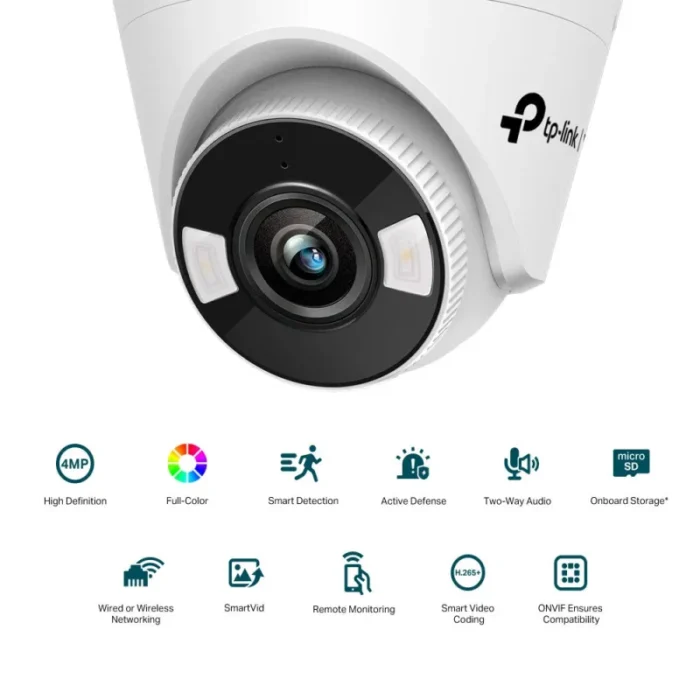

4MP Full-Color Turret Network Camera
Plug & Play with
One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
Motion Detection
Get instant notifications when your camera detects motion.
Area Intrusion
Set customized activity zones around key areas for more focused monitoring.
Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera Tampering
Receive alerts when someone obstructs the camera.
Active Defense
Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.
Every Event is Under Your Control.
VIGI cameras intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio.
Never miss a detail.
SmartVid-Smart Video Enhancement
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot.
Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Performance | |
|---|---|
| Certification | RCM, BSMI, VCCI |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| Housing material | Plastic |
| Product colour | White |
| Mounting type | Ceiling |
| Form factor | Turret |
| Camera | |
|---|---|
| Pan range | 0 – 360° |
| Tilt angle range | 0 – 85° |
| Lens viewing angle, diagonal | 122° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, horizontal | 102° |
| Angle of rotation | 360° |
| Minimum illumination | 0 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Identify distance | 6 m |
| Maximum aperture number | 1.6 |
| Focal length range | 2.8 mm |
| Recognize distance | 13 m |
| Observe distance | 27 m |
| Detect distance | 64 m |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
|---|---|
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Bit rate | 64 Kbps – 4 Mbps |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Privacy masking | Yes |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Total megapixels | 4 MP |
| Maximum resolution | 2560 x 1440 pixels |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Audio system | 2-way |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Streaming method | Multicast |
| Number of users | 21 user(s) |
| Supported network protocols | ONVIF, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Human detection, Intrusion |
| Mirror | Yes |
| Password reset via email | Yes |
| Digest authentication | Yes |
| Password protection | Yes |
| Management features | |
|---|---|
| Reset button | Yes |
| Power | |
|---|---|
| DC output voltage | 12 |
| Power consumption (max) | 5.5 W |
| Power source type | DC, PoE |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 – 60 °C |
| General | |
|---|---|
| Product family | VIGI |
| Weight & dimensions | |
|---|---|
| Diameter | 12.3 cm |
| Height | 84 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Packaging data | |
|---|---|
| Package weight | 400 g |
| Package height | 116 mm |
| Package depth | 163 mm |
| Package width | 163 mm |
| Packaging content | |
|---|---|
| Mounting template | Yes |
| Anchors included | Yes |
| Manual | Yes |
| Screws included | Yes |
| Number of cameras | 1 |
