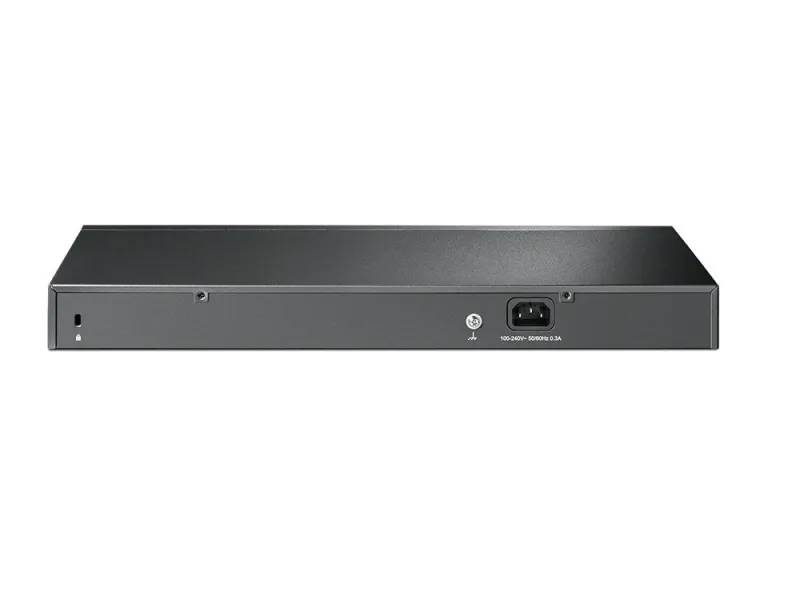

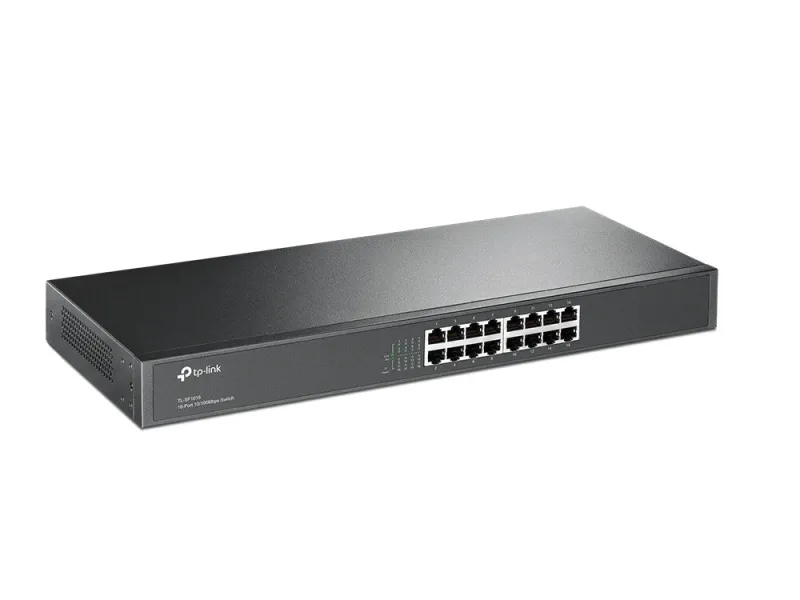

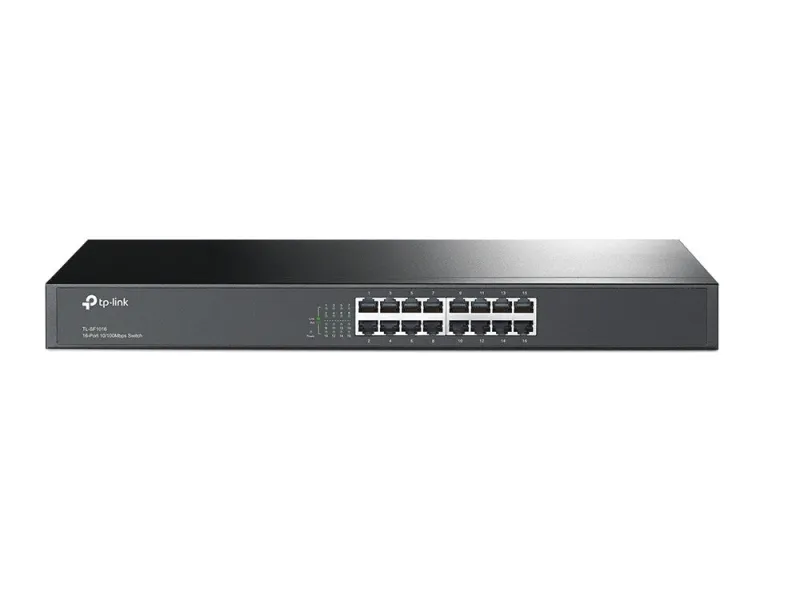

TP-Link TL-SF1016 Unmanaged Fast Ethernet (10/100) 1U Black
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity: 16
- 10BASE-T, 1000BASE-TX
- MAC address table: 8000 entries Switching capacity: 3.2 Gbit/s
- 1U Rack mounting
- AC Power supply included
What This Product Does
The 16-Port Fast Ethernet Switch TL-SF1016 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SF1016 provides 16 10/100Mbps ports. The TL-SF1016 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Superior Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016 forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly.
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| Flow control support |
Yes |
| Auto-negotiation |
Yes |
| Half duplex |
Yes |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 1000BASE-TX |
| 10G support |
No |
| Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
2 MB |
| Jumbo frames |
2000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Switching capacity |
3.2 Gbit/s |
| MAC address table |
8000 entries |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Stackable |
No |
| Rack mounting |
Yes |
| Power |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
7.03 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging data |
| Package weight |
2.28 kg |
| Package height |
80 mm |
| Package depth |
250 mm |
| Package width |
528 mm |
| Certificates |
| Certification |
FCC, CE, RoHS |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
