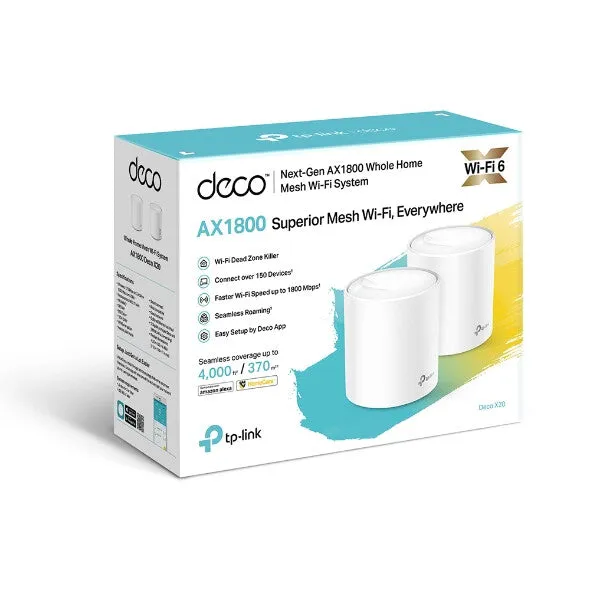

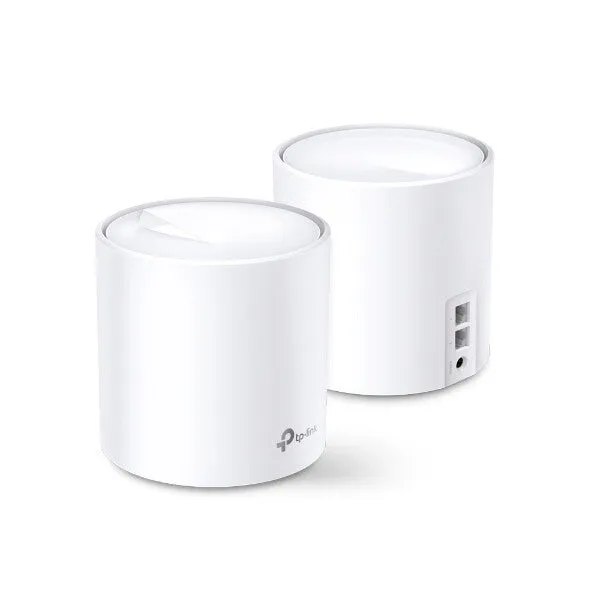

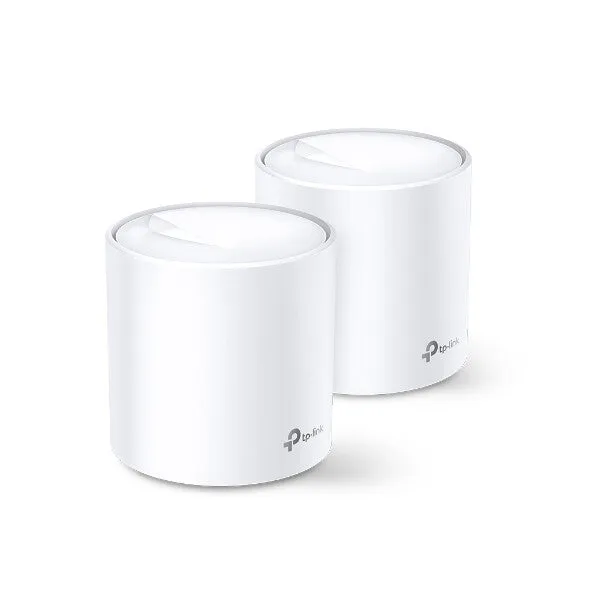

TP-Link AX1800 Whole Home Mesh Wi-Fi 6 System, 2-Pack
- Faster Connections: Wi-Fi 6 speeds up to 1,800 Mbps—1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
- Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices
- Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6
- Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home
- Total Security: WPA3 encryption and TP-Link HomeCareTM provide personalized features, including Parental Controls, Antivirus, and Quality of Service (QoS) to ensure a safer online experience
- Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step
Meet the Next-Gen Mesh Wi-Fi
Next-Gen AX1800 Whole Home Mesh Wi-Fi 6 System
Advanced Mesh Powered by Wi-Fi 6
Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
Wi-Fi Dead Zone Killer
With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole home Wi-Fi up to 200 sqm (1-pack). Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
True Seamless Roaming for Greater Experiences
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
More Connections for Immersive Streaming
Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanks to Wi-Fi 6 technology△. Deco X20 is tested to connect over 150 devices without dragging down performance.
Faster Wi-Fi 6 Speed = No Wait
The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps—ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.
Greatly Red uced Lag, More Fun
Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow’s hyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time.
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
Wi-Fi Made Easy
Easy Management
Manage your Wi-Fi at home or away on the Deco app, including seeing all connected devices, prioritizing your own, setting up a guest network, and more.
Voice Control
Pair with Alexa to control Deco X20 with simple voice commands. Enjoy the convenient life.
All Decos Work Together
Deco X20 is compatible with every other Deco model to form a mesh network. Expand mesh Wi-Fi coverage anytime by simply adding more Decos.
| Design | |
|---|---|
| Reset button | Yes |
| Transmit power | FCC: |
| Antennas quantity | 4 |
| Antenna type | Internal |
| LED indicators | Power |
| Product type | Mesh system |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| Guest access | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3 |
| Number of guest networks (5 GHz) | 1 |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| WLAN data transfer rate (second band) | 574 Mbit/s |
| WLAN data transfer rate (first band) | 1201 Mbit/s |
| WLAN data transfer rate (max) | 1775 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| Parental control | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Firewall security | SPI |
| Quality of Service (QoS) support | Yes |
| Processor cores | 4 |
| Built-in processor | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| AC adapter output current | 1 A |
| AC adapter output voltage | 12 V |
| AC adapter input current | 0.4 A |
| AC input frequency | 50-60 Hz |
| AC input voltage | 100-240 V |
| Certificates | |
|---|---|
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Compliance certificates | CE, RoHS |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 114 mm |
| Depth | 110 mm |
| Width | 110 mm |
| Packaging content | |
|---|---|
| Ethernet cable | Yes |
| Number of units included | 2 pc(s) |
| AC adapter included | Yes |
| Number of products included | 2 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 1.66 kg |
| Package height | 125 mm |
| Package depth | 240 mm |
| Package width | 314 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
