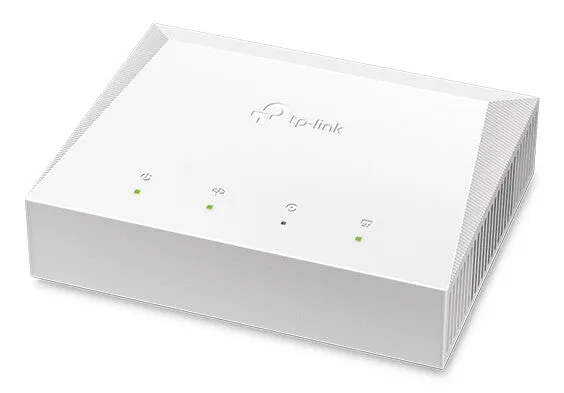

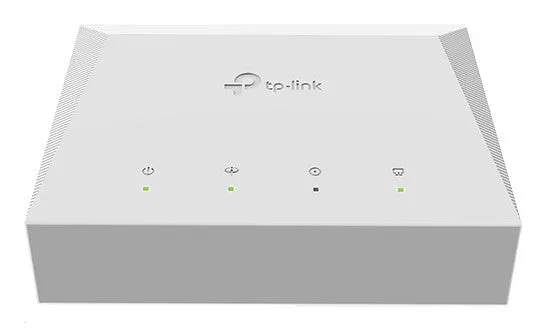

TP-Link 1-Port Gigabit XPON Terminal
- Gigabit Internet Access: One PON port and one gigabit LAN port provide fast transfer speeds*
- XPON Support: EPON + GPON dual mode offers greater flexibilty for fiber internet access
- Durability: Intelligent power-saving method
- Remote Management: Supports the OMCI (ONU Management Control Interface) protocol for centralized configuration and management
1-Port
Gigabit XPON Terminal
High-Speed GPON Service
Compliant with the ITU-T G.984 GPON standards, XZ000-G7 supports maximum data rates of up
to 2.488 Gbps downstream, 1.244 Gbps upstream.
Make
Fiber-to-the-Home Yours
TP-Link’s XZ000-G7 is a GPON (Gigabit Passive Optical Network) + EPON (Ethernet Passive Optical Network) combo terminal, ideal for Fiber-to-the-Home solution.
Gigabit Internet Access

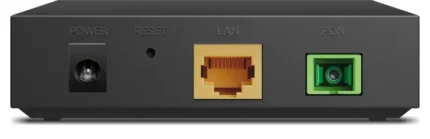

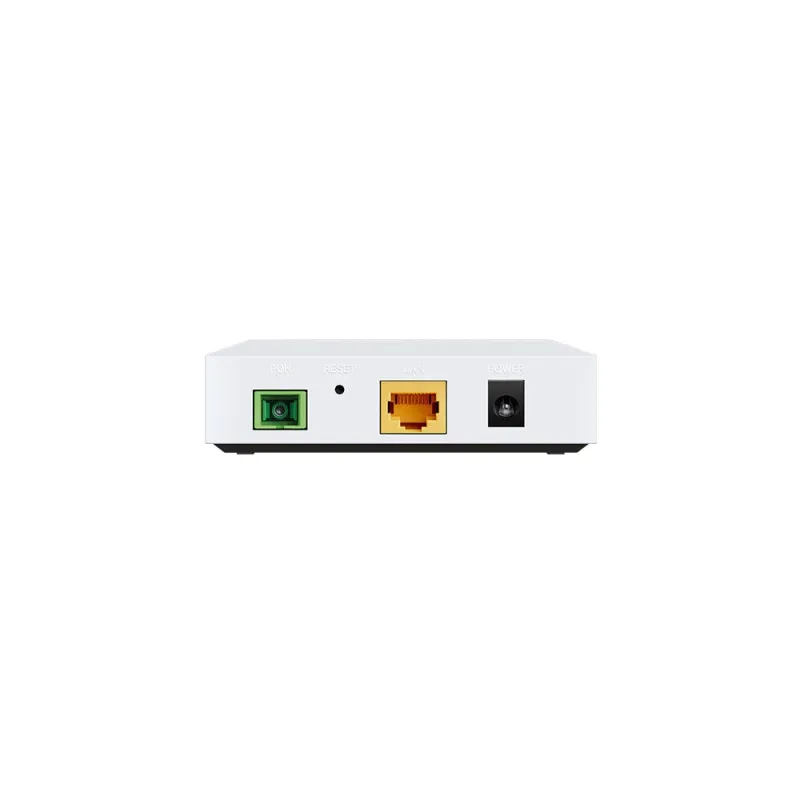

One PON port and one Gigabit Ethernet port, XZ000-G7 provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Ease of Use
Quick and hassle-free installation
| Design |
| LED indicators |
Yes |
| Product colour |
White |
| Product type |
Optical network terminal (ONT) |
| Network |
| Transmission distance (max) |
20 km |
| Downstream data rate |
2488 Mbit/s |
| Upstream data rate |
1244 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| ITU standards |
G.984.1, G.984.3, G.984.4 |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3u |
| Management features |
| Reset button |
Yes |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber optic connector |
SC/APC |
| Fiber ports quantity |
1 |
| Power |
| Output current |
0.6 A |
| Output voltage |
9 V |
| Sustainability |
| Sustainability compliance |
Yes |
| Certificates |
| Compliance certificates |
RoHS |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
29.3 mm |
| Depth |
75 mm |
| Width |
95 mm |
| Packaging content |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
