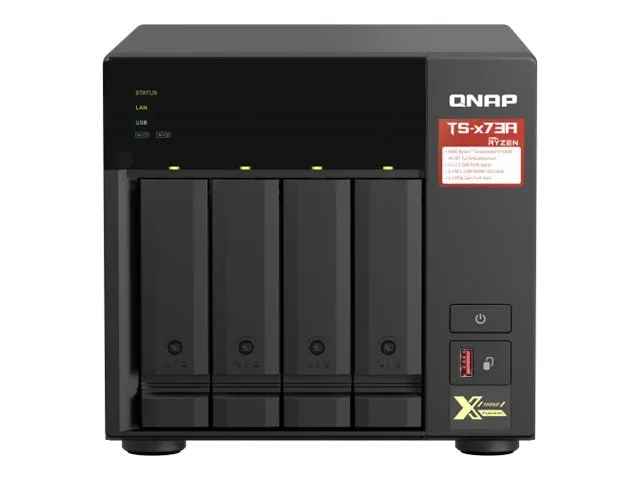

TieDex UK QNAP TS-473A – NAS server – 32 TB
QNAP TS-473A – NAS server – 4 bays – 32 TB – SATA 6Gb/s – HDD 8 TB x 4 – RAID RAID 0, 1, 5, 6, 10, JBOD – RAM 8 GB – 2.5 Gigabit Ethernet – iSCSI support
Basic Specifications
- Manufacturer’s Part Number
- TS-473A-8G/32TB-IW
- EAN
- 5051868180194
- RAM
- 8 GB
- Manufacturer Warranty
- 3-year warranty
- Networking
- 100Mb LAN, 1GbE, 2.5GbE
- Weight
- )
- Product Description
- QNAP TS-473A – NAS server – 32 TB
- Model
- QNAP TS-473A
- Dimensions (WxDxH)
- 19.93 cm x 28.08 cm x 18.82 cm
- Processor
- 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core)
- Power
- AC 100-240 V
- Hard Drive
- 4 x 8 TB SATA 6Gb/s – Seagate
- Storage Controller
- RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, JBOD
- Device Type
- NAS server
- Installed Devices / Modules Qty
- 4 (installed) / 4 (max)
- Storage Operating System
- QNAP QTS 4.5.2
- Host Connectivity
- 2.5 Gigabit Ethernet
- System Requirements
- Microsoft Windows 7, Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Windows 8 / 10, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later
- Total Storage Capacity
- 32 TB
General
- Device Type
- NAS server
- Host Connectivity
- 2.5 Gigabit Ethernet
- Total Storage Capacity
- 32 TB
- Installed Devices / Modules Qty
- 4 (installed) / 4 (max)
- Width
- 19.93 cm
- Depth
- 28.08 cm
- Height
- 18.82 cm
- Weight
- )
- Built-in Devices
- Led panel
Miscellaneous
- Cables Included
- 1 x network cable
- Features
- Built-in 2 cooling fans, dual boot, alarm buzzer
- Compliant Standards
- ISO 7779
- Included Accessories
- 2 x hard drive security key, 2 x M.2 SSD heatsink, 12 x flat head screws (for 2.5″ HDD), 12 x flat head screws (for 3.5″ HDD), power cable
Manufacturer Warranty
- Service & Support
- Limited warranty – 3 years
Networking
- Data Link Protocol
- 100Mb LAN, 1GbE, 2.5GbE
- Remote Management Protocol
- Telnet, HTTP, HTTPS, SSH
- Network Services Compatibility
- Microsoft Active Directory (AD), Microsoft CIFS, FTP, Server Message Block (SMB), Apple File Protocol (AFP)
- Features
- NAT support, hardware encryption, LDAP support, wake on LAN (WOL), Spanning Tree Protocol (STP) support, Jumbo Frames support, DHCP server, FTP server, reset button, DHCP client, static routing, VPN Server, AES encryption, DLNA support, Chromecast support, file station, port trunking, USB One Touch Copy, IFTTT agent, hybrid backup sync, Qfiling, Qsirch, Qcontactz, Qfinder Pro, Q’center (NAS CMS), VJBOD Cloud, myQNAPcloud, Qsync, QuMagie, Qmiix agent
- Encryption Algorithm
- AES-NI
Expansion / Connectivity
- Expansion Bays
- 4 (total) / 0 (free) x hot-swap – 2.5″ / 3.5″
- Expansion Slots
- 2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4
- Interfaces
- 2 x 2.5 Gigabit Ethernet – RJ-45 ¦ 3 x USB 3.2 Gen 2 – Type A ¦ 1 x USB 3.2 Gen 1 – Type C
Hard Drive
- Type
- HDD
- Capacity
- 4 x 8 TB
- Interface Type
- SATA 6Gb/s
- Manufacturer
- Seagate
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 100-240 V
- Power Consumption Operational
- 29.792 Watt
- Power Consumption Stand by
- 19.576 Watt
- Power Provided
- 250 Watt
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 – 95% (non-condensing)
- Sound Emission
- 21.4 dBA
Processor / Memory
- Processors Installed
- 1 x AMD Ryzen Embedded V1500B 2.2 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- RAM
- 8 GB (installed) / 64 GB (supported) – DDR4
- Flash Memory Installed
- 5 GB
Software / System Requirements
- Storage Operating System
- QNAP QTS 4.5.2
- OS Required
- Microsoft Windows 7, Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Windows 8 / 10, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later
