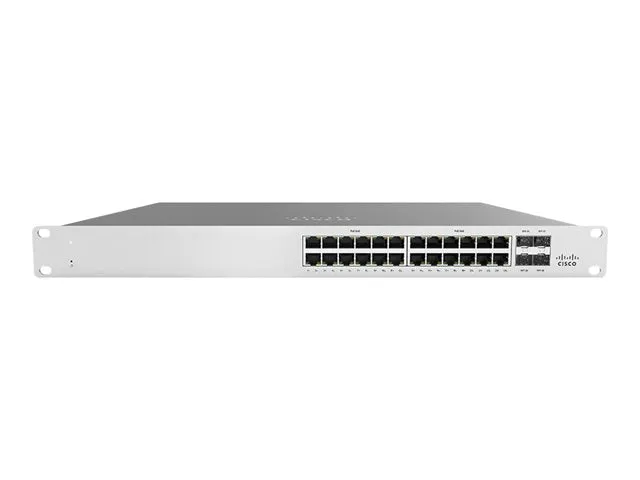

TieDex UK Cisco Meraki Cloud Managed MS120-24P – switch – 24 ports – Managed – rack-mountable
Cisco Meraki Cloud Managed MS120-24P – Switch – Managed – 24 x 10/100/1000 + 4 x Gigabit SFP – rack-mountable, desktop – PoE (370 W)
Basic Specifications
- Manufacturer’s Part Number
- MS120-24P-HW
- EAN
- 8592978573263
- Manufacturer Warranty
- Limited lifetime warranty
- Weight
- 3.71 kg
- Product Description
- Cisco Meraki Cloud Managed MS120-24P – switch – 24 ports – Managed – rack-mountable
- Model
- Cisco Meraki Cloud Managed MS120-24P
- Dimensions (WxDxH)
- 44 cm x 25 cm x 4.4 cm
- Features
- Auto-uplink (auto MDI/MDI-X), auto-negotiation, crossover detection, ZTP, DHCP client, Syslog support, firmware upgradable, E-mail alert, SMS alert, QoS, DSCP to CoS Mutation, VLAN support, RSTP support, STP support, Broadcast Storm Control, Cisco Discovery Protocol, port mirroring, IGMP snooping, RBAC, SSO support, DHCP snooping, STP BPDU Guard, STP Root Guard, ACL support, flow control, fanless
- Power
- AC 120/230 V (47 – 63 Hz)
- Device Type
- Switch – 24 ports – Managed
- Compliant Standards
- IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3af
- Capacity
- VLANs supported: 4094 ¦ MAC forwarding entries: 16000
- Subtype
- Gigabit Ethernet
- Performance
- Switching capacity: 56 Gbps ¦ Forwarding rate: 41.67 Mpps
- Enclosure Type
- Rack-mountable 1U
- Remote Management Protocol
- SNMP
- Jumbo Frame Support
- 9578 bytes
- Ports
- 24 x 10/100/1000 + 4 x Gigabit SFP
- PoE Budget
- 370 W
- Power Over Ethernet (PoE)
- PoE
General
- Device Type
- Switch – 24 ports – Managed
- Enclosure Type
- Rack-mountable, desktop 1U
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x Gigabit SFP
- Power Over Ethernet (PoE)
- PoE
- PoE Budget
- 370 W
- Performance
- Switching capacity: 56 Gbps ¦ Forwarding rate: 41.67 Mpps
- Capacity
- VLANs supported: 4094 ¦ MAC forwarding entries: 16000
- Jumbo Frame Support
- 9578 bytes
- Remote Management Protocol
- SNMP
- Authentication Method
- RADIUS
- Features
- Auto-uplink (auto MDI/MDI-X), auto-negotiation, crossover detection, ZTP, DHCP client, Syslog support, firmware upgradable, E-mail alert, SMS alert, QoS, DSCP to CoS Mutation, VLAN support, RSTP support, STP support, Broadcast Storm Control, Cisco Discovery Protocol, port mirroring, IGMP snooping, RBAC, SSO support, DHCP snooping, STP BPDU Guard, STP Root Guard, ACL support, flow control, fanless
- Compliant Standards
- IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1D, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3af
Dimensions & Weight
- Width
- 44 cm
- Depth
- 25 cm
- Height
- 4.4 cm
- Weight
- 3.71 kg
Miscellaneous
- Rack Mounting Kit
- Included
- MTBF
- 1,700,716 hours
- Compliant Standards
- CSA, FCC, IC, RCM, RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty – advance parts replacement – lifetime – response time: next business day
Expansion / Connectivity
- Interfaces
- 24 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T SFP
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (47 – 63 Hz)
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 – 95% (non-condensing)
