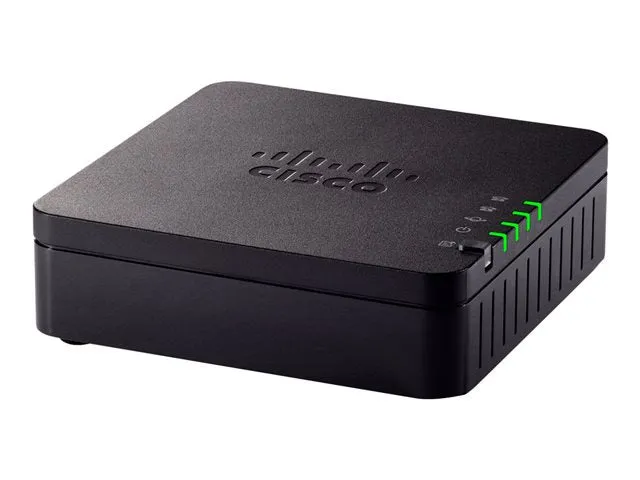

TieDex UK Cisco ATA 192 Multiplatform Analog Telephone Adapter – VoIP phone adapter
Cisco ATA 192 Multiplatform Analog Telephone Adapter – VoIP phone adapter – 2 ports – 100Mb LAN
Basic Specifications
- Manufacturer’s Part Number
- ATA192-3PW-K9
- EAN
- 8592978121907
- Ports Qty
- 2
- Device Type
- VoIP phone adapter
- Form Factor
- External
- Dimensions (WxDxH)
- 10 cm x 10 cm x 2.8 cm
- Manufacturer Warranty
- 1-year warranty
- VoIP Protocols
- SIP, RTP, RTCP, SRTP
- Power
- AC 120/230 V / DC 5 V (50/60 Hz)
- Weight
- 132.1 g
- Product Description
- Cisco ATA 192 Multiplatform Analog Telephone Adapter – VoIP phone adapter
- Model
- Cisco ATA 192 Multiplatform Analog Telephone Adapter
- Data Link Protocol
- Ethernet, Fast Ethernet
- Telephony Interfaces
- 2 phone (FXS)
Networking
- Form Factor
- External
- Ports Qty
- 2
- Connectivity Technology
- Wired
- Data Link Protocol
- Ethernet, Fast Ethernet
- Network / Transport Protocol
- TCP/IP, UDP/IP, RTCP, RTP, ARP, PPPoE, IPSec, PPTP, L2TP
- Remote Management Protocol
- TR-069, HTTP, HTTPS, TFTP, SSH, SNMP 3
- Status Indicators
- Internet, phone, power
- Features
- IPv6 support, reset button, wall mountable, DHCP client, Internet Control Message Protocol (ICMP), SNTP support, Cisco Discovery Protocol, LLDP support, NAT support, port forwarding, DiffServ support, Type of Service (ToS), Automated Attendant (IVR), Syslog support, dual image support
- Encryption Algorithm
- ESP, AES, TLS 1.1, TLS 1.2
- Authentication Method
- Secure Shell (SSH)
- Compliant Standards
- IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q
Expansion / Connectivity
- Interfaces
- 2 x FXS – RJ-11 ¦ 2 x 100Base-TX – RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V / DC 5 V (50/60 Hz)
- Power Consumption Operational
- 5 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 – 90% (non-condensing)
General
- Device Type
- VoIP phone adapter
- Width
- 10 cm
- Depth
- 10 cm
- Height
- 2.8 cm
- Weight
- 132.1 g
Manufacturer Warranty
- Service & Support
- Limited warranty – 1 year
IP Telephony
- VoIP Protocols
- SIP, RTP, RTCP, SRTP
- Voice Codecs
- G.711a, G.711µ, G.726, G.729a, G.729ab, T.38, G.711
- Telephony Interfaces
- 2 phone (FXS)
- IP Telephony Features
- Call waiting, call forwarding, call hold, caller ID block/unblock, Caller ID, call transfer, distinctive ringing, Do-not-disturb (DND) support
Miscellaneous
- MTBF
- 300,000 hours
- Compliant Standards
- Directive 2014/30/EU, Directive 2014/35/EU, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60950-1:2005 Second Edition, AS/NZS 60950-1:2015, AS/NZS CISPR32:2015 Class B, CISPR 32:2015 Class B, EN 55032:2015 Class B, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC Part 15 B, ANSI C63.4-2014, ICES-003:2016
