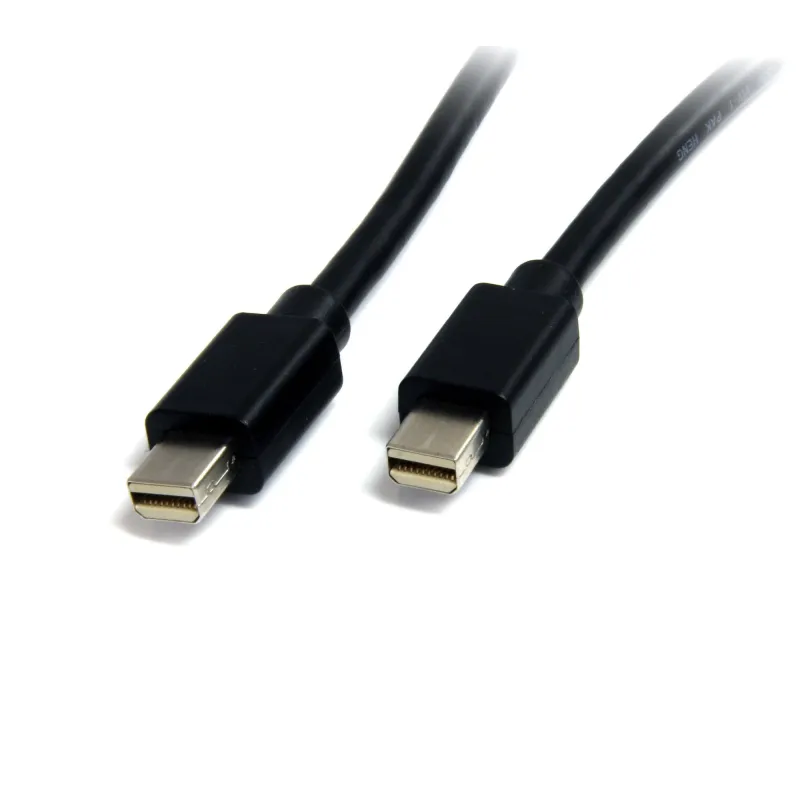

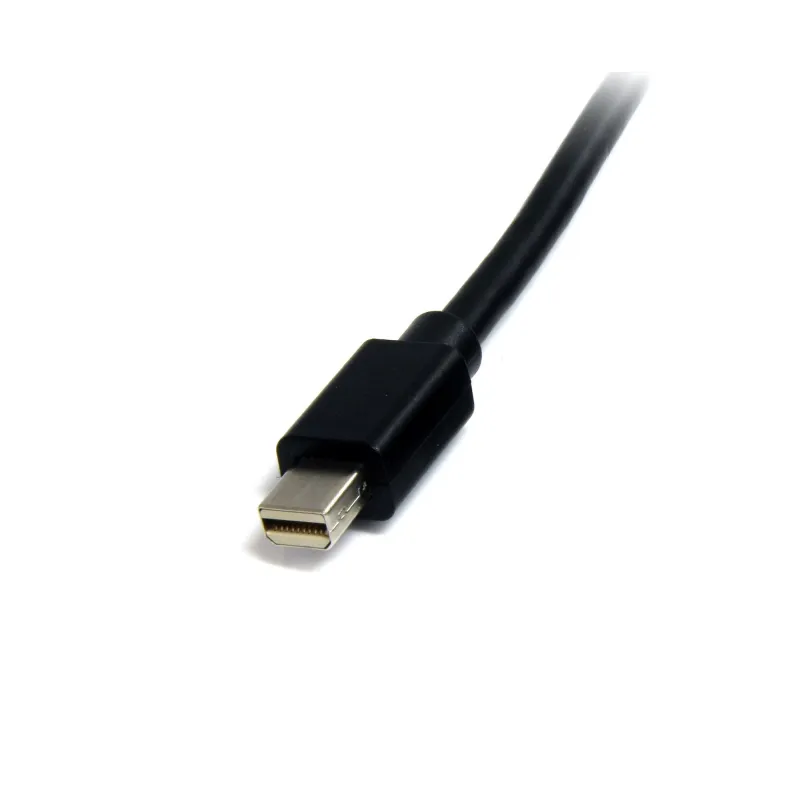

StarTech.com 1m (3.3ft) Mini DisplayPort Cable – 4K x 2K Ultra HD Video – Mini DisplayPort 1.2 Cable – Mini DP to Mini DP Cable for Monitor – mDP Cord works with Thunderbolt 2 Ports – M/M
- MINI DISPLAYPORT 1.2 CABLE: This 1m (3.3ft) Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
- SPECS: 1m (3.3ft); Black Mini DP Cable; DisplayPort v1.2; mDP Male to mDP Male Cord; 32 AWG; PVC cable jacket, ABS connector shell; Shield: Al-Mylar foil with Braid; Protocols: HBR2, MST, GTC; Backed for Life
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and monitor
The MDISP1M 1m Mini DisplayPort™ 1.2 cable features 2 Mini DP male connectors, and offers a dependable solution for connecting any Mini DisplayPort-enabled laptop (including Mac® family of products) to a Mini DisplayPort-equipped monitor.
The mDP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDISP1M is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
The StarTech.com Advantage
| Features | |
|---|---|
| Number of conductors | 19 |
| Multi-Stream Transport (MST) | Yes |
| Plug and Play | Yes |
| Bandwidth | 21600 MB/s |
| AWG wire size | 32 |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Cable rating | CMG (CM) |
| Product colour | Black |
| DisplayPort Content Protection (DPCP) | Yes |
| HDCP | Yes |
| Maximum refresh rate | 60 Hz |
| Supported video modes | 720p, 1080p, 2160p |
| Supported graphics resolutions | 2560 x 1600 (WQXGA), 3840 x 2400 |
| Maximum resolution | 3840 x 2400 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Nickel |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | Mini DisplayPort |
| Connector 1 | Mini DisplayPort |
| Cable length | 1 m |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 39.9 g |
| Packaging data | |
|---|---|
| Package weight | 40.3 g |
| Package height | 12 mm |
| Package depth | 220 mm |
| Package width | 200 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case height | 210 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case width | 320 mm |
| Harmonized System (HS) code | 84733080 |
