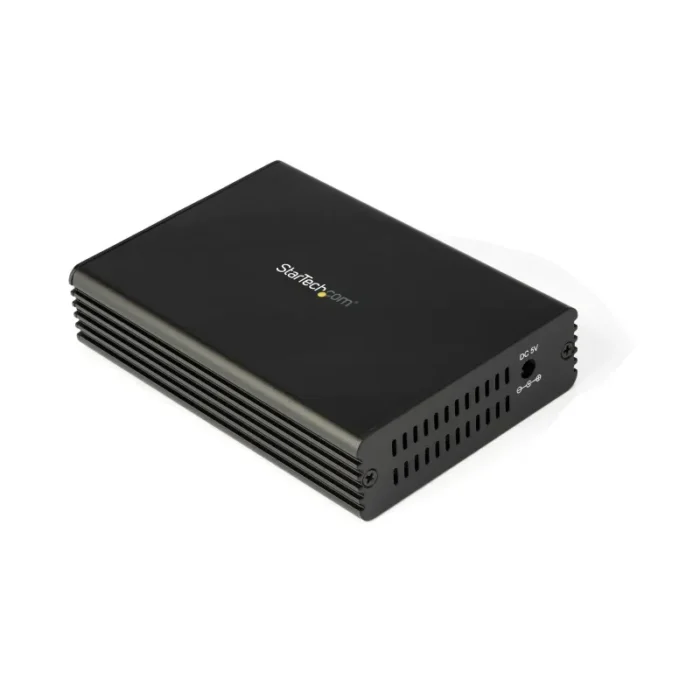

StarTech.com 10GbE Fiber Ethernet Media Converter for 1/2.5/5/10Gbps Network NBASE-T SFP to RJ45 Multigigabit Singlemode/Multimode Fiber Optic to Copper Network Ethernet to Fiber Bridge~10GbE Fiber Ethernet Media Converter for 10Gbps Network 10GBASE-T SFP
- FIBER ETHERNET MEDIA CONVERTER: Extends & converts 10Gbps/1Gbps fiber to RJ45 copper; Supports multimode & single mode fiber connections & a wide variety of fiber protocols depending on SFP+ module used
- DEPLOY REMOTELY: Plug-and-play for copper to fiber or fiber to copper Ethernet network conversion with open SFP+ slot for any MSA Compliant SFP/SFP+ module; can be deployed by non-technical staff
- TECH SPECS: 10 Gbps; 1 Gbps; 10GBASE-T; 1000BASE-T; Unmanaged; LFP; SMF & MMF; Full Duplex; RJ45; Mountable; Power adapter incl.; Open SFP/SFP+
- RELIABLE & DURABLE DESIGN: External steel housing with ESD Surge Protection; Contact and Air Discharge Protection. MTBF rating exceeds 38,400 hrs
- TESTED & PROVEN: This multigigabit media converter is backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual Technical Advisors to support deployments across all time zones.
Fiber to Copper Media Converter | 10GBASE/1000BASE | 10Gbps/1Gbps Unmanaged | Single Mode & Multimode
This Ethernet fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP+ of your choice. It converts a copper RJ45 Ethernet connection to 10Gbps or 1Gbps fiber, to extend your network over longer distances or connect workstations to switches.
Cost-Effective Extensions and Flexible Performance
The RJ45 to fiber media converter provides a cost-efficient way to connect an Ethernet network to remote devices over a fiber backbone. It features an open SFP+ slot that supports the MSA-compliant 10 Gigabit SFP+ or 1 Gigabit SFP that best suits your fiber connection setup (single mode/multimode) and distance requirements.
A Versatile Way to Connect Different Networks
The 10Gb/1Gb fiber media converter supports auto-negotiation while providing versatile connectivity to existing networks and devices, maximizing the usage and performance of legacy equipment.
Network Compatibility:
• 10GBASE-ER
• 10GBASE-LR
• 10GBASE-LW
• 10GBASE-EW
• 10GBASE-R
• 10GBASE-SR
• 10GBASE-SW
• 10GBASE-T
• 1000BASE-T
• 1000BASE-SX
• 1000BASE-LX
Fast and Easy Installation
The unmanaged fiber media converter has a standalone compact design with simple plug-and-play setup to ensure fast and easy installation.
StarTech.com Fiber Media Converters
Overcome the distance limitations of traditional network cables with StarTech.com fiber media converters. Our converters connect different types of network cabling and help you extend networks between buildings and over longer distances. Whether you need to extend a network connection 550 m or 40 km, we can help you.
The StarTech.com Advantage
| Network | |
|---|---|
| Auto-negotiation | Yes |
| Auto MDI/MDI-X | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Fiber ethernet cabling technology | 10GBASE-LR, 10GBASE-SR |
| Ethernet LAN data rates | 10,100,1000,1200,2500,5000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Networking standards | IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3an |
| Maximum data transfer rate | 10000 Mbit/s |
| Performance | |
|---|---|
| Fiber mode structure | Multi-mode, Single-mode |
| Features | |
|---|---|
| Housing material | Aluminium |

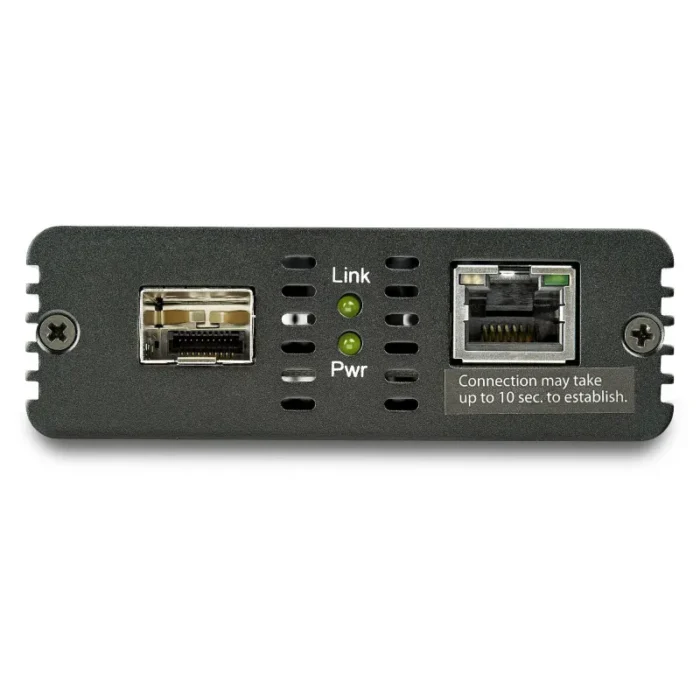

| LED indicators | Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power plug type | Type M |
| External power adapter | Yes |
| Power over Ethernet (PoE) | No |
| Output current | 2 A |

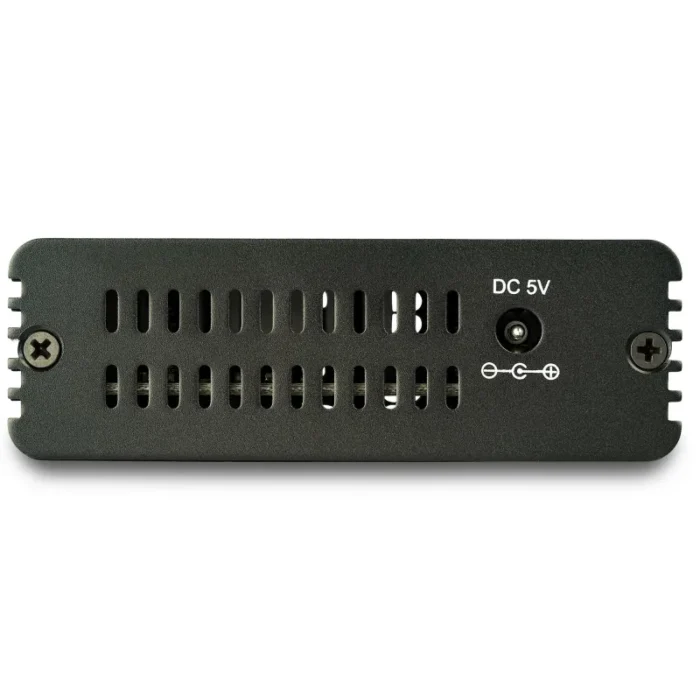

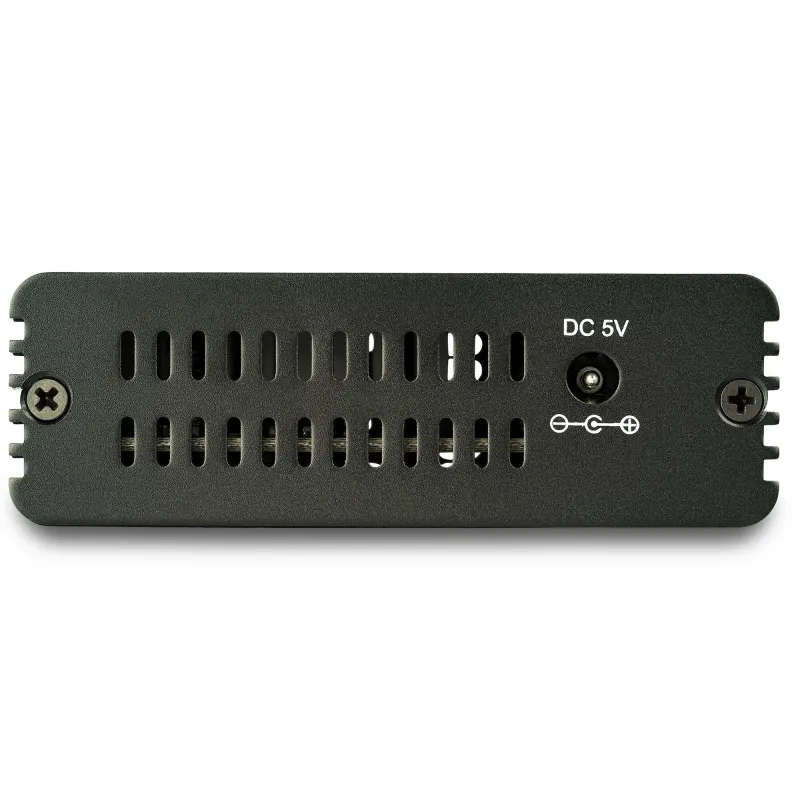

| Output voltage | 5 V |
| Input current | 250 A |
| Weight & dimensions | |
|---|---|
| Weight | 274 g |
| Height | 30 mm |
| Depth | 122 mm |
| Width | 80 mm |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 120 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Packaging content | |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Packaging data | |
|---|---|
| Package weight | 350 g |
| Package height | 38 mm |
| Package depth | 207 mm |
| Package width | 144 mm |
| Certificates | |
|---|---|
| Certification | CE, FCC, UL, PSE |
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case height | 320 mm |
| Master (outer) case length | 550 mm |
| Master (outer) case width | 320 mm |
| Harmonized System (HS) code | 85176990 |
