SilverNet SIL-WCAP-AX-EXT+ 1800 Mbit/s White Power over Ethernet (PoE)
- Wi-Fi 6, 802.11ax chipset, 1800Mbps
- External Dual AP Radio
- WAN – 10/100/1000-BASE-T
- PoE 802.af
- Channel optimisation
- Automatic interference avoidance
- Up to 8 SSID (4 on 2.4GHz, 4 on 5.8GHz)
- IP67 Rated Outdoor Enclosure
- Client Load Balancing
- AES Encryption
- VLANS
- PING Watchdog
- MAC Access control
- Easy to install
- Local or Cloud Management

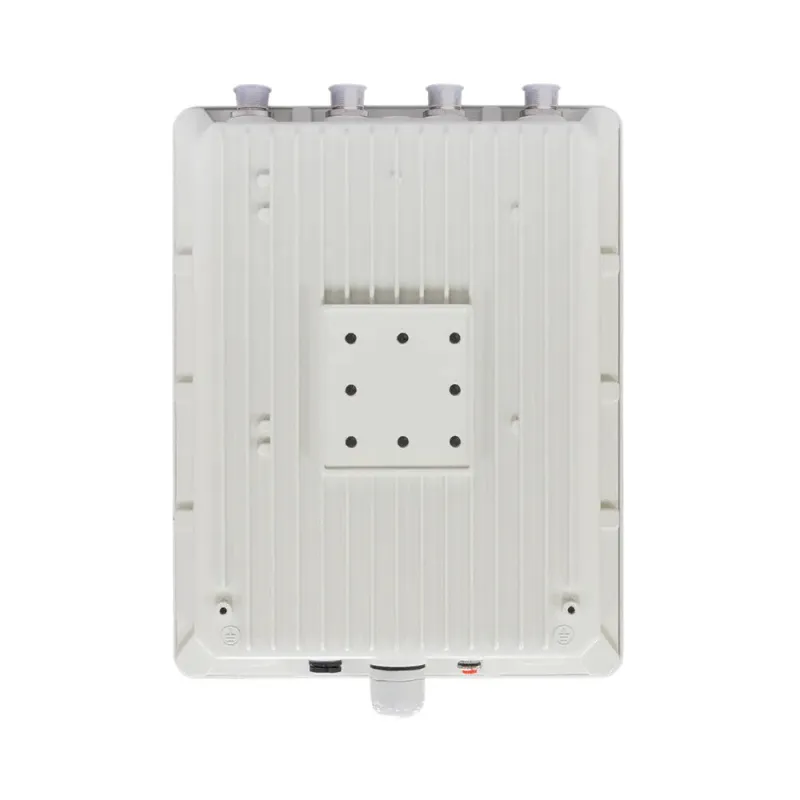

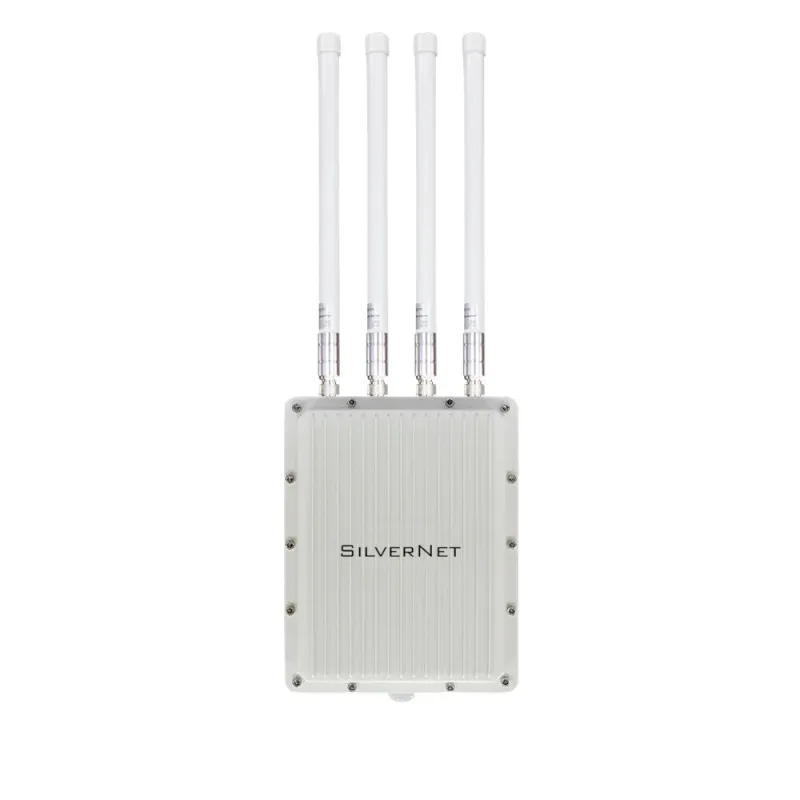

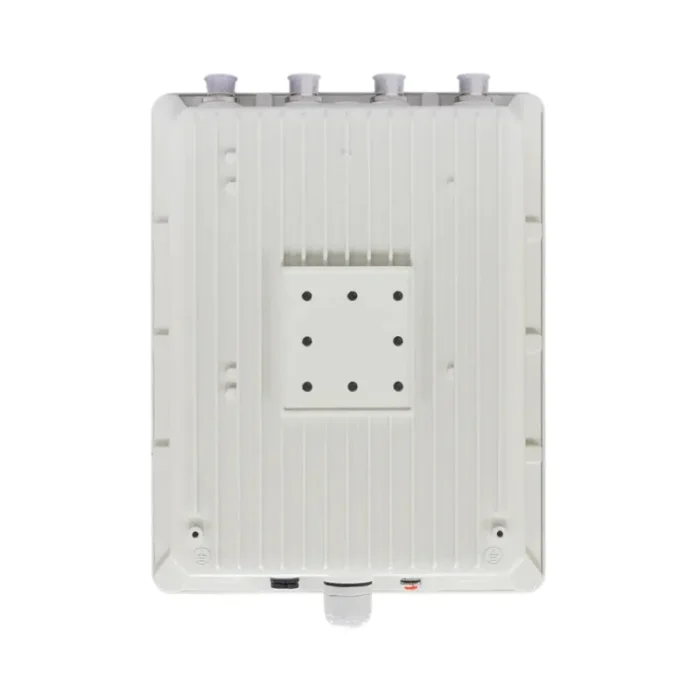

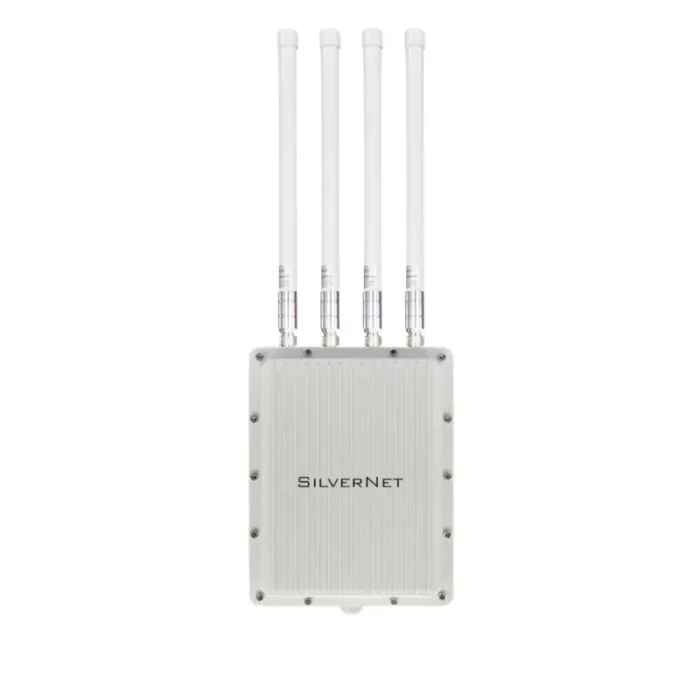

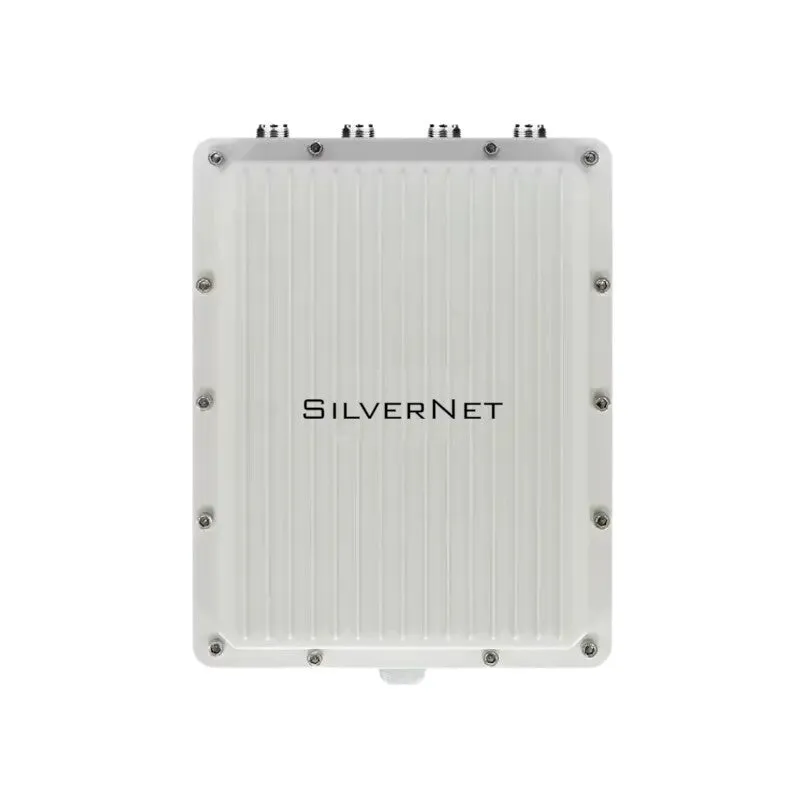

The SIL WCAP-AX-EXT+ is an outdoor 802.11ax access point featuring four N-type antenna connectors. It is part of SilverNet’s new Intelligent Wi-Fi 6 “Aero” series, designed for use with external high-gain antennas to create high-performance enterprise Wi-Fi networks.
This device offers an exceptional outdoor Wi-Fi range with a TX-Power of up to 23dBm and a wireless coverage distance of up to 200 meters (depending on the antennas used), making it perfect for a wide range of uses, especially in commercial and hospitality settings. It supports various hotspot authentication methods, including vouchers, local accounts, and social media platforms like Facebook, ensuring robust connectivity in shopping centers, schools, hotels, and more.
The WCAP-AX-EXT+ provides the option to manage the access point locally or through a controller, offering the versatility to deliver a comprehensive, managed Wi-Fi service tailored to your clients’ requirements. It also operates efficiently as a standalone access point.
This equipment keeps operations smooth for you and your clients by monitoring Wi-Fi client signal health and internet quality, reducing the frequency of unnecessary support calls. Tasks such as RF troubleshooting and bulk software updates are simplified, and installation is quick and straightforward.
The durable exterior of the WCAP-AX-EXT+ shields the device and its components from interference and harsh weather conditions. With a standard one-year warranty, you can have peace of mind regarding its reliability.
| Features | |
|---|---|
| Transmitting power (CE) | 23 dBm |
| Maximum outdoor range | 200 m |
| Quality of Service (QoS) support | Yes |
| Band steering | Yes |
| Wireless isolation | Yes |
| Automatic interference avoidance | Yes |
| User-based bandwidth limiting | Yes |
| Rate limiting | Yes |
| Number of users | 100 user(s) |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate | 1800 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Number of SSID supported | 8 |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| MAC address filtering | Yes |
| Security algorithms | WEP, WPA, WPA-AES, WPA-Enterprise, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| WAN connection | Ethernet (RJ-45) |
| Power | |
|---|---|
| Power consumption (max) | 15 W |
| Output voltage | 48 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| LED indicators | LAN, Power, WAN |
| Reset button | Yes |
| International Protection (IP) code | IP65 |
| Product colour | White |
| Placement | Pole, Wall |
| Antenna | |
|---|---|
| Number of connectors | 4 |
| Antenna type | External |
| Performance | |
|---|---|
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Built-in processor | Yes |
| Certificates | |
|---|---|
| Certification | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Height | 80 mm |
| Depth | 295 mm |
| Width | 231 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.33 kg |
| Package height | 125 mm |
| Package depth | 455 mm |
| Package width | 285 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | -30 – 70 °C |
| Operating relative humidity (H-H) | 5 – 95% |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
| Warranty period | 1 year(s) |
