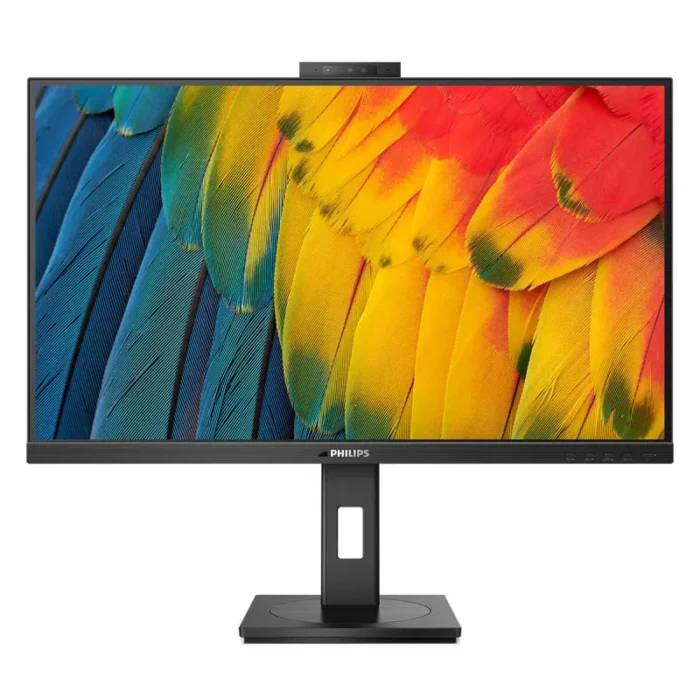

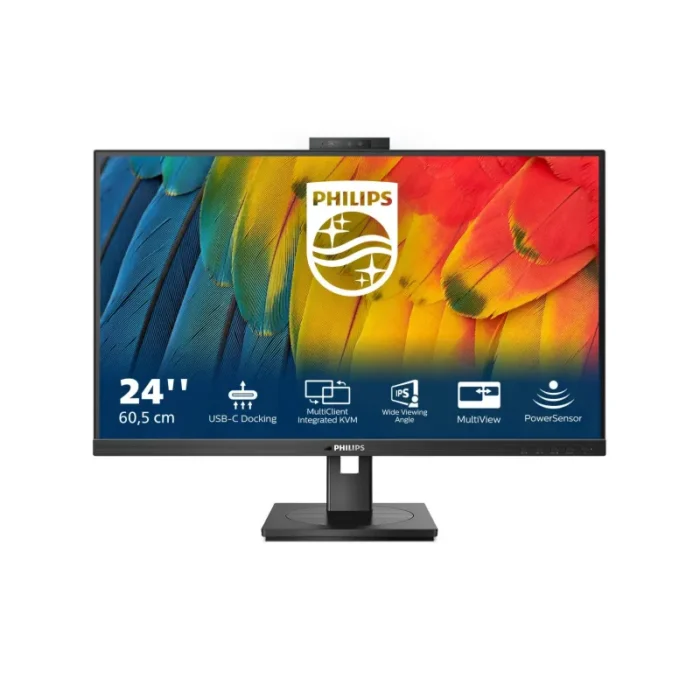

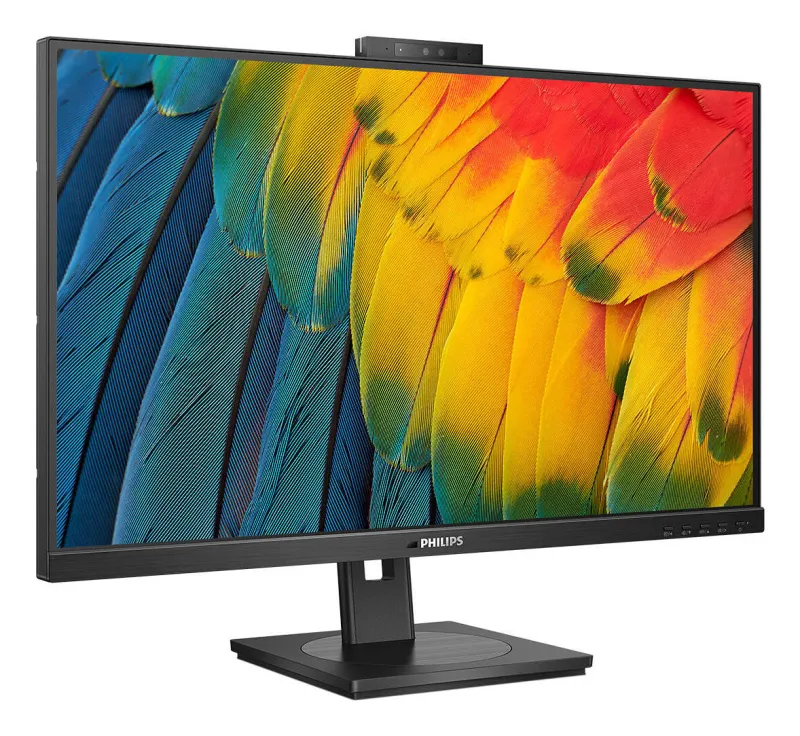

Philips 5000 series 24B1U5301H/00 LED display 60.5 cm (23.8″) 1920 x 1080 pixels Full HD LCD Black
- 60.5 cm (23.8″) LCD IPS
- Full HD 1920 x 1080 pixels 16:9
- 75 Hz 4 ms 300 cd/m² 1000:1
- Flicker-free technology
- E 18 kWh 15.3 W
This USB-C monitor is great for watching videos, data transfer and power delivery. The integrated 5 MP webcam delivers sharp images, and a noise-cancelling mic lets people hear you clearly. Features a pop-up webcam for quick access and robust security.
| Display |
| Display sRGB |
Yes |
| NTSC coverage (typical) |
88% |
| sRGB coverage (typical) |
105% |
| Colour gamut standard |
sRGB |
| Colour depth |
8 bit |
| Surface hardness |
3H |
| Haze rate |
25% |
| DDC/CI |
Yes |
| Display diagonal (metric) |
60.5 cm |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Vertical scan range |
48 – 75 Hz |
| Horizontal scan range |
30 – 85 kHz |
| Pixel density |
93 ppi |
| Pixel pitch |
0.2745 x 0.2745 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
75 Hz |
| Dynamic contrast ratio marketing name |
SmartContrast |
| Contrast ratio (dynamic) |
50000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Response time |
4 ms |
| Display brightness (typical) |
300 cd/m² |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8″) |
| Performance |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Component video sync |
Separate sync |
| Fast charging technology |
Power Delivery |
| Fast charging |
Yes |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in microphone |
Yes |
| Megapixel (approx.) |
5 MP |
| Built-in camera |
Yes |
| RMS rated power |
5 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Feet colour |
Black |
| Front bezel colour |
Black |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
| DisplayPort output |
Yes |
| HDCP version |
1.4/2.2 |
| HDCP |
Yes |
| Headphone out |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Power Delivery up to |
90 W |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| USB Type-C downstream ports quantity |
1 |
| USB Type-A downstream ports quantity |
4 |
| Number of upstream ports |
1 |
| USB upstream port type |
USB Type-C |
| USB hub version |
3.2 Gen 2 (3.1 Gen 2) |
| Built-in USB hub |
Yes |
| Ergonomics |
| LED indicators |
Operation, Stand-by |
| Plug and Play |
Yes |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| Picture-in-Picture |
Yes |
| Tilt angle range |
-5 – 30° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-180 – 180° |
| Swivelling |
Yes |
| Pivot angle |
-90 – 90° |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
1325579 |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
15.3 W |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Energy efficiency class (SDR) |
E |
| Operational conditions |
| Non-operating altitude |
3658 – 12192 m |
| Operating altitude |
0 – 3658 m |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight (without stand) |
3.9 kg |
| Height (without stand) |
323 mm |
| Depth (without stand) |
51 mm |
| Width (without stand) |
540 mm |
| Weight (with stand) |
5.5 kg |
| Height (with stand) |
500 mm |
| Depth (with stand) |
205 mm |
| Width (with stand) |
540 mm |
| Packaging data |
| Package weight |
8.32 kg |
| Package height |
406 mm |
| Package depth |
198 mm |
| Package width |
600 mm |
| Packaging content |
| Bundled software |
SmartControl |
| Manual |
Yes |
| Cables included |
HDMI, DisplayPort, USB Type-C, AC |
| Stand included |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Doesn’t contain |
Mercury, PVC/BFR |
| Sustainability certificates |
ENERGY STAR, TCO |
| General |
| Product family |
5000 series |
| Other features |
| Wake-on-LAN |
Yes |
| Picture enhancement |
SmartImage |
| Regulatory Approvals |
CB; CE Mark; FCC Class B; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified; cETLus |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Mean time between failures (MTBF) |
70000 h |
| Light sensor |
Yes |
| LowBlue mode |
Yes |
| EasyRead mode |
Yes |
| Recyclable packaging material |
100% |
| Compliance certificates |
RoHS |
| Exterior finish type |
Textured |
| Picture-by-Picture (PbP) |
Yes |
| Compatible operating systems |
Mac OS XWindows 11 / 10 / 8.1 / 8 / 7 |
| HBR3 support |
Yes |
| Recycling data |
| Post-consumer recycled plastic |
85% |
