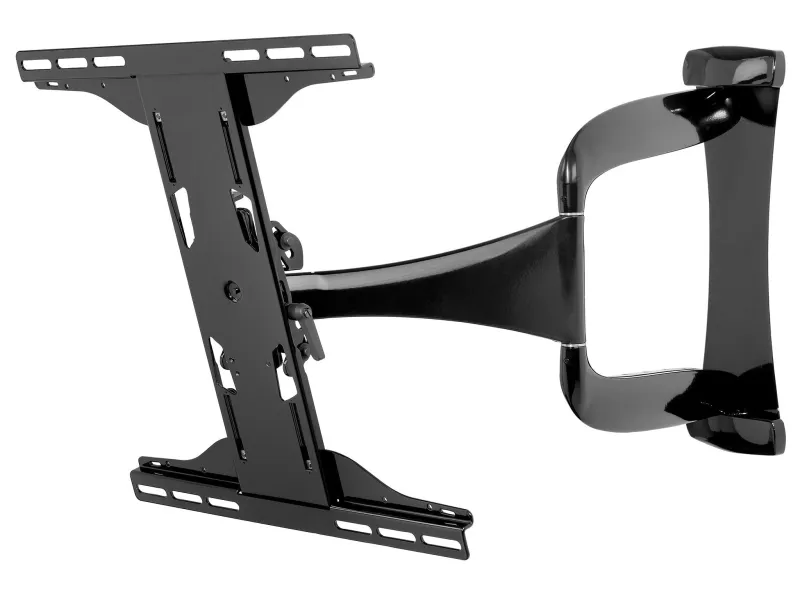

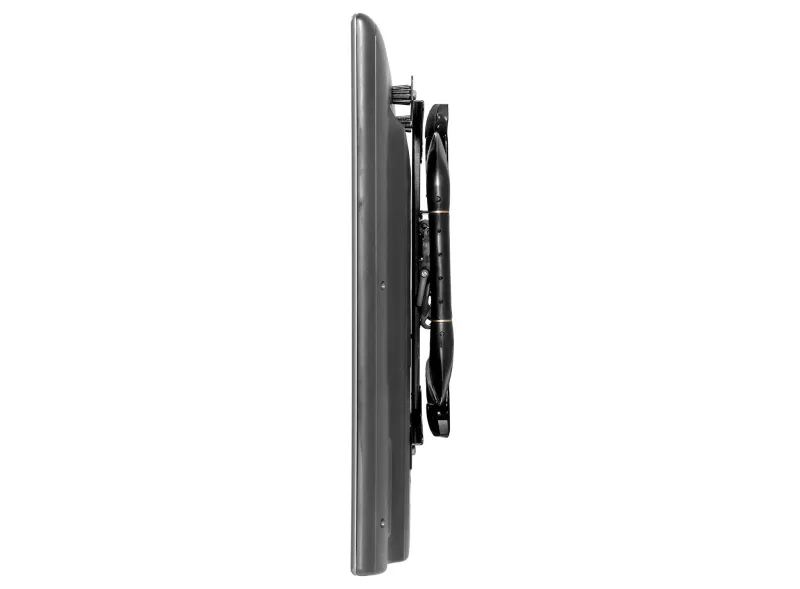

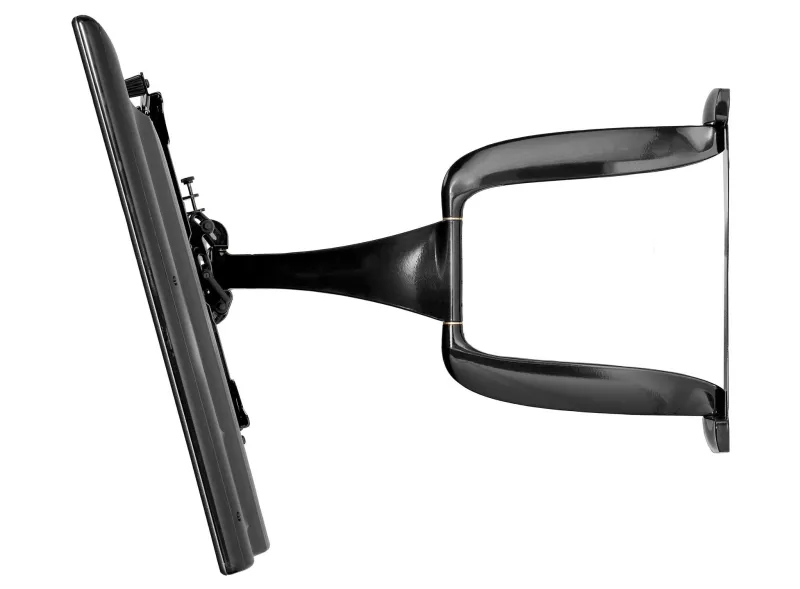

Peerless SUA747PU TV mount/stand 127 cm (50″) Black
- The I-Shaped Adaptor plate’s innovative design helps avoid blocking connections on back of display
- Internal cable management provides clean, professional installation finish
- Universal mount fits displays with mounting patterns 200 x 100 to 400 x 400mm
- Landscape or portrait mounting options increases display versatility
- Arm retracts to 1.85″ (47mm) and extends up to 24.85″ (631mm) from wall
- One-Touch™ tilt mechanism allows adjustment of +15/-5° without the use of tools
- Up to ±90° of side-to-side swivel
- Added ±5° of roll for postinstallation display leveling without the use of tools
- Up to ±0.5″ (13mm) of vertical adjustment for post-installation leveling and height adjustment fine-tuning
One of the thinnest wall arm mounts on the market, the Peerless-AV® DesignerSeries™ Universal Ultra Slim Articulating Wall Mount is designed exclusively for ultra-thin displays. The SUA747PU is built to hold displays firmly in any position – landscape or portrait – while still offering an ultra-low profile. An innovative I-shaped adaptor plate makes it easy to access the back of the display, keeping hardware hidden, and features internal cable management, providing a clean, professional look that transitions smoothly from the wall to the display. With a gloss Black finish, the SUA747PU matches any décor.
| Mounting |
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 100,200 x 300,300 x 200,400 x 200,400 x 300 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
200 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
127 cm (50″) |
| Minimum screen size |
81.3 cm (32″) |
| Maximum weight capacity |
27 kg |
| Ergonomics |
| Distance to the wall (max) |
63.1 cm |
| Distance to the wall (min) |
4.7 cm |
| Cable management |
Yes |
| Swivel angle |
90° |
| Tilt angle range |
-15 – 5° |
| Design |
| Certification |
RoHS, UL |
| Product colour |
Black |
| Packaging content |
| Manual |
Yes |
| Mounting kit |
Yes |
| Weight & dimensions |
| Weight |
5.61 kg |
| Height |
430 mm |
| Depth (max) |
63.1 cm |
| Depth (min) |
4.7 cm |
| Width |
514 mm |
| Packaging data |
| Package weight |
7.6 kg |
| Package height |
86 mm |
| Package depth |
495 mm |
| Package width |
540 mm |
| Logistics data |
| Harmonized System (HS) code |
85299097 |
