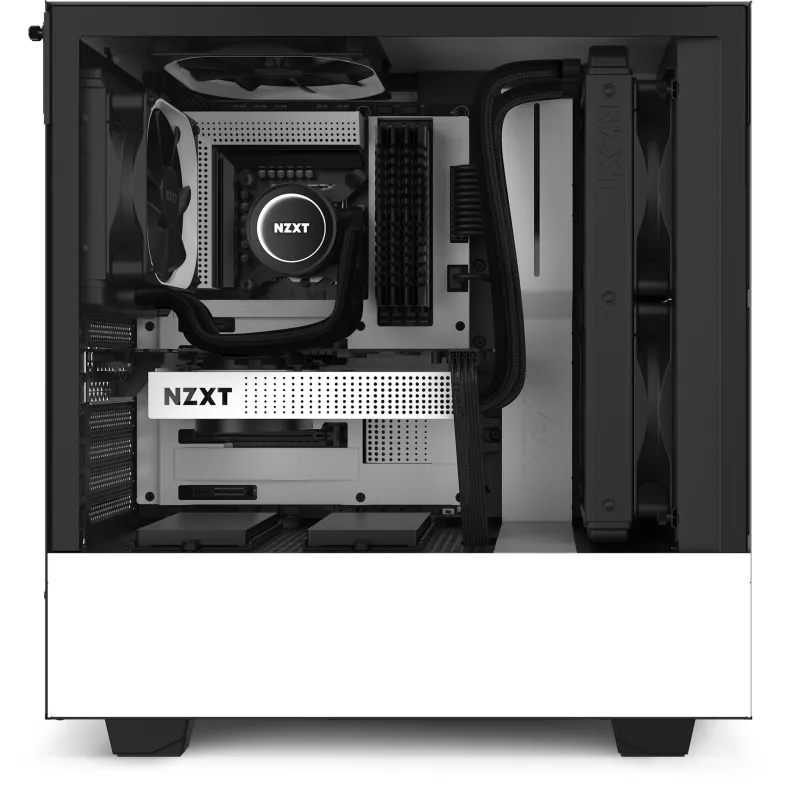

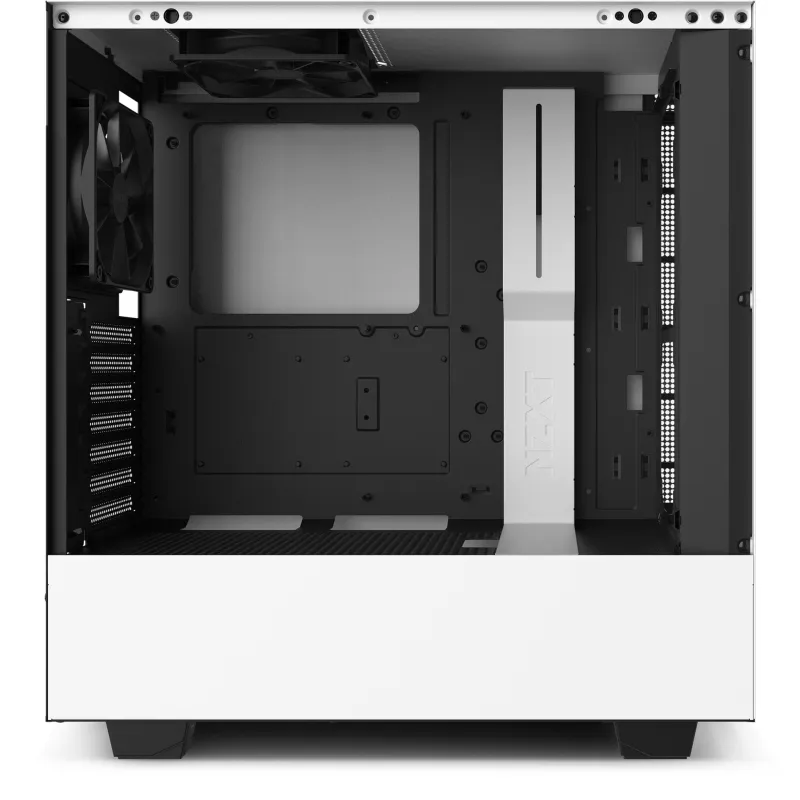

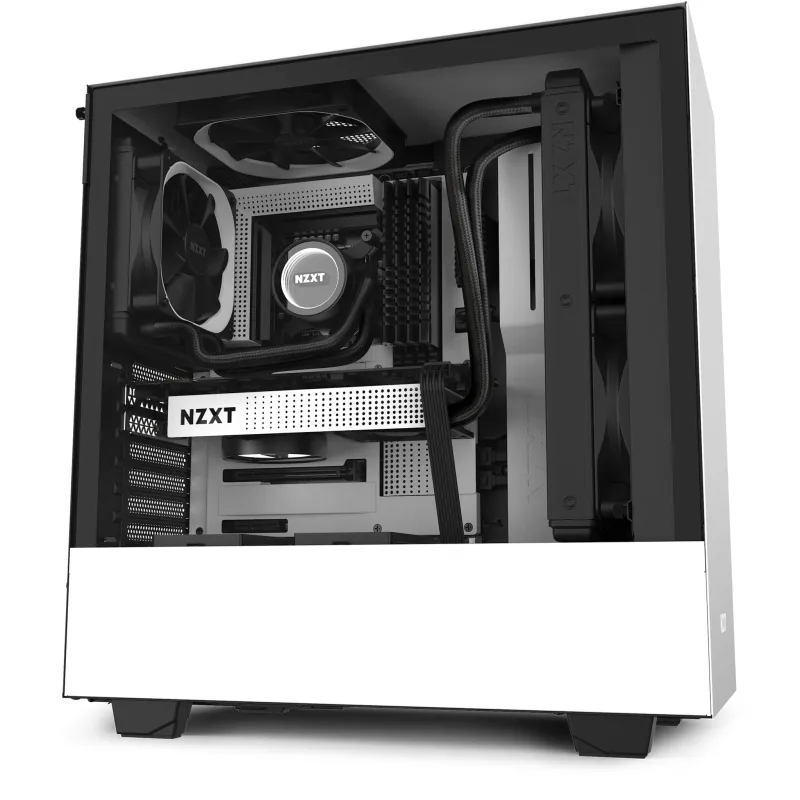

NZXT H510 Midi Tower White
- With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC
- The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build
- Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring
- Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 280mm simplifies the installation of either closed-loop or custom-loop water cooling
- Case version fans and specs vary from retail version
We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H510i.
| Design |
| Maximum graphics card length |
38.1 cm |
| Maximum CPU cooler height |
16.5 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Tempered glass panel(s) |
Yes |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5″ bays |
3 |
| Number of 3.5″ bays |
3 |
| Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
| Product colour |
White |
| Material |
SGCC, Steel |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Power supply included |
No |
| Ports & interfaces |
| Audio output |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Cooling |
| Rear radiator sizes supported |
120 mm |
| Front radiator sizes supported |
120,140 mm |
| Top fans diameters supported |
120,140 mm |
| Number of top fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
2 |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| Weight & dimensions |
| Weight |
6.6 kg |
| Height |
435 mm |
| Depth |
428 mm |
| Width |
210 mm |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Other features |
| Screws included |
Yes |
| Stand included |
Yes |
