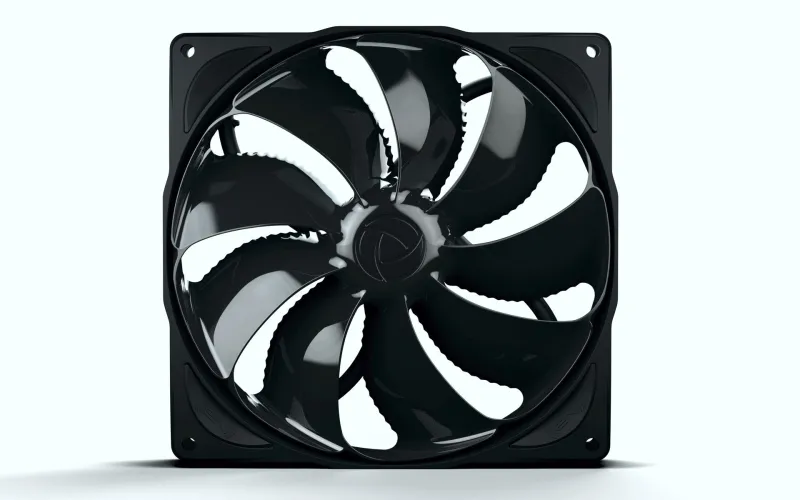

Noiseblocker B14-PS-BL Computer case Fan 14 cm Black
- Computer case Fan 14 cm 1200 RPM
- 24.28 dB 1.08 mmH2O
- Pulse-width modulation (PWM) support
- Black
The first high-tech compact fan worldwide with a bionic loop rotor (BionicLoopFan) comes from Germany.
– 100% developed in Germany
– TÜV-certified sound level specifications = real data
– extremely low-noise bionic loop rotor
– bionic deep sound fan frame
– position-invariant magnetic bearing NB-NanoSLI 2NEW!
– silent NB-EKA P2 Drive NEW!
– Bayer Makrolon rotor with anti-dust technology
– weighted reinforced fibreglass PBT frame
– NB cable management with two pluggable connection cables
– Perfect results for PC casing, CPU cooling systems and radiator( higher cooling power at same revolution ratel)
| Performance |
| Operating temperature (T-T) |
-10 – 60 °C |
| Mean time between failures (MTBF) |
140000 h |
| Pulse-width modulation (PWM) support |
Yes |
| Maximum air pressure |
1.08 mmH2O |
| Airflow |
142.59 m³/h |
| Noise level (high speed) |
24.28 dB |
| Rotational speed (max) |
1200 RPM |
| Rotational speed (min) |
300 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
14 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Certification |
CE, TÜV |
| Fan connector |
4-pin |
| Number of fan blades |
9 |
| Number of fans |
1 fan(s) |
| Material |
Fiberglass, Polybutylene terephthalate (PBT) |
| Product colour |
Black |
| Power |
| Starting voltage |
5 V |
| Rated voltage |
12 V |
| Voltage |
3.8 – 13.8 V |
| Power supply |
1.44 W |
| Weight & dimensions |
| Weight |
202 g |
| Height |
140 mm |
| Depth |
29 mm |
| Width |
140 mm |
| Technical details |
| Compliance certificates |
RoHS |
| Packaging content |
| Number of screws |
4 |
| Screws included |
Yes |
| Cables included |
Fan |
| Other features |
| Dustproof |
Yes |
