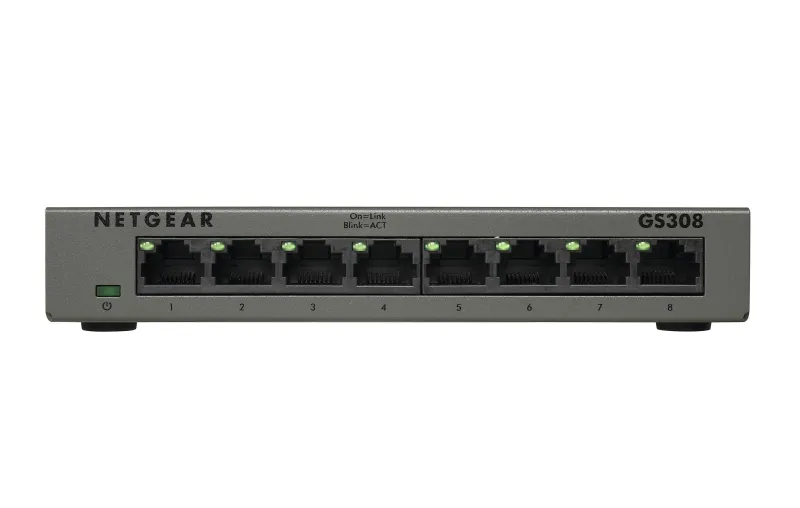

NETGEAR SOHO Unmanaged Gigabit Ethernet (10/100/1000) Black
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent operation
- Desktop, wall-mountable or rack-mountable (GS324, GS348)
SOHO Ethernet Switch Series
Expanding Wired Connectivity for SOHO Networks
The NETGEAR SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home/offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, etc. With these Plug-and-Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 ports to 48 ports, these switches also support energy saving technologies to help you save power and money.
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Full duplex |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
0.128 MB |
| Packet forwarding rate (1 Gbps) |
1448000 pps |
| Jumbo frames |
9216 |
| Jumbo frames support |
Yes |
| Latency (1 Gbps) |
2.6 µs |
| Switching capacity |
16 Gbit/s |
| MAC address table |
2000 entries |
| Security |
| Queue scheduling algorithms |
Weighted Round Robin (WRR) |
| Design |
| Wall mountable |
Yes |
| LED indicators |
Activity, Link, Power |
| Housing material |
Metal |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
No |
| Performance |
| Mean time between failures (MTBF) |
3711898 h |
| Fanless |
Yes |
| Power |
| Power consumption (max) |
3.04 W |
| Input current |
0.5 A |
| DC input voltage |
12 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
10.4 BTU/h |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 90% |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
390 g |
| Height |
29 mm |
| Depth |
101 mm |
| Width |
158 mm |
| Packaging data |
| Package weight |
648 g |
| Package height |
60 mm |
| Package depth |
228 mm |
| Package width |
192 mm |
| Certificates |
| Certification |
CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, KC, CB, CE LVD |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
