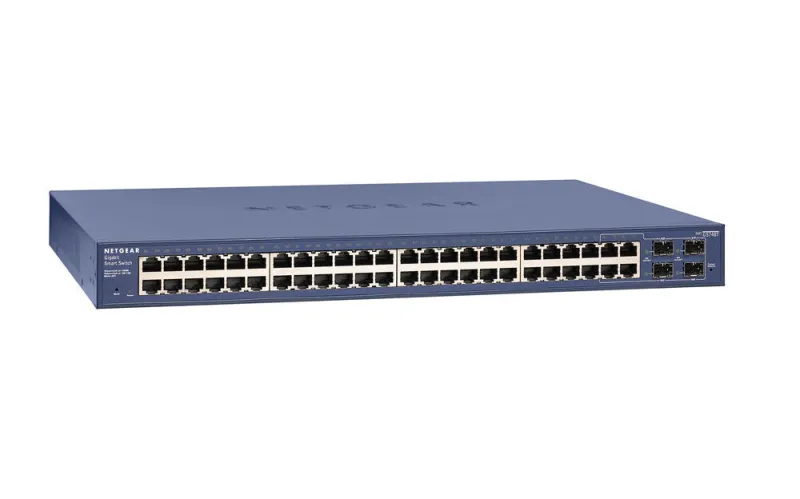

NETGEAR GS748T Managed L2+ Gigabit Ethernet (10/100/1000) Blue
- Managed L2+ Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 48
- MAC address table: 8000 entries
- Access Control List (ACL)
- Rack mounting
- AC
High Port Density Gigabit with Browser-based Management Included
Joining NETGEAR’s family of Smart Switches with simple switch management at no extra cost, this 1U high, 48-port Gigabit switch maximizes bandwidth and density for great value and capability. With 48 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode, plus four optional fiber ports, it provides a 96 Gbps backbone and connects servers or power users, delivering large amounts of multimedia, image, and video information in no time at all. Standards-based, it is ideal for combining 10, 100, and 1000 Mbps devices, as it delivers automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Four hot-swappable small form-factor pluggable (SFP)** GBIC slots provide optional fiber connectivity for greater distance. An intuitive, Web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even setup trunks, VLANs, and prioritization.
High Density
48 10/100/1000 Mbps ports deliver full-speed packet forwarding in a 1U size to migrate your network to future-proof functionality. Four SFP GBIC fiber slots provide optional fiber connectivity for greater distance.
Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.
Right Sized
Ideal for growing businesses who want the benefits of management without the cost. Compatible with Windows, MAC and Linux operating systems.***
Easygoing and Durable
Simple to set up and simple to use for effortless network monitoring and troubleshooting. Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack-mounting kit.
Like all NETGEAR ProSafe Smart Switches, the GS748T is backed by the NETGEAR ProSafe
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| SFP module slots quantity | 2 |
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Number of VLANs | 64 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.632 MB |
| Jumbo frames support | Yes |
| Latency (10-100 Mbps) | 20 µs |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Design | |
|---|---|
| Safety | UL listed (UL 1950)/cUL, IEC 950/EN 60950 |
| Product colour | Blue |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 108000 h |
| Noise level | 52 dB |
| Compatible operating systems | Windows, MAC, Linux |
| Power | |
|---|---|
| Power consumption (max) | 70 W |
| Power consumption (typical) | 66 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 3000 m |
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.9 kg |
| Height | 440 mm |
| Depth | 43 mm |
| Width | 305 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| Certificates | |
|---|---|
| Certification | CE mark, commercialFCC Part 15 Class AVCCI Class AEN 55022 (CISPR 22), Class AEN 50082-1EN 55024C-Tick |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
