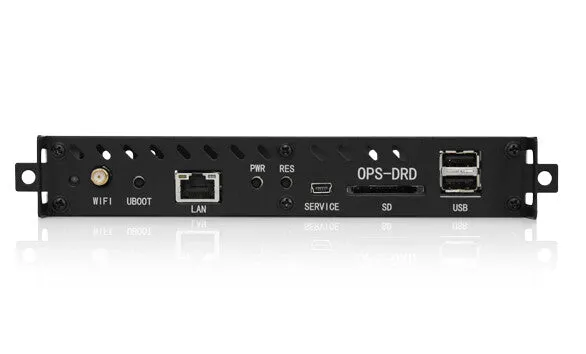

NEC OPS Digital Signage Player
The OPS Digital Signage Player is a full-featured Android Player, compatible with all NEC Large Format Displays featuring the OPS Slot and also NEC PX Series and PH Series installation projectors.
– The Quad Core CPU and the 8 Core Graphics processor provides amazing performance perfect for crisp Full HD playback
– 2 x USB 2.0, SD Card Slot, Gigabit Ethernet and W-LAN
– Ideally suited for 24/7 operation
– Easy storage extension through SD card or USB card slot
– All connectors are inside the displays including Video & Audio Signals, Power and Serial Control. No External Cables Required
– Enjoy high performance and low energy use with associated savings
| Features |
| Compatible products |
NEC OPS, PX, PH |
| Audio formats supported |
AAC, AC3, MP3 |
| Video formats supported |
H.263, H.264, MPEG1, MPEG2, MPEG4, VC-1, VP6, WMV7, WMV8, WMV9, XVID |
| Product colour |
Black |
| Processor |
| Processor cores |
4 |
| Processor frequency |
1000 MHz |
| Processor architecture |
Cortex-A7 |
| Built-in processor |
Yes |
| Storage |
| Compatible memory cards |
SD, SDHC |
| Card reader integrated |
Yes |
| Total storage capacity |
8 GB |
| Storage media type |
Flash |
| Built-in storage media |
Yes |
| Memory |
| Internal memory type |
DDR3 |
| Internal memory |
2 MB |
| Video |
| Maximum video resolution |
1920 x 1080 pixels |
| HD-Ready |
Yes |
| Full HD |
Yes |
| HD type |
Full HD |
| Audio |
| Audio decoders |
DTS-HD HR, DTS-HD Master Audio, Dolby Digital 5.1, Dolby TrueHD |
| Ports & interfaces |
| RS-232C |
Yes |
| Audio (L/R) in |
1 |
| USB 2.0 ports quantity |
5 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Network |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Software |
| Operating system version |
4.2.2 |
| Operating system installed |
Android |
| Power |
| Power consumption (typical) |
12 W |
| Power consumption (standby) |
2.5 W |
| Weight & dimensions |
| Weight |
520 g |
| Height |
30 mm |
| Depth |
119 mm |
| Width |
200 mm |
| Packaging data |
| Package weight |
980 g |
| Package height |
194 mm |
| Package depth |
105 mm |
| Package width |
280 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
