MSI Pro AP162T ADL Intel N100 All in One PC, (4GB RAM, 128GB SSD, Windows 11PRO), 15.6 Inch Single-Resistive touch Screen/UHD Graphics/Dual COM Port/LPT Port/Dual LAN/VGA/WiFi 5/BT 5.1/VESA/SD Card Reader
- Windows 11 Pro
- Intel® Alder Lake N100 processor with 4 GB DDR4 memory and 128GB SSD
- 15.6” Anti-glare screen with Resistive Single Touch Panel, which supports the applications of POS terminals in the shop
- Dual LAN design provides a second LAN backup and a safer network environment

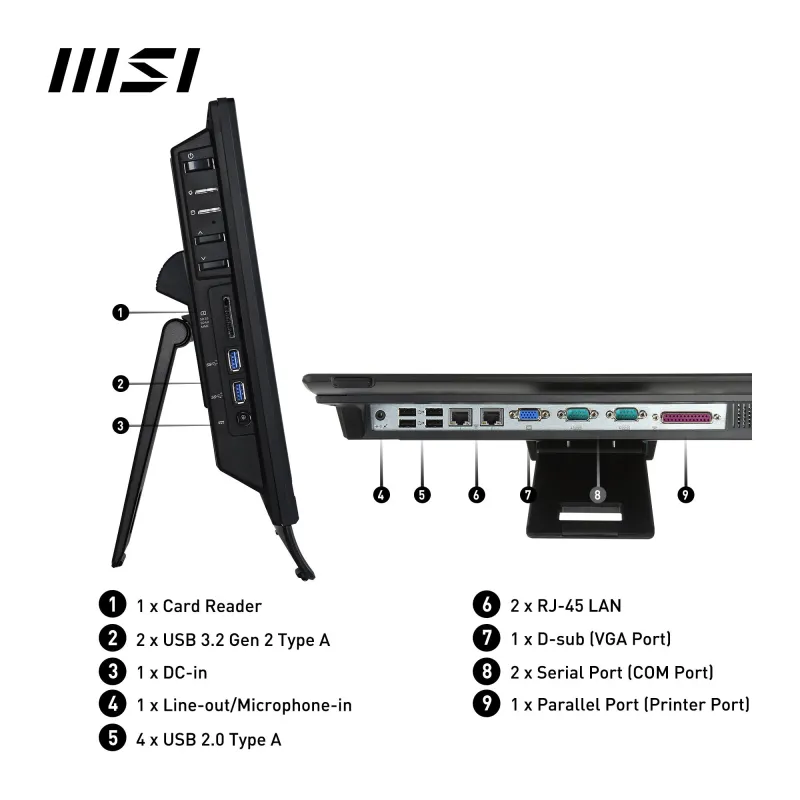

- Dual COM ports and one printer port for a barcode scanner, credit card reader, printer, cash machine, etc
- Directly connect a printer to the Parallel Port (Printer Port) built into the PRO AP162T ADL
- Extend to a second monitor with D-sub (VGA output)
- Total 6 USB ports: 2 x USB 3.2 Gen 2 Type A and 4 x USB 2.0
- Built-in Card Reader
- 2.5″ HDD Caddy provides a hassle-free maintenance solution for businesses
- Support TPM 2.0, which can secure the confidential data
- VESA mountable design

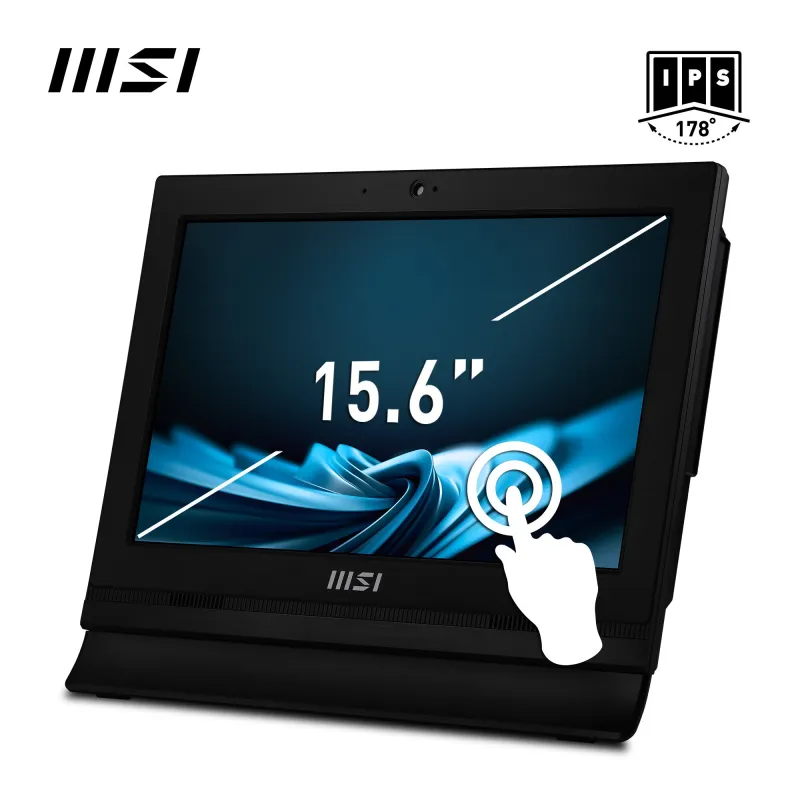

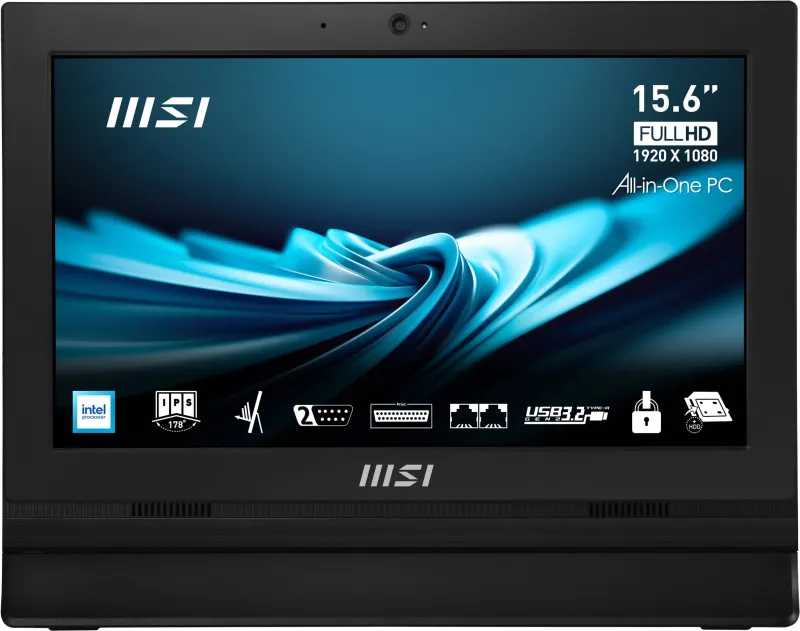

PRO AP162T ADL Series: All-in-One Monitor PC
Combining IPS-grade screen display and robust hardware, the PRO AP162T ADL is a complete desktop system – with a broad range of connectivity options and webcam suitable for POS Terminals.
Designed for office professionals and POS terminals who spend long hours in front of computer screens, the 15.6” FHD screen (1920×1080 IPS-grade panel) features anti-glare screen to help minimize eye fatigue. The monitor includes built-in speakers and a fold-out stand.
The PRO AP162T ADL N100 4GB 128GB W11P is equipped with an Intel N100 processor, 4GB of DDR4 RAM memory, and 128GB of Gen3 SSD storage. The system includes Windows 11 Pro operating system.
PERFORMANCE ASSURANCE
MIL-STD-1916 testing guarantees MSI products meet high-performance standards, providing reliable and professional experiences with desktop PCs at their best.
PERFORMANCE ASSURANCE
MIL-STD-1916 testing ensures MSI products meet high performance standards, providing a reliable gaming experience with desktops at their best.
DURABILITY
MIL-STD-1916 testing ensures every component meets strict durability standards, making MSI products capable of lasting through extended gaming and work sessions while delivering reliable performance.
PRECISION
We employ automation and advanced technology to achieve the highest level of precision. This technology-driven approach allows us to create and test products with unparalleled accuracy.
RELIABILITY
In the world of business, reliability and dependability are crucial. MSI products go through rigorous testing and quality checks to minimize the chances of failure, ensuring an uninterrupted workflow.
| Display | |
|---|---|
| Pixel pitch | 0.17925 x 0.17925 mm |
| Anti-glare screen | Yes |
| Panel type | IPS |
| Display brightness | 250 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6″) |
| Processor | |
|---|---|
| Processor base power | 6 W |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| Efficient-core base frequency | 3.4 GHz |
| Performance-core base frequency | 3.4 GHz |
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core Max Turbo Frequency | 3.4 GHz |
| Performance cores | 4 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor model | N100 |
| Processor generation | Intel N-series |
| Processor family | Intel® N |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory form factor | DIMM/SO-DIMM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory clock speed | 3200 MHz |
| Memory slots type | SO-DIMM |
| Memory slots | 1 |
| Maximum internal memory | 16 GB |
| Internal memory | 4 GB |
| Storage | |
|---|---|
| Compatible memory cards | MMC, SD |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 3.0 |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Number of storage drives supported | 1 |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| Audio | |
|---|---|
| Audio chip | Realtek ALC256 |
| Built-in microphone | Yes |
| RMS rated power | 2.5 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Camera | |
|---|---|
| Total megapixels | 1 MP |
| Built-in camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| WLAN controller manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| PowerShare | No |
| USB Sleep-and-Charge | No |
| Number of rear audio ports | 1 |
| Number of bottom USB ports | 4 |
| Number of side USB ports | 2 |
| DC-in jack | Yes |
| Combo headphone/mic port | Yes |
| Audio output | No |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 1 |
| Intel® Thunderbolt 4 | No |
| Mini DisplayPort/Thunderbolt combo port | No |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Country of origin | China |
| On/off button | Yes |
| Introduction year | 2024 |
| Panel mounting interface | 75 x 75 mm |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Pivot | Yes |
| Height adjustment | Yes |
| Frameless design | No |
| Colour name | Black |
| Housing material | Plastic |
| Product colour | Black |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Market positioning | Business |
| Cooling type | Passive |
| Product type | All-in-One PC |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| AC adapter power | 65 W |
| General | |
|---|---|
| Product family | Pro |
| Product series | 16″ |
| Certificates | |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, UKCA, UL, VCCI, cUL |
| Packaging content | |
|---|---|
| Keyboard included | No |
| Mouse included | No |
| Other features | |
|---|---|
| Warranty period | 36 year(s) |
