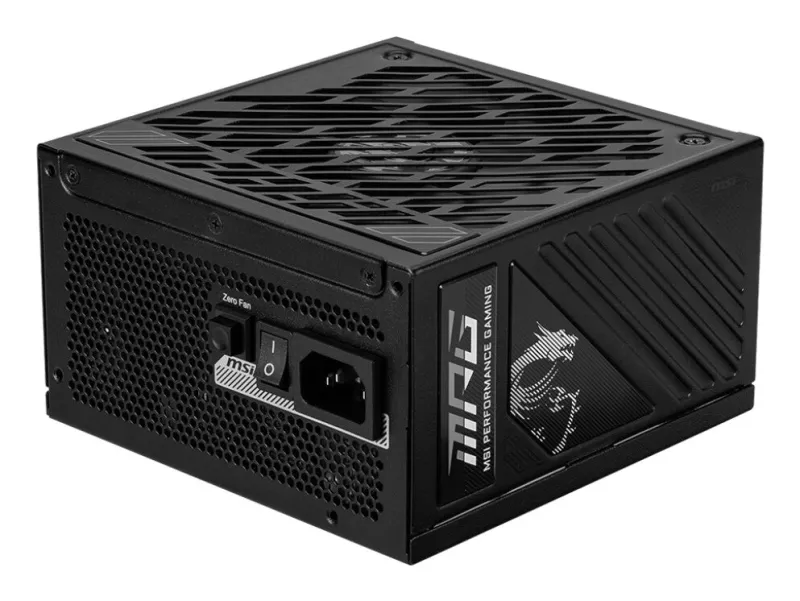

MSI MPG A850GS PCIE5 power supply unit 850 W 24-pin ATX ATX Black
- 850 W 100 – 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Gold
- Active 13.5 cm
- Black
MSI’s premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG’s commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
| Power |
| Efficiency |
90% |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
22 A |
| Max output current (+12V) |
70.8 A |
| Max output current (+3.3V) |
22 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
850 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Total power |
850 W |
| Ports & interfaces |

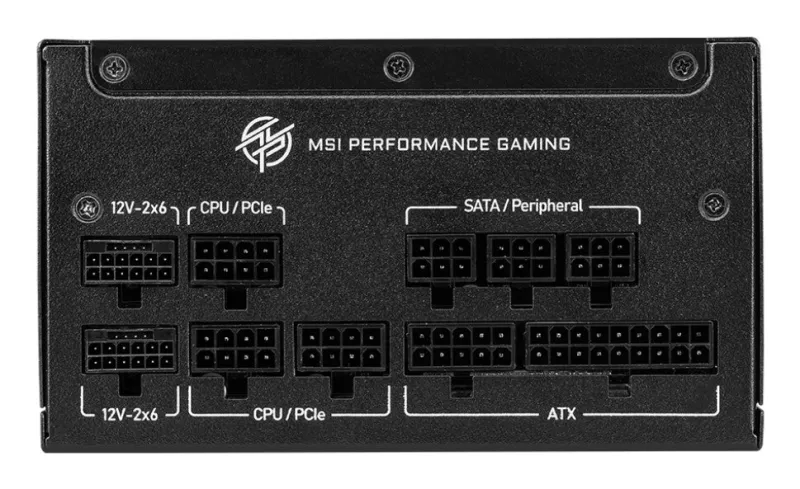

| Cabling type |
Fully-Modular |
| PCI Express power connectors (16-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
3 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
No |
| Peripheral (Molex) power connectors (4-pin) |
4 |
| Number of SATA power connectors |
8 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Bearing technology |
FDB |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| Illumination |
No |

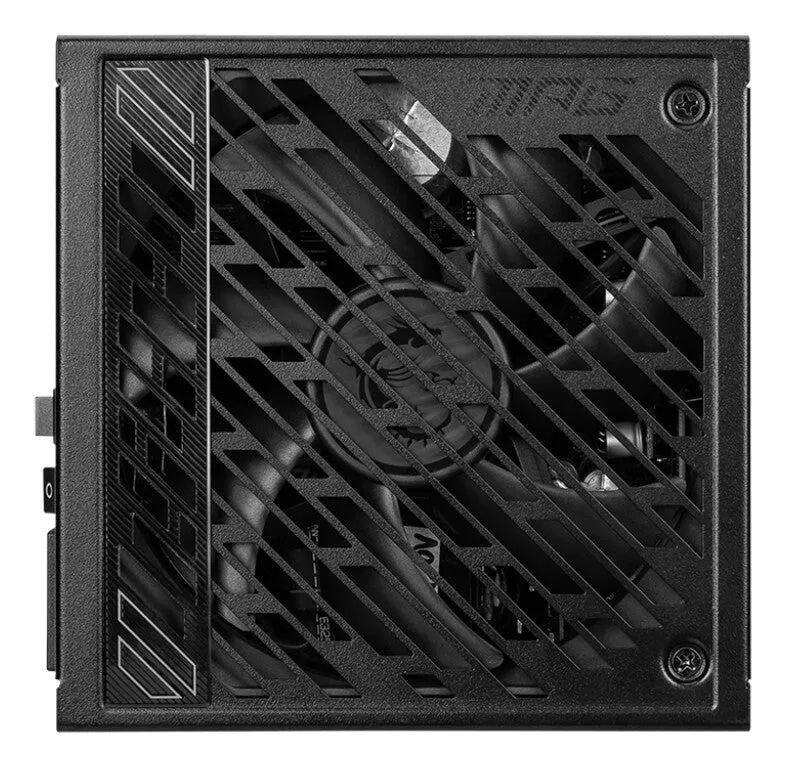

| Fan diameter |
13.5 cm |
| Cooling type |
Active |
| Product colour |
Black |
| General |
| Product family |
MPG |
| Weight & dimensions |
| Height |
86 mm |
| Depth |
150 mm |
| Width |
150 mm |
