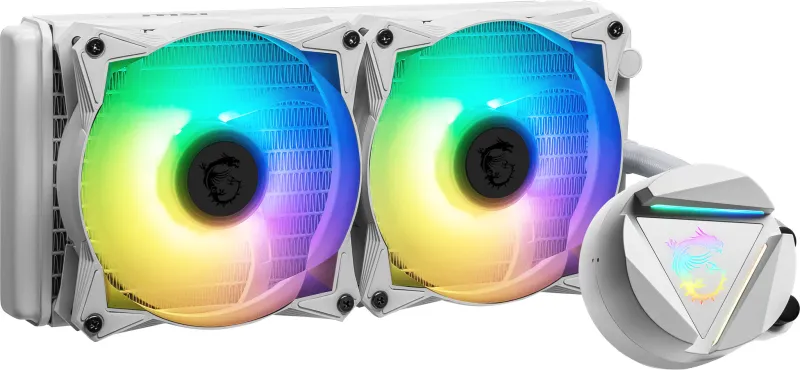

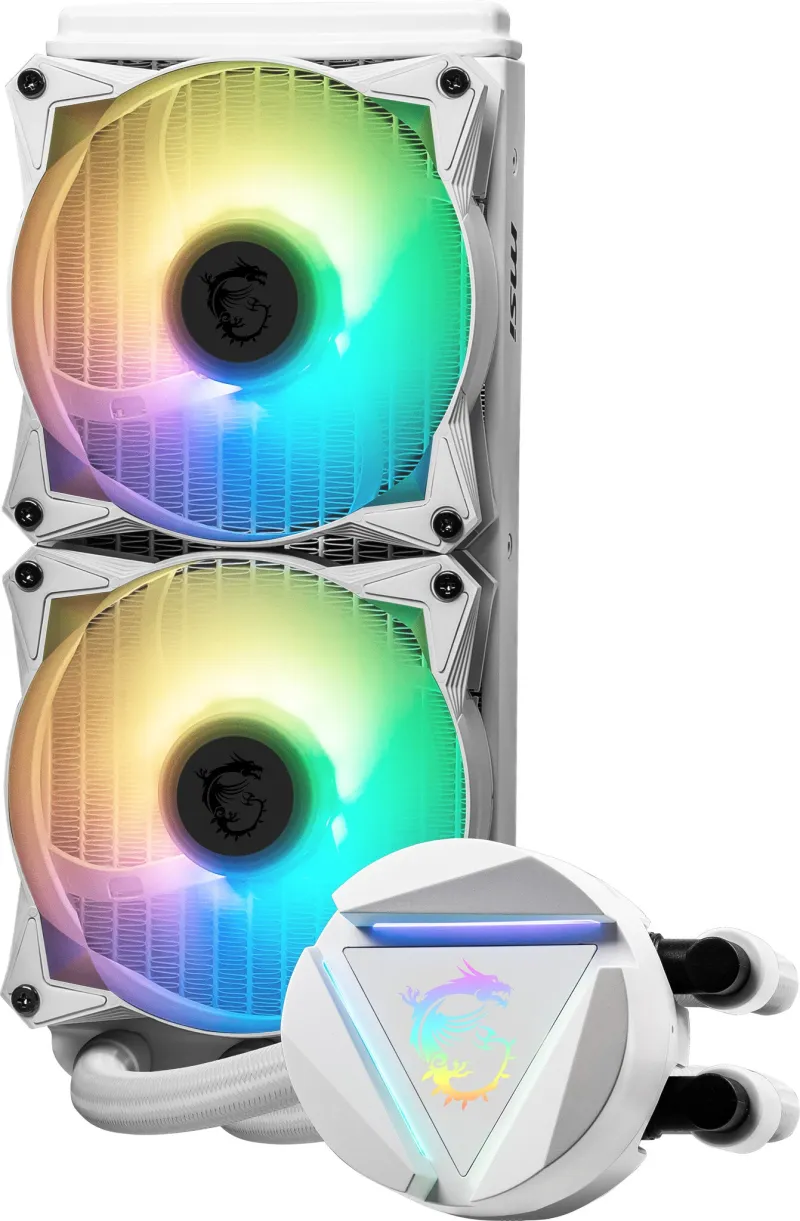

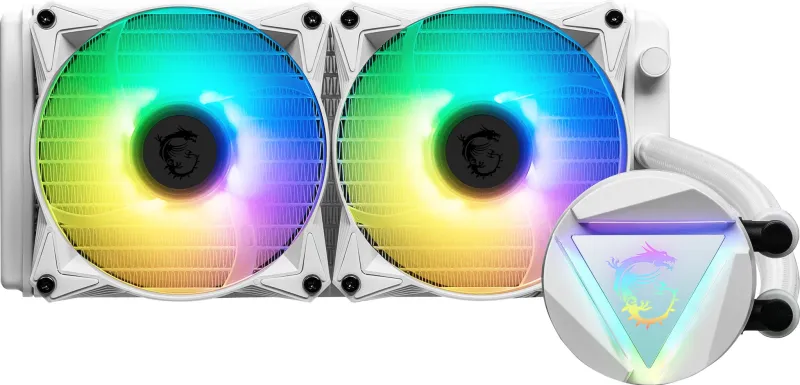

MSI MAG CORELIQUID 240R V2 WHITE Liquid CPU Cooler ‘240mm Radiator, 2x 120mm ARGB PWM Fan, ARGB lighting, Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready’
- Mount the cold plate at any orientation, turn the water blockhead up to 270 degrees
- The pump has been integrated into the radiator for sound dampening and noise reduction
- Constructed with three layers of netted plastic tubing and a reinforced mesh exterior
- A split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loop
- Compatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, 1700, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
POWERED BY MSI
Create and establish the most powerful setup with Powered by MSI products, including PC case, motherboard, liquid cooler, graphics card, and power supply unit.
HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.
LGA 1700 COMPATIBLE
The MAG CORELIQUID V2 Series liquid cooler provides out of box support for LGA 1700.
MORE SILENCE THAN EXPECTED
MAG CORELIQUID 240R V2 WHITE’s noise level is significantly lower than that of competitor’s by 10%
PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.
RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump’s life expectancy by moving it away from the heat source.
EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.
| Performance | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Ball bearing |
| Pump noise level | 18 dB |
| Bearing type | Dual ball bearing |
| Maximum air pressure | 2.39 mmH2O |
| Minimum air pressure | 0.23 mmH2O |
| Maximum airflow | 78.73 cfm |
| Minimum airflow (imperial) | 21.63 cfm |
| Noise level (high speed) | 34.3 dB |
| Noise level (low speed) | 14.3 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket AM5, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter | 2.5 cm |
| Type | Cooler |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminum |
| Product colour | White |
| Power | |
|---|---|
| Fan current | 0.15 A |
| Pump current | 0.34 mA |
| Pump power consumption | 4.08 W |
| Fan power consumption | 1.8 W |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Weight | 1.31 kg |
| Height | 137 mm |
| Depth | 317 mm |
| Radiator height | 2.7 cm |
| Radiator depth | 12 cm |
| Radiator width | 27.4 cm |
| Width | 205 mm |
| Packaging content | |
|---|---|
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
