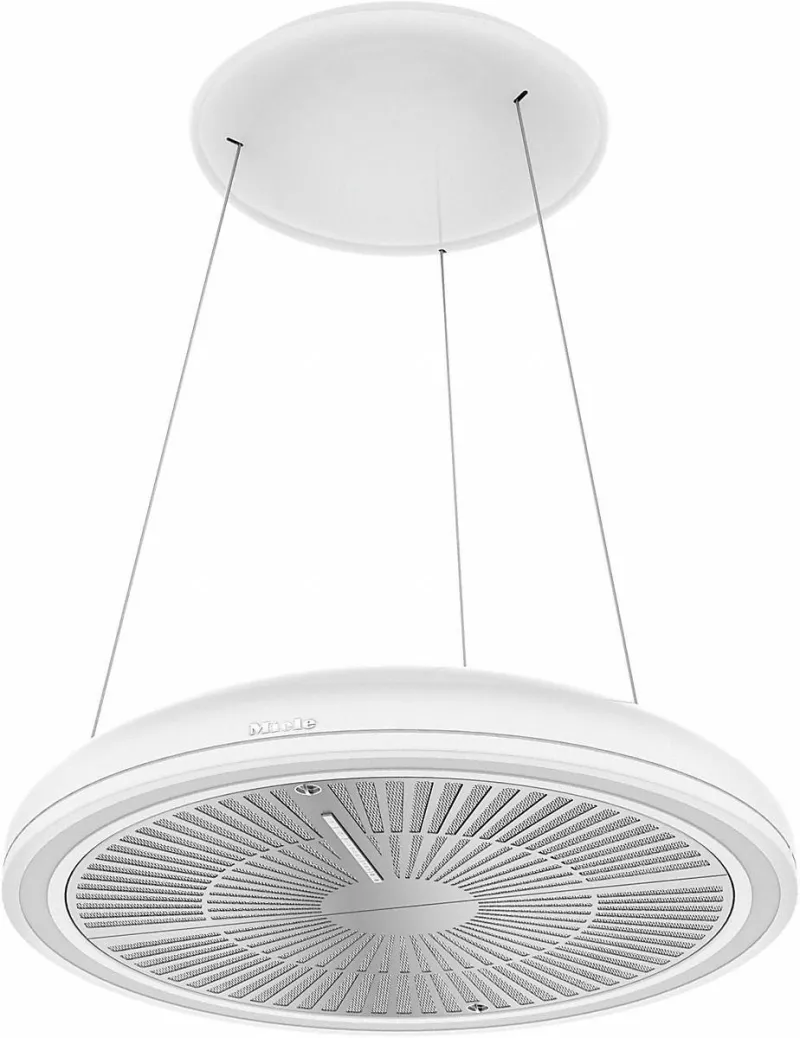

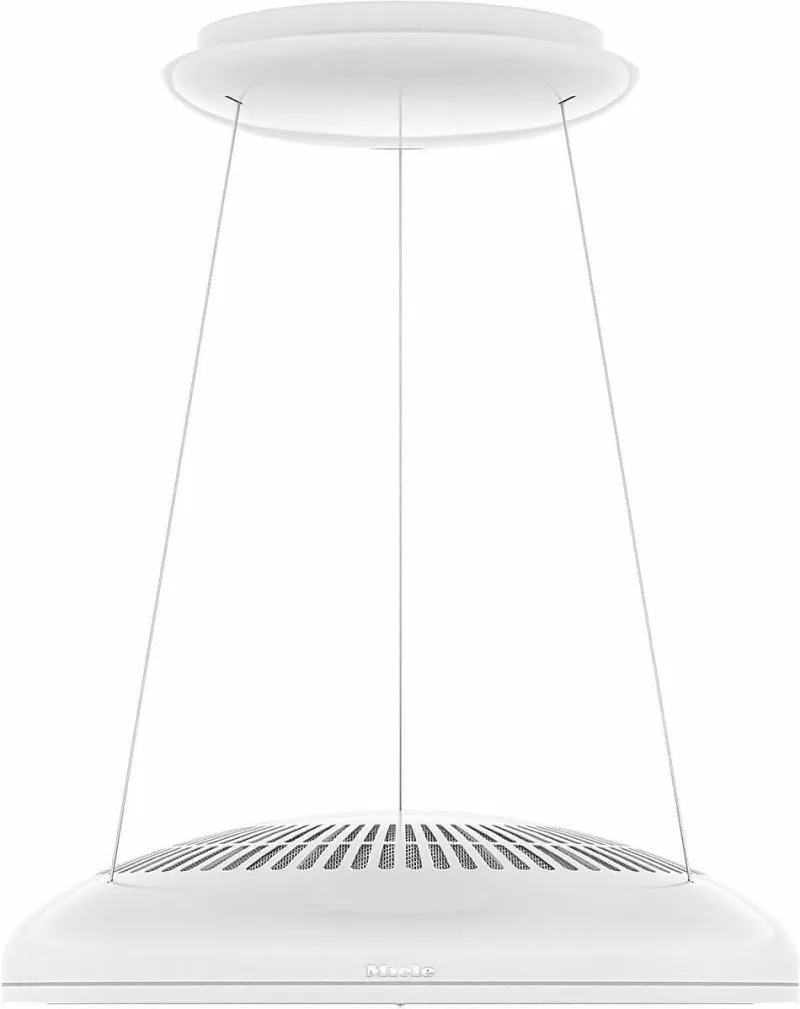

Miele Island Hood DA7078D – White
Miele Aura 3.0 White Loom Island Cooker Hood
Design
- Colour: Brilliant White
- Customisation Possible on Request
- Variable Height Available as Customisation on Request
Operating Modes
- Type of Air Guide
User Convenience
- Active Charcoal Filter Saturation Indicator Programmable
- Booster Level
- Electronic Controls
- Grease Filter Saturation Indicator Programmable
- Light-Touch Controls
- Power Levels: 3
- Programmable Booster Level Switch-off
- Run-on Time 5 / 15 Min
Cleaning Convenience
- Easy-to-clean Canopy Interior – CleanCover
Efficiency & Sustainability
- Power Management System
- Eco Package
- 3 Speeds and A Booster Power Level
- Maximum Extraction Rate (Normal Use): 420 M³/H
- Maximum Extraction Rate (Using Booster): 615 M³/H
- Maximum Noise Level (Normal Use): 65 dB
- Maximum Noise Level (Using Booster): 75 dB
- Airflow range: 270-615 M³/H
- Noise Level range: 53-75 dB
Appliance Networking
- Automatic Function Con@ctivity 3.0 (WiFi)
- Miele@mobile app, you can monitor your appliance at home or whilst out. For example you can turn the oven off, see how much cooking time is left , start your Miele robot vacuum cleaner or be notified when your dishwasher programme is complete.”>MobileControl
- ShopConn@ct
- Wificonn@ct
Filter System
- Number of Dishwasher Safe Stainless Steel Grease Filters: 2
Lighting
- Ambient Lighting
- Colour Temperature: 3,500 K
- LED
- Light Intensity: 475 Lx
Fan
- ECO Motor (DC motor)
- Single-action Fan
Air Throughput in Recirculation Mode
- Air Throughput in Level 1 (m³/h) according to EN 61591: 270
- Air Throughput in Level 2 (m³/h) according to EN 61591: 360
- Air Throughput in Level 3 (m³/h) according to EN 61591: 420
- Air Throughput in Booster Level (m³/h) according to EN 61591: 615
- Sound Power in Level 1 (dB(A) re 1 pW) according to EN 60704-3: 53
- Sound Power in Level 2 (dB(A) re 1 pW) according to EN 60704-3: 61
- Sound Power in Level 3 (dB(A) re 1 pW) according to EN 60704-3: 65
- Sound Power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3: 75
- Sound Pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13: 39
- Sound Pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13: 47
- Sound Pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13: 51
- Sound Power in Booster Level (dB(A) re 20 µPa) acc. to EN 60704-2-13: 61
Safety
- Safety Switch-off
Quality
- Tested For The Equivalent Of 20 Years Use
Technical Data
- Canopy Depth: 700 mm
- Canopy Diameter: 700 mm
- Canopy Height of Round Cooker Hoods: 170 mm
- Canopy Height: 170 mm
- Canopy Width: 700
- Fuse Rating: 10 A
- Hard-wired Connection
- Minimum Height above Electric Hobs: 450 mm
- Net Weight: 22.5 Kg
- Number of Phases: 1
- Overall Height for Recirculation Mode Cooker Hoods: 700 – 1,000 mm
- Total Rated Load: 0.07 kW
- Voltage: 230 V
Installation Notes
- Fitting Template
