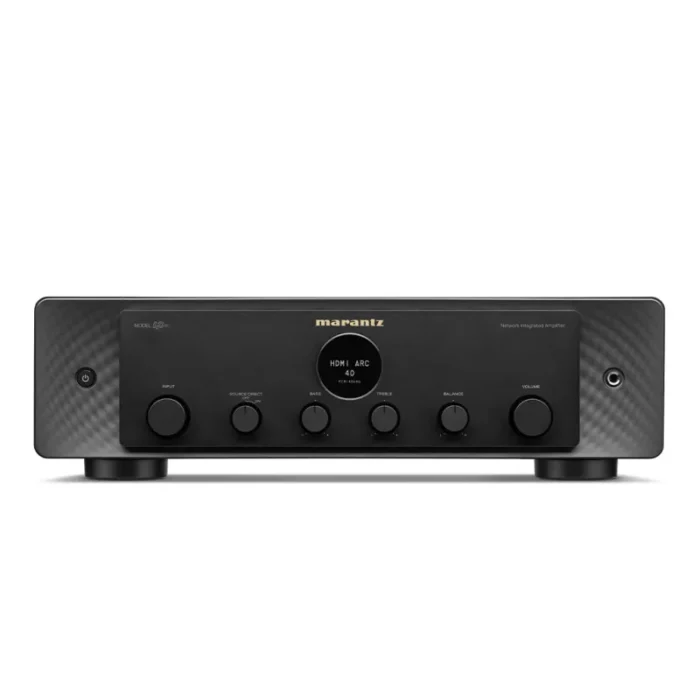

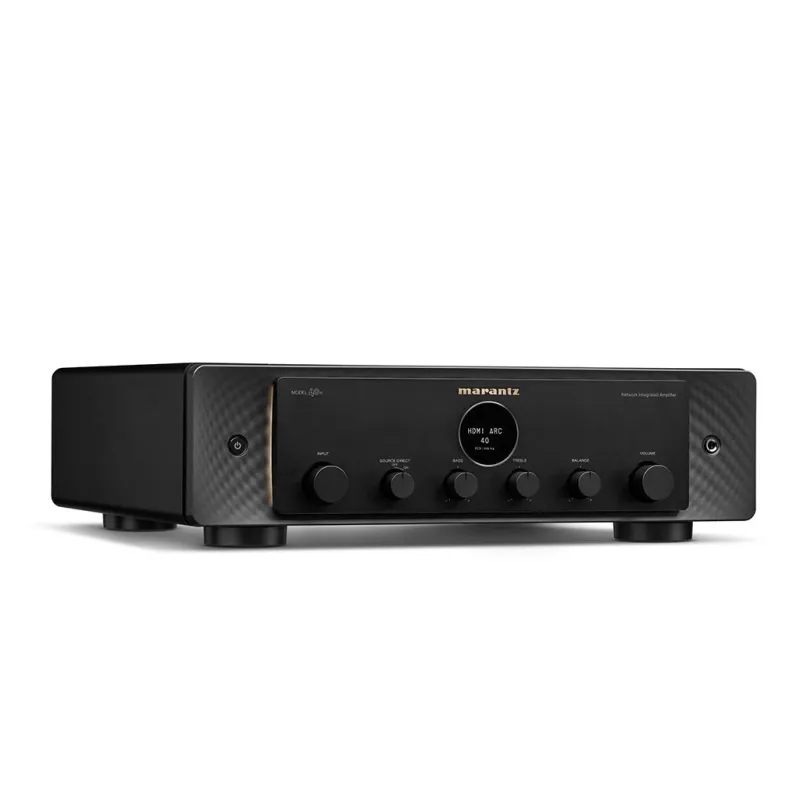

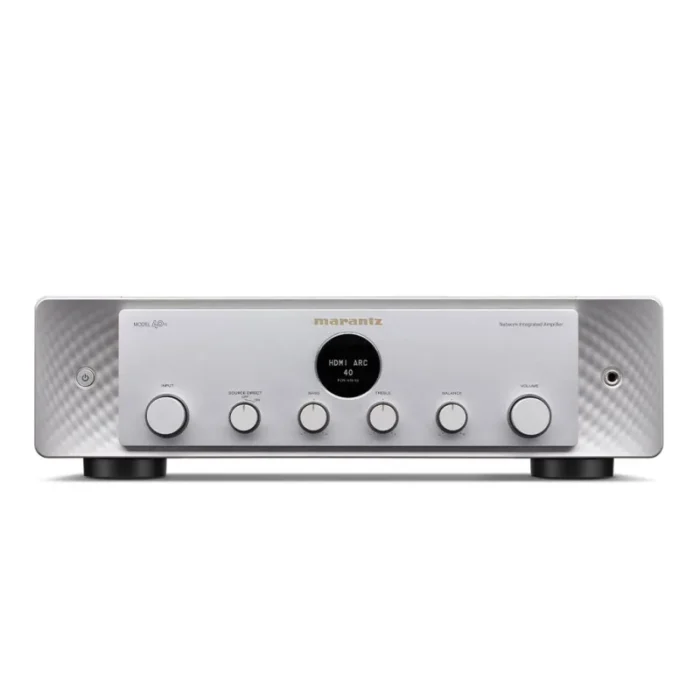

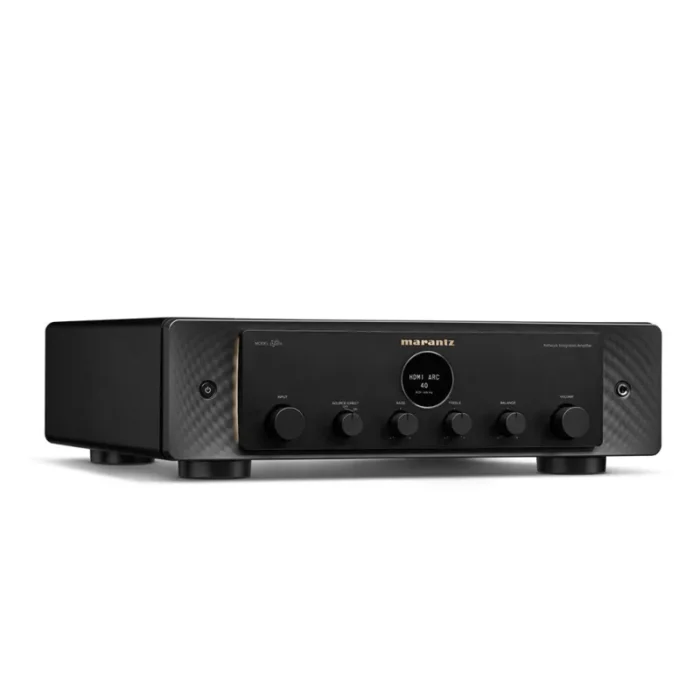

Marantz Model 40n Integrated Stereo Amplifier / Streamer
Marantz Model 40n Integrated Stereo Amplifier with Streaming Built-In
Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.
Features
The Most Musical Sound from Any Source
A full compelement of analog and digital inputs plus built-in streaming and HDMI make listening enjoyable and easy regardless of source.
Stream Millions of Hi-Resolution Songs
Stream from Spotify, Pandora, Tidal, and more or enjoy your own music file libraries. Works with Alexa, Google, and Siri.
Whole-Home Hi-Fi
Create a multiroom musical experience with the MODEL 40n as your home’s music hub.
HDMI Input Adds AV Connectivity
HDMI ARC (Audio Return Channel) adds uncommon flexibility to this stereo amplifier by enabling TV sound through your stereo.
Multiroom streaming – with HEOS Built-in
Effortlessly connect via Bluetooth, Apple AirPlay 2, or directly from the HEOS app to play all your favorites from hundreds of streaming services.
High-Resolution Digital Streaming Built-In
MODEL 40n is for those whose music collection is infinite and online. Connect to your network with Wi-Fi or ethernet. With HEOS® Built-in, you won’t need extra equipment to stream your favorite tunes. MODEL 40n supports Spotify, AirPlay 2, Apple Music, Bluetooth, Tidal, TuneIn, and more services—plus, playback of your own collection via USB-A input or on compatible home servers.
The Marantz Musical Phono EQ
The joy of vinyl playback is both audible and tactile yet requires highly specialized electronics for high performance. The Marantz Musical Phono EQ is built in so you can connect a turntable with MM cartridge directly to MODEL 40n. You’ll enjoy your favorite records and discover new ones, all without the burden of additional electronics.
Specification
Output Power |
|
| Rated Output Power | 70W + 70W (8ohm) 100W + 100W (4ohm) |
Features |
|
| Power Amplifier Circuit | HDAM-SA3 |
| Power Transformer | Double Shielded Toroidal |
| Volume | Electric |
| Bass / Treble / Mid / Balance Control | yes / yes / – / yes |
| Source Direct | yes |
| Frequency Response | 5Hz – 50kHz |
| Total Harmonic Distortion | 0.02% (20Hz – 20kHz, 8Ω) |
| Dumping Factor | 100 |
| Input Sensitivity: Phono input | 2 mV / 47 kohm |
| Input Sensitivity: CD/LINE/RECORDER | 220 mV / 20 kohm |
| Input Sensitivity: Power Amplifier input | 1.6 V / 15 kohm |
| SN Ratio | PHONO (MM): 87dBCD: 106dB |
Terminal |
|
| Phono Input | yes (MM) Marantz Musical Phono EQ |
| Ext. Pre Input (Power Amp Direct) | yes |
| Preout | no |
| Analog Input (include Phono) / REC Out (RCA) | 4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER) |
| Optical input | 1 |
| Coaxial input | 1 |
| HDMI | 1 / 0 (ARC) PCM only |
| USB A | 1 (Rear), Mass Storage Class5V/1A |
| Speaker Terminal | SPKT-1+ |
| Remote Control Bus Terminal | yes (RC-5 In / Out) |
| Subwoofer Pre-out Low Pass Filter | Selectable 40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz |
Dimensions |
|
| Packaging Dimensions (W x H x D in inches) | 21″ x 10″ x 20.6″ |
| Product Dimensions (W x H x D in inches) | 17.4″ x 5.1″ x 17″ |
