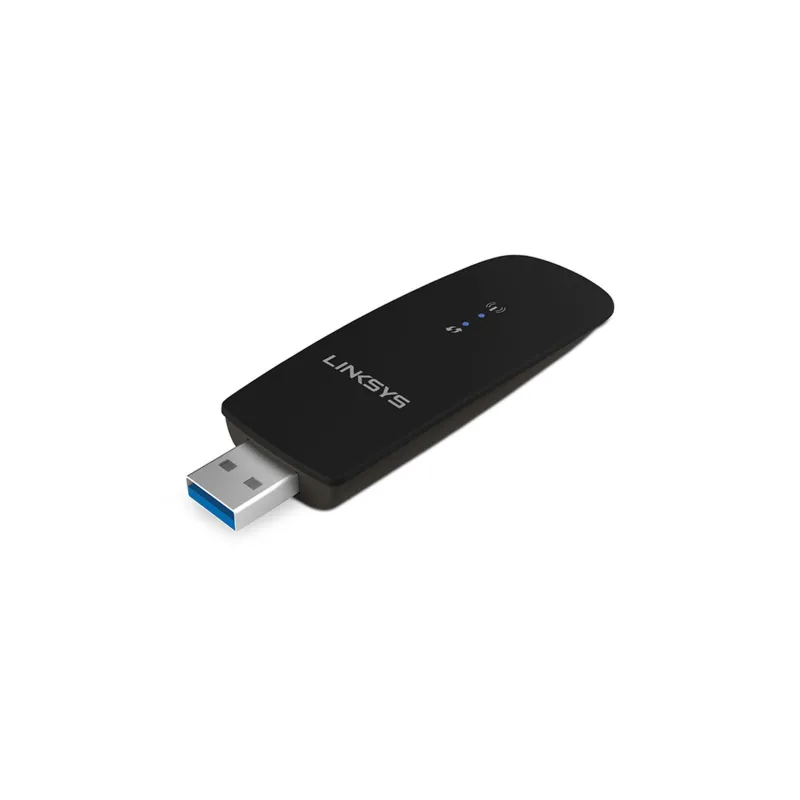

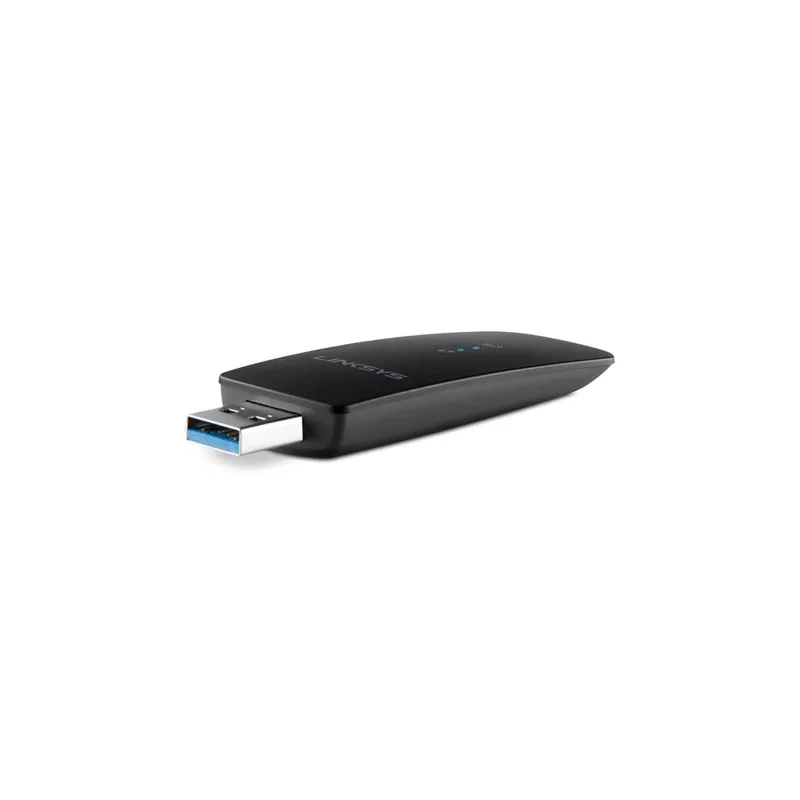

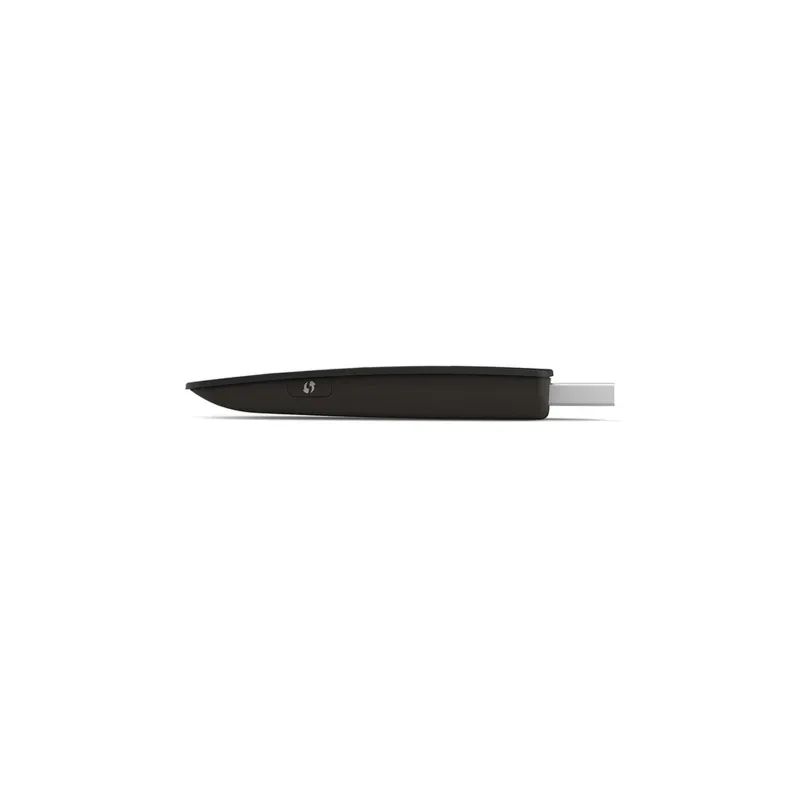

Linksys Dual-Band AC1200 WiFi 5 USB Adapter
- Upgrade your laptop or desktop to Wireless-AC
- Lightning-fast HD Video and Gaming
- Up to 867 Mbps speed on Wireless-AC 5 GHz band or Up to 300 Mbps speed on Wireless-N 2.4 GHz band
- Compatible with all Wireless AC 802.11ac routers, access points and extenders (Linksys, Belkin and others)
- Supports up to 128-bit encryption (WEP, WPA and WPA2)
- Support WPS (Wi-Fi Protected Setup) button for easy connection with wireless router or wireless access point
- Easy to use CD setup wizard and compatible with Microsoft Windows 8, 7, Vista SP1/SP2 and XP SP3
- USB 3.0
Linksys AC1200 Wireless-AC USB Adapter provides an instant upgrade to new, powerful Wireless-AC technology. Easily and economically upgrade a laptop, ultrabook or desktop computer to next-generation Wireless-AC for rapid downloads, smoother HD media streaming and responsive gaming. The selectable dual-band AC1200 adapter is compatible with today’s electronics, and when synced with a Wireless-AC router, provides up to 867 Mbps* data transfer rates on the 4 GHz band or up to 300 Mbps* on the 2.4 GHz band. It is also USB 3.0 capable, and will perform up to 10 times faster than USB 2.0 when plugged into a USB 3.0 port. Easy setup will have users immediately experiencing a faster Wi-Fi connection with better range.
Why Wireless-AC?
Wireless-AC is engineered to move more data faster—up to three times faster than Wireless-N. The result is smooth video streaming, more responsive gaming experiences and all-around improved connectivity. Faster data rates are achieved by using higher modulation (256- QAM for AC vs. 64-QAM for N) that allows much more data to be transmitted within the same time period. Wireless-AC also provides twice the channel bandwidth of Wireless-N and means that your data can travel on multiple parallel paths. Your mobile devices also gain extended battery life by achieving optimal transfer speeds. Wireless-AC is backward-compatible with a/b/g/n wireless protocols.
– Selectable Dual Band (2.4 or 5 GHz)
– Operates on either band to help avoid interference.
– USB 3.0 Capable
– USB 3.0 transfer rates are 10x faster than USB 2.0.
– Advanced Wireless Security
– Safeguard your network with wireless WPA/WPA2 encryption and Wi-Fi Protected Setup.
– Easy Setup
– Features setup wizard and Wi-Fi Protected Setup for quick installation.
| Ports & interfaces |
| Interface |
USB |
| Host interface |
Wireless |
| Connectivity technology |
Wireless |
| Network |
| Security algorithms |
128-bit WEP, WEP, WPA, WPA2, WPS |
| WLAN data transfer rates supported |
300,867 Mbit/s |
| Wi-Fi standards |
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Frequency range |
2.4 – 5 GHz |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate |
867 Mbit/s |
| Design |
| Antenna |
Yes |
| Product colour |
Black |
| Component for |
PC/Laptop |
| Internal |
No |
| System requirements |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
| Height |
11 mm |
| Depth |
89 mm |
| Width |
30 mm |
| Packaging data |
| Package height |
136 mm |
| Package depth |
56 mm |
| Package width |
218 mm |
| Packaging content |
| Quick installation guide |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
