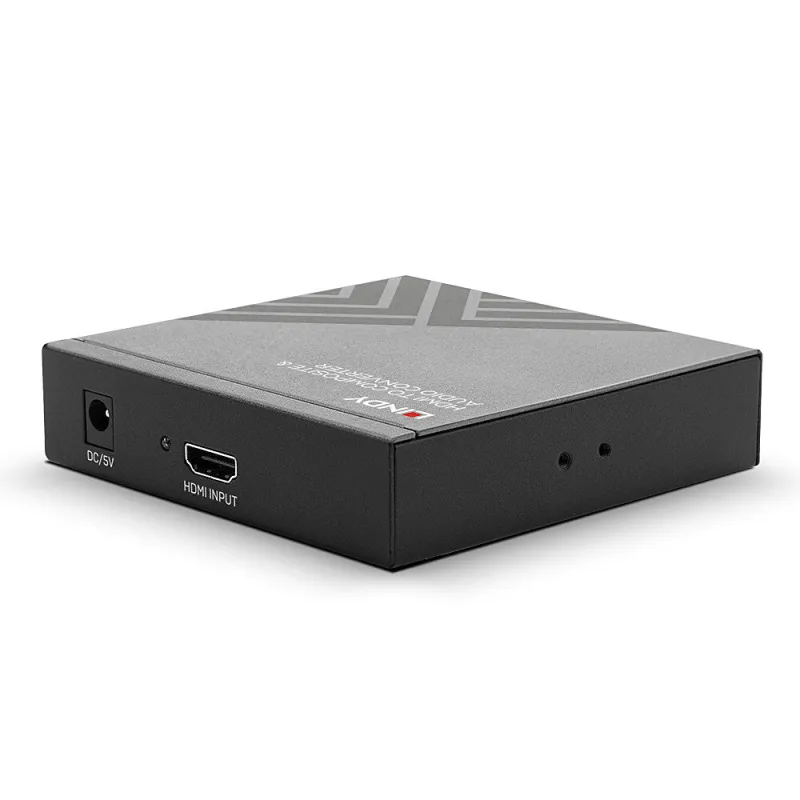

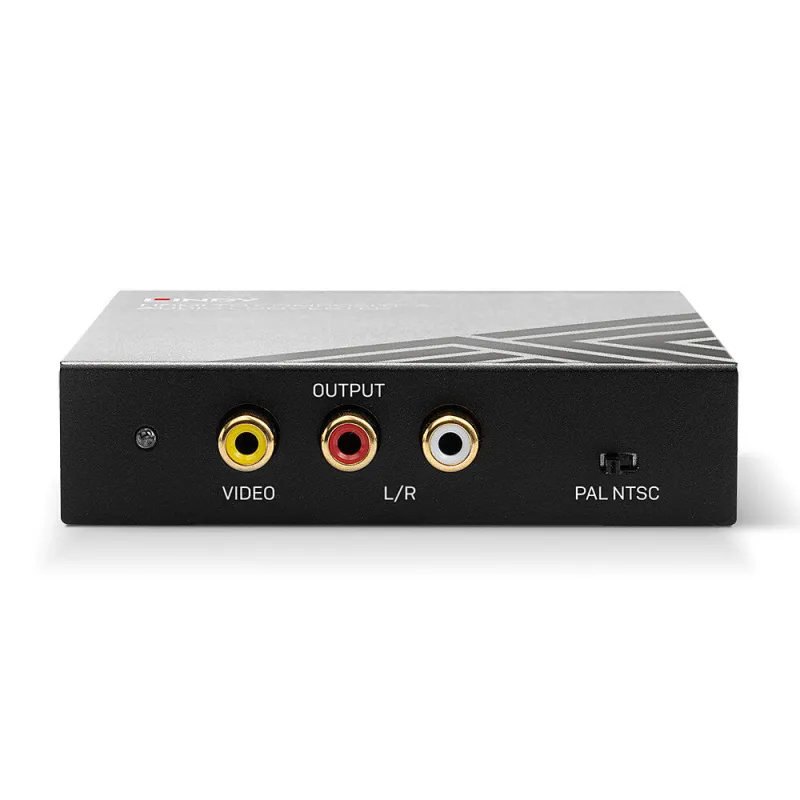

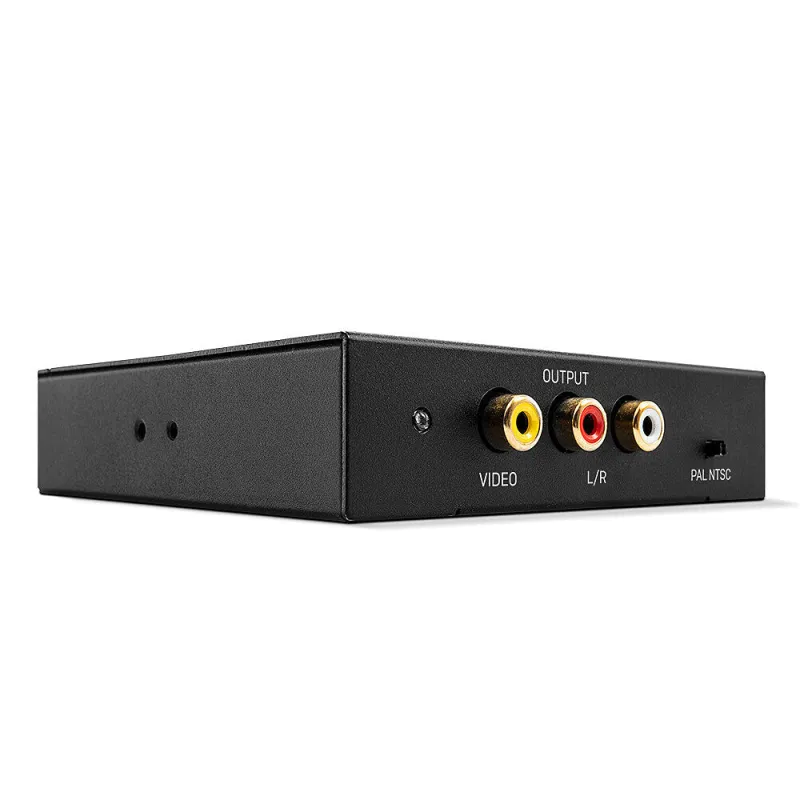

Lindy HDMI to Composite and Stereo Audio Converter
- Connects a digital HDMI source device to composite PAL or NTSC displays
- Supports HDMI resolutions up to 1920×1080 @ 60Hz
- Integrated switching controls allow the user to quickly alternate between output formats.
- Professional compact design provides flexibility for installation.
- 2-year warranty
The Lindy HDMI to Composite and Stereo Audio Converter is a compact device which simply connects modern digital AV equipment, to analogue displays. Ideal for use in presentations, tradeshows, retail and entertainment when newer HDMI devices must be connected to legacy displays and projectors.
This easy to use, compact device supports Full HD input resolutions and audio from HDMI and converts this into Composite and Stereo audio signals. Simple, integrated controls allow the user to quickly switch between output video formats depending on the display.
Please note: The HDMI Standard does not allow analogue conversion of HDCP protected video content. For HDCP protected HDMI signals, no output on the analogue video or audio connectors will be generated.
| Features |
| Certification |
CE, FCC, RoHS, REACH, California Proposition 65 |
| Housing material |
Metal |
| Video |
| Analog signal format system |
NTSC, PAL |
| Supported video modes |
480i, 576i |
| Maximum video resolution |
1920 x 1080 pixels |
| Ports & interfaces |
| DC-in jack |
Yes |
| Host interface |
HDMI |
| Output interface |
Composite + RCA |
| Operational conditions |
| Operating relative humidity (H-H) |
10 – 85% |
| Storage temperature (T-T) |
-10 – 70 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Weight |
295 g |
| Height |
25 mm |
| Depth |
100 mm |
| Width |
102 mm |
| Packaging data |
| Package weight |
315 g |
| Package height |
55 mm |
| Package depth |
190 mm |
| Package width |
220 mm |
| Manual |
Yes |
| Cables included |
DC |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
