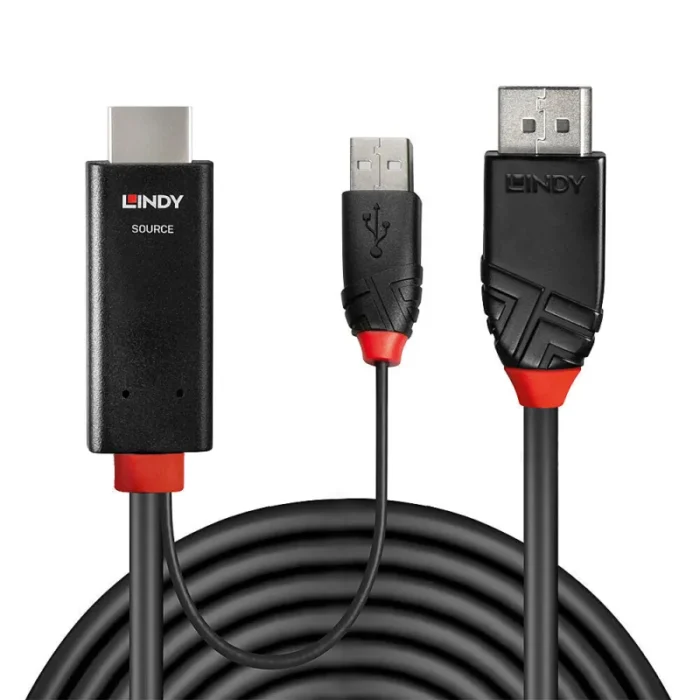

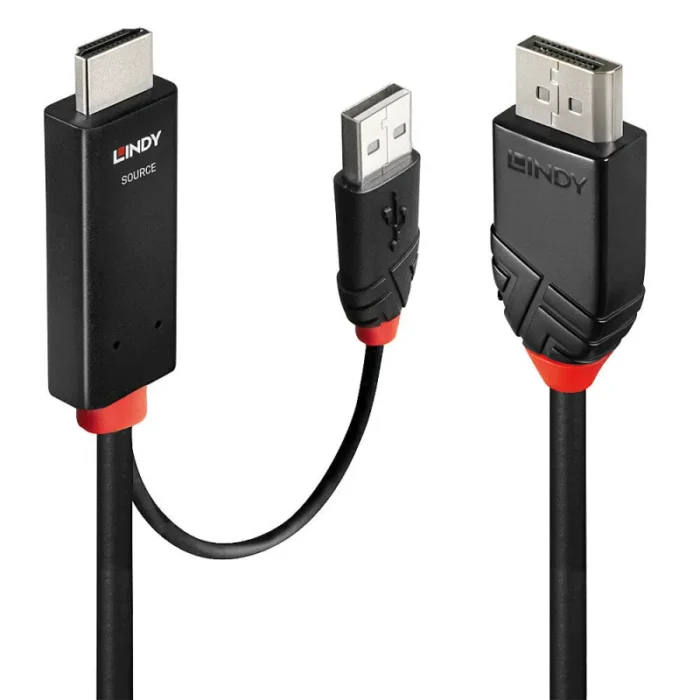

Lindy 1m HDMI to DisplayPort Cable
- Connect an HDMI equipped device to a DisplayPort display
- Supports high quality resolutions up to 4K@60Hz
- Compliant with HDMI 2.0 and DisplayPort 1.2 specification
- High Dynamic Range support provides deeper blacks, brighter whites and a wider colour spectrum
- 2 year warranty
Lindy’s HDMI to DisplayPort cables combine sleek, modern design with superior performance to provide a high quality conversion of HDMI signals to output to a DisplayPort display. This range of active cables come with a chipset housed neatly inside the HDMI connector to ensure a consistently reliable connection between HDMI media players, games consoles and PCs to DisplayPort monitors.
With support for resolutions up to 4096×2160@60Hz, these cables are great for creating innovative working environments, engaging educational workstations or immersive gaming experiences, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video. The additional USB Type A connector can optionally be used to amplify the power to ensure a reliable connection in all situations.
| Features | |
|---|---|
| Colour sampling | 4:2:2, 4:4:4 |
| AWG wire size | 30 |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Cable type | Round cable |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor material | Tinned copper |
| Product colour | Black |
| Bend radius (min) | 3.6 cm |
| Data transfer rate | 21.6 Gbit/s |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Maximum resolution | 4096 x 2160 pixels |
| High Dynamic Range (HDR) supported | Yes |
| DisplayPort version | 1.2 |
| HDMI version | 2.0 |
| Connector contacts plating | Nickel |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | HDMI + USB Type-A |
| Cable length | 1 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 80 °C |
| Operating temperature (T-T) | -20 – 40 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Connector 3 dimensions (WxDxH) | 38.9 x 19.7 x 12 mm |
| Connector 2 dimensions (WxDxH) | 35 x 15.5 x 7.8 mm |
| Connector 1 dimensions (WxDxH) | 50 x 20.9 x 12.7 mm |
| Cable diameter | 6 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
