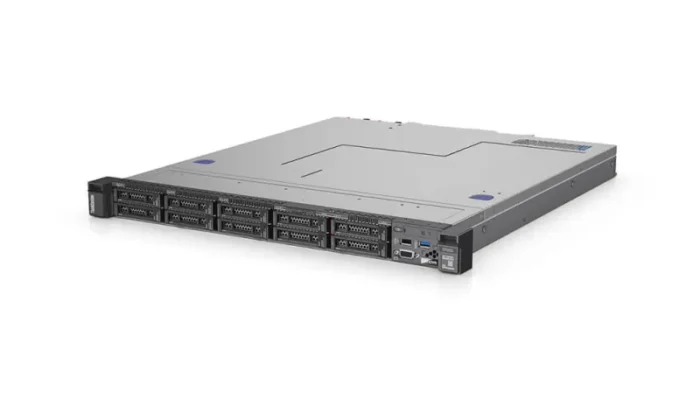

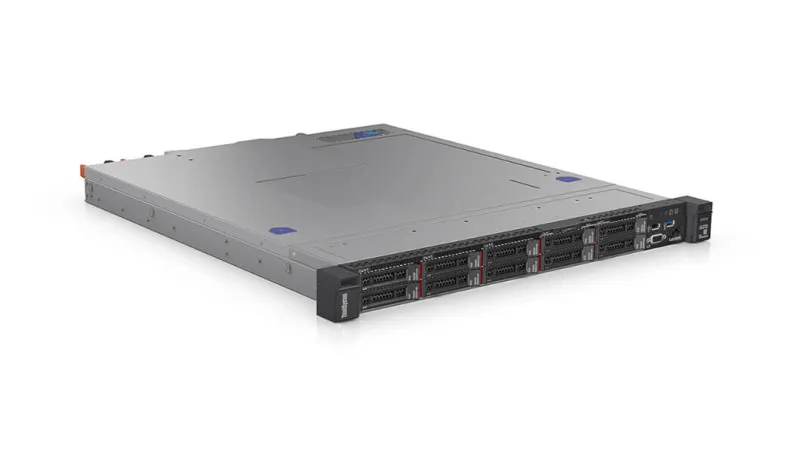

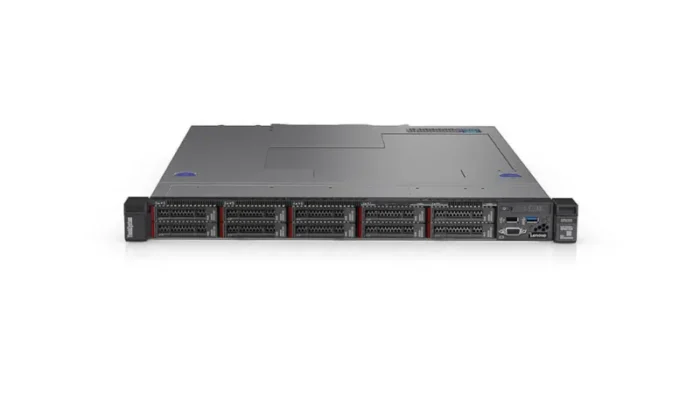

Lenovo ThinkSystem SR250 server 0 GB Rack (1U) Intel Xeon E E-2278G 3.4 GHz 16 GB DDR4-SDRAM 450 W
- Intel Xeon E E-2278G 3.4 GHz
- 16 GB 2666 MHz DDR4-SDRAM 1 x 16
- Rack (1U) 450 W
Powerful and secure
The Lenovo ThinkSystem SR250 is a single-processor rack server that integrates power, reliability, flexibility, and security in a compact 1U form factor suited for the small-to-medium business.
The SR250 boasts a high price-performance ratio with a combination of high-processing capability and dependability with next-generation Intel® Xeon® E-2100 processors and support for an array of storage configurations.
It provides the flexibility to handle workloads including web serving, virtualization, entry-cloud and data-analytics applications, while integrated Intel Software Guard Extensions (SGX) secure the SR250 for blockchain applications.
Flexible and scalable
The ThinkSystem SR250 adapts to multiple environments and workloads in which a shorter-depth rack accommodates space-constrained environments. Also, lightning-fast TruDDR4 memory, GPU support, and an array of storage options, including low-latency NVMe drives, afford serious storage and workload flexibility.
Superb I/O capability via multiple network interface ports and a dedicated management port handle heavy network communications and enable faster data transmission.
The SR250 also features the option for either a fixed or redundant power supply unit depending on the data center deployment model. These options allow users to configure the SR250 to specifications appropriate for their distinct enterprise use and optimize server utility for future scalability.
Simple management
The ThinkSystem SR250 features the Lenovo XClarity Controller, the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks.
Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95 percent versus manual operation. And running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
| Processor | |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Embedded options available | No |
| Number of processors installed | 1 |
| Motherboard chipset | Intel C246 |
| Processor cache | 16 MB |
| Processor boost frequency | 5 GHz |
| Processor frequency | 3.4 GHz |
| Processor model | E-2278G |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID support | Yes |
| SSD interface | NVMe, NVMe 3.0, PCI Express 3.0 |
| NVMe | Yes |
| HDD interface | Serial ATA III, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 24 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel UHD Graphics P630 |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Rack rails | Yes |
| Product colour | Black |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016/2019, Red Hat Enterprise Linux 7/8, SUSE Linux Enterprise Server 12/15, VMware vSphere (ESXi) 6.5/6.7/7.0 |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel Clear Video Technology | Yes |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of redundant power supplies supported | 2 |
| Power supply | 450 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ThinkSystem |
| Weight & dimensions | |
|---|---|
| Weight | 9.1 kg |
| Depth | 498 mm |
| Height | 43 mm |
| Width | 434 mm |
