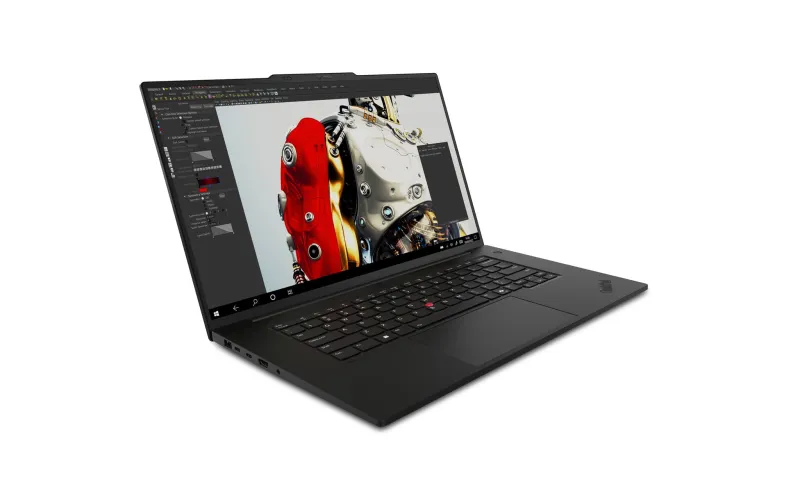

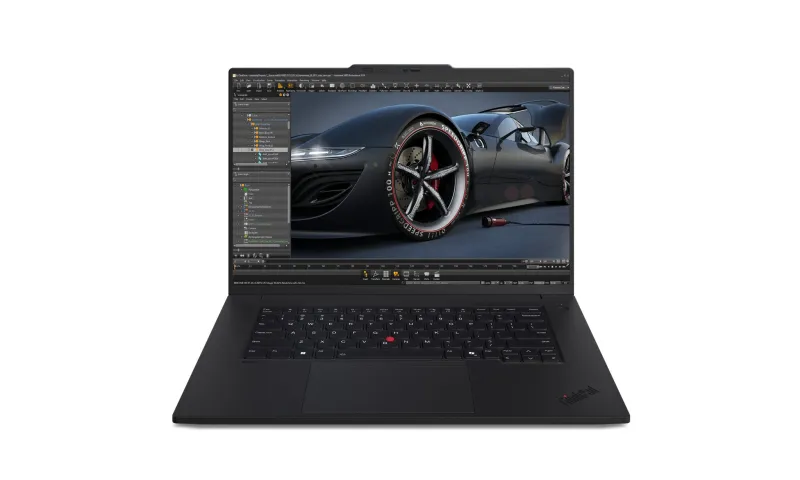

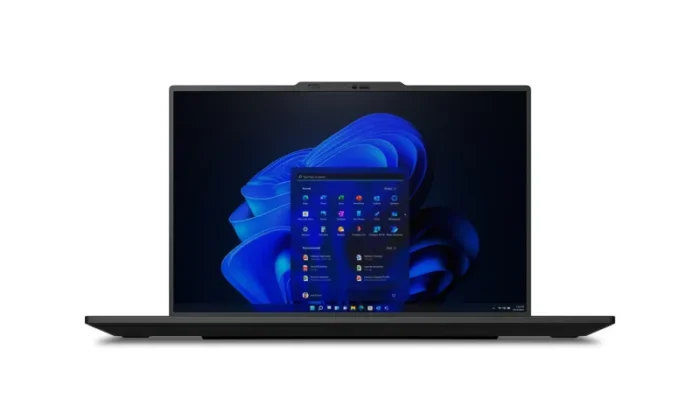

Lenovo ThinkPad P1 Gen 7 Intel Core Ultra 9 185H Mobile workstation 40.6 cm (16″) Touchscreen WQUXGA 64 GB LPDDR5x-SDRAM 2 TB SSD NVIDIA RTX 3000 Ada Wi-Fi 7 (802.11be) Windows 11 Pro UK English Black
- Intel Core Ultra 9 185H, 16C (6P + 8E + 2LPE)/22T, Max Turbo up to 5.1GHz, 24MB
- 16″ WQUXGA (3840×2400) OLED 400nits Anti-reflection / Anti-smudge 100% DCI-P3 60Hz DisplayHDR 400 Dolby Vision TÜV Eyesafe Touch
- 64GB LPCAMM2 LPDDR5x-7500
- 2TB SSD M.2 2280 PCIe 4.0×4 NVMe Opal 2.0
- NVIDIA RTX 3000 Ada Generation 8GB
- Windows 11 Pro
The Power You Need in an Advanced AI-Ready System
– 16ʺ mobile workstation for AI-assisted workflows & professional-level graphics
– Enterprise-grade security, manageability & reliability with up to Intel vPro®
– True mobility, sleek design, & advanced Flex Cooling System for long-term reliability
– High-capacity LPCAMM2 memory to run multiple applications simultaneously
– Seamless collaborations through boosted connectivity & network capacity
| Design |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Colour name |
Black |
| Product colour |
Black |
| Product type |
Mobile workstation |
| Display |
| High Dynamic Range (HDR) technology |
Dolby Vision, DisplayHDR 400 |
| High Dynamic Range (HDR) supported |
Yes |
| Maximum refresh rate |
60 Hz |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
400 cd/m² |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
OLED |
| HD type |
WQUXGA |
| Touchscreen |
Yes |
| Display resolution |
3840 x 2400 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor base power |
45 W |
| Maximum turbo power |
115 W |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
1000 MHz |
| Efficient-core base frequency |
1.8 GHz |
| Performance-core base frequency |
2.3 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
5.1 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
5.1 GHz |
| Processor threads |
22 |
| Processor cores |
16 |
| Processor model |
185H |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor family |
Intel Core Ultra 9 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Maximum frequency NPU |
1.4 GHz |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Maximum internal memory |
64 GB |
| Memory clock speed |
7500 MHz |
| Internal memory type |
LPDDR5x-SDRAM |
| Internal memory |
64 GB |
| Storage |
| Compatible memory cards |
SD |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
2 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
2 TB |
| Storage media |
SSD |
| Total storage capacity |
2 TB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA RTX 3000 Ada |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio chip |
Realtek ALC3306 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Network |
| Near Field Communication (NFC) |
No |
| Bluetooth |
Yes |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Performance |
| Motherboard chipset |
Intel SoC |
| Keyboard |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
ThinkPad UltraNav |
| Software |
| Bundled software |
Intel Connectivity Performance Suite |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Battery |
| Battery capacity |
90 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
170 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Height |
17.1 mm |
| Depth |
241.2 mm |
| Width |
354.4 mm |
| Weight |
1.82 kg |
| General |
| Product family |
ThinkPad |
| Product series |
P |
