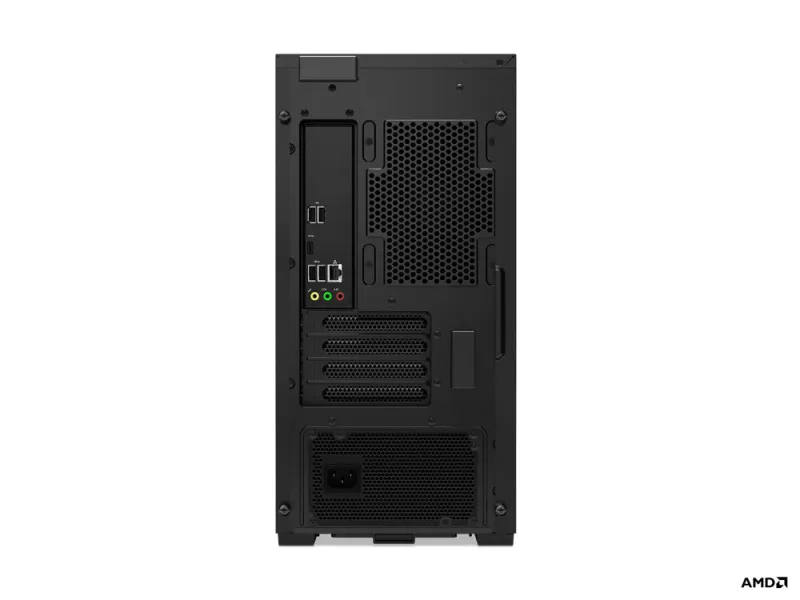

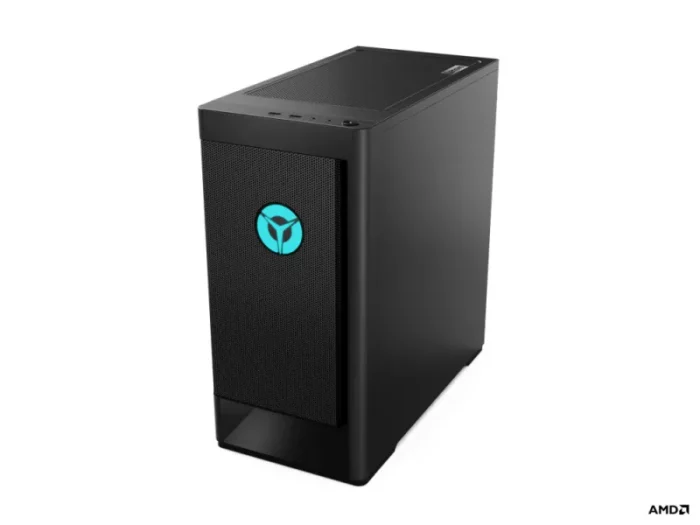

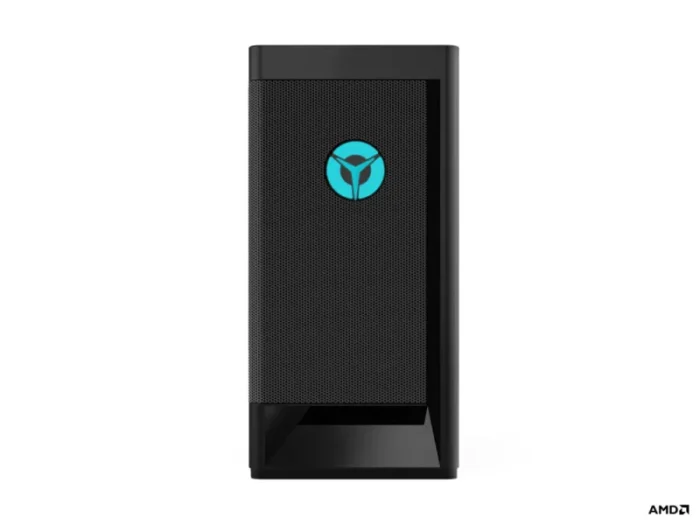

Lenovo Legion T5 AMD Ryzen™ 7 5800 16 GB DDR4-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Windows 10 Home Tower PC Black
- AMD Ryzen 7 5800 (8C/16T, 3.4/4.6GHz, 4MB L2/32MB L3)
- 2x 8GB UDIMM ARMOR DDR4-3200
- 1TB SSD M.2 2280 PCIe 3.0 NVMe
- NVIDIA GeForce RTX 3070 8GB
- Windows 10 Home 64
In a league of one
Savage power meets unmatched speed with the Legion Tower 5 (AMD). Delivering mind-blowing performance, it boasts the latest AMD Ryzen™ desktop processors and top-of-the-line NVIDIA® GeForce® or AMD Radeon™ graphics—for blazingly fast frame-rates at over 4K resolution. Pushing far beyond the upper bounds of smaller rigs, it keeps things super cool and whisper-quiet. All in, it’s a true marvel of build, design, and firepower.
| Processor |
| Number of processors installed |
1 |
| Processor cache |
32 MB |
| Processor frequency |
3.4 GHz |
| Processor boost frequency |
4.6 GHz |
| Processor cores |
8 |
| Processor model |
5800 |
| Processor generation |
AMD Ryzen 5000 Series |
| Processor family |
AMD Ryzen™ 7 |
| Processor manufacturer |
AMD |
| Memory |
| Memory clock speed |
3200 MHz |
| Memory slots |
4x DIMM |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
128 GB |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
| Graphics card HDMI ports quantity |
1 |
| Graphics card DisplayPorts quantity |
3 |
| On-board graphics card model |
Not available |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 3070 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
No |
| Discrete graphics card |
Yes |
| Network |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Line-out |
Yes |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DVI port |
No |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Design |
| Housing material |
Metal |
| Product colour |
Black |
| Placement supported |
Vertical |
| Volume |
26 L |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
No |
| Password protection type |
Power on, Supervisor |
| Password protection |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC892 |
| Motherboard chipset |
AMD B550 |
| Product type |
PC |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Certificates |
| Certification |
ErP Lot 3 |
| Weight & dimensions |
| Weight |
14 kg |
| Height |
411 mm |
| Depth |
396 mm |
| Width |
205 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| General |
| Product family |
Legion |
