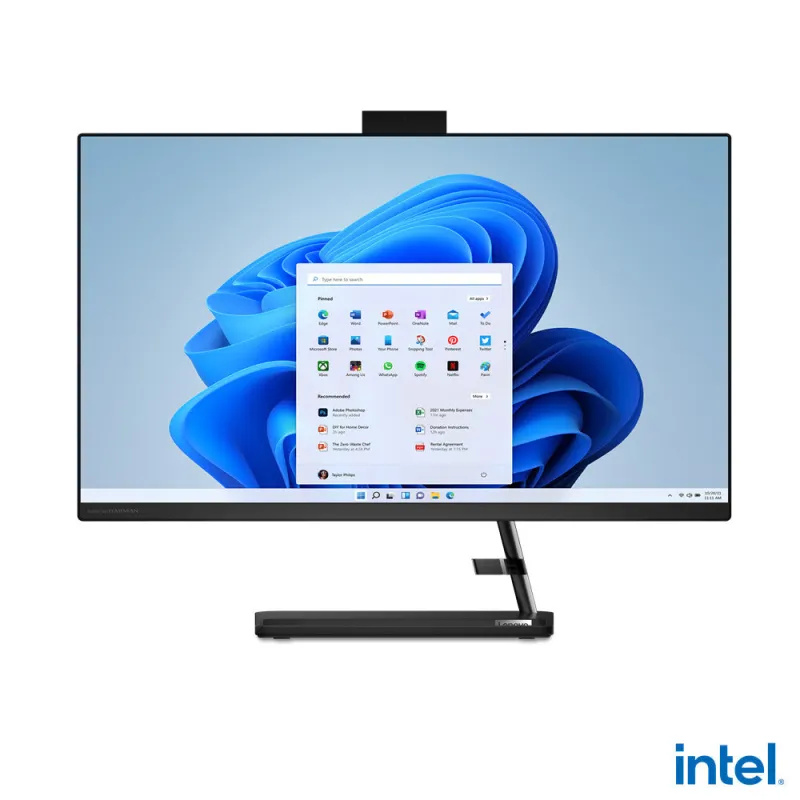

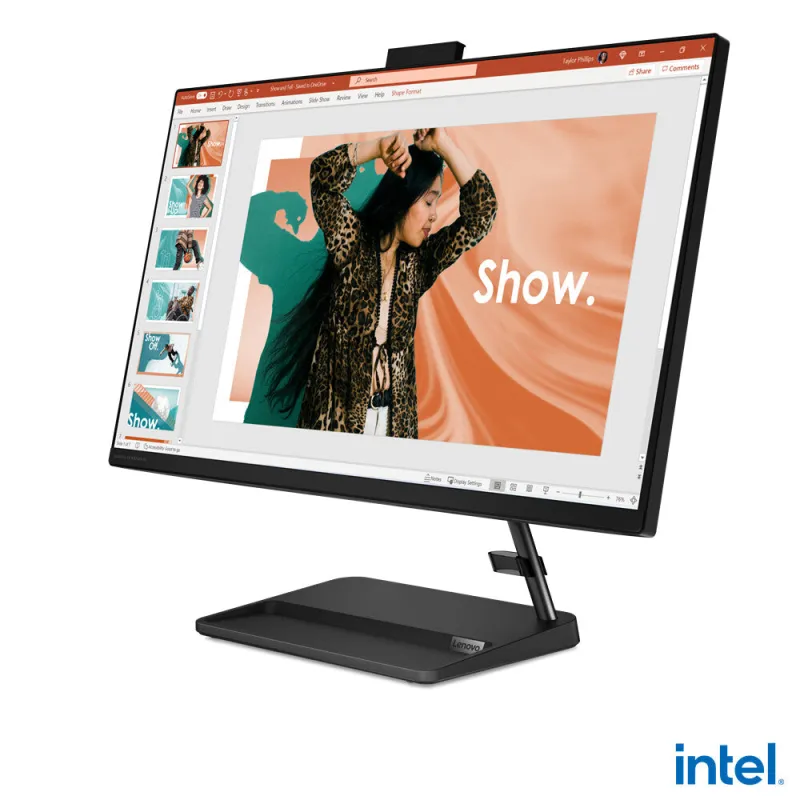

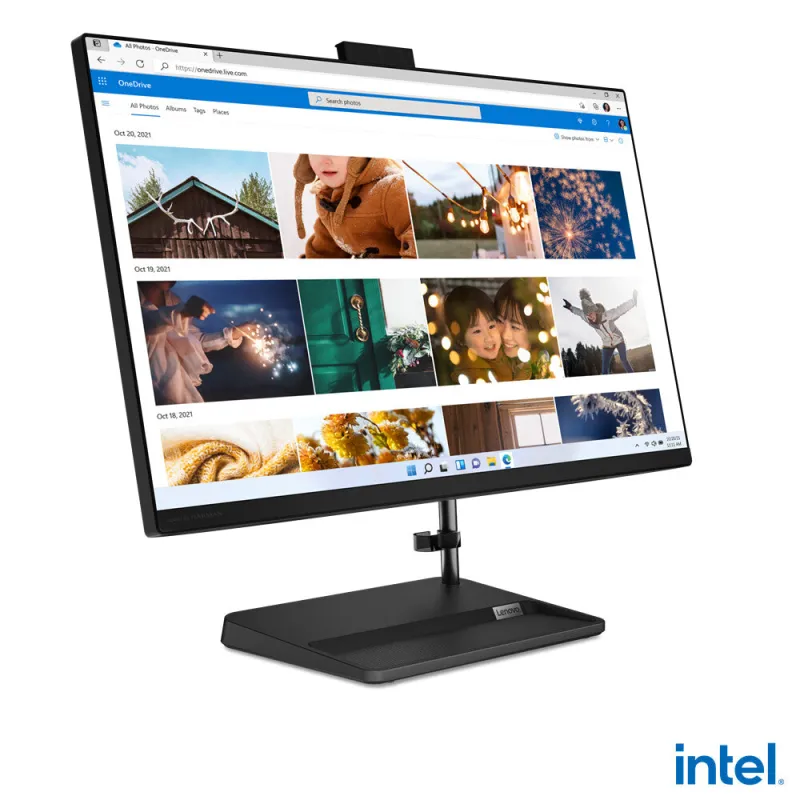

Lenovo IdeaCentre AIO 3 27IAP7 Intel® Core™ i5 i5-1235U 68.6 cm (27″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 512 GB SSD Windows 11 Home Wi-Fi 6 (802.11ax) Black
- Intel Core i5-1235U, 10C (2P + 8E)/12T, P-core 1.3/4.4GHz, E-core 0.9/3.3GHz, 12MB
- 1x 8GB SO-DIMM DDR4-3200
- 512GB SSD M.2 2280 PCIe 3.0×4 NVMe
- Intel Iris Xe Graphics Functions as UHD Graphics
- Windows 11 Home
A family PC for all generations
– 27″ all-in-one PC powered by 12th Generation Intel® Core™ processors
– Vivid IPS FHD display features optional NVIDIA® GeForce® graphics
– Harman Kardon®-certified speakers deliver room-filling audio
– Convenient facial login using high resolution webcam with built-in infrared sensor (optional)
– Integrated features that help keep your workspace clutter-free
| Display |
| Anti-glare screen |
Yes |
| Panel type |
IPS |
| Display brightness |
250 cd/m² |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
68.6 cm (27″) |
| Processor |
| Configurable TDP-down |
12 W |
| Processor cache |
12 MB |
| Processor frequency |
1.3 GHz |
| Processor boost frequency |
4.4 GHz |
| Processor cores |
10 |
| Processor model |
i5-1235U |
| Processor generation |
12th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory form factor |
DIMM/SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Memory clock speed |
3200 MHz |
| Memory slots type |
SO-DIMM |
| Memory slots |
2 |
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Iris Xe Graphics |
| On-board graphics card family |
Intel Iris Xe Graphics |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| Audio |
| Audio chip |
Realtek ALC256 |
| Built-in microphone |
Yes |
| RMS rated power |
3 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Camera |
| Total megapixels |
5 MP |
| Built-in camera |
Yes |
| Network |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| Colour name |
Black |
| Product colour |
Black |
| Performance |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Motherboard chipset |
Intel SoC |
| Product type |
All-in-One PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Processor special features |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Power |
| AC adapter input voltage |
100 – 240 V |
| AC adapter power |
90 W |
| General |
| Product family |
IdeaCentre |
| Product series |
A |
| Weight & dimensions |
| Package weight |
12.9 g |
| Package height |
570 mm |
| Package depth |
232 mm |
| Package width |
763 mm |
| Weight (with stand) |
8.82 kg |
| Height (with stand) |
472.9 mm |
| Depth (with stand) |
200 mm |
| Width (with stand) |
613.1 mm |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
20 – 93% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-20 – 55 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Packaging content |
| Keyboard language |
UK English |
| Keyboard included |
Yes |
| Mouse included |
Yes |
