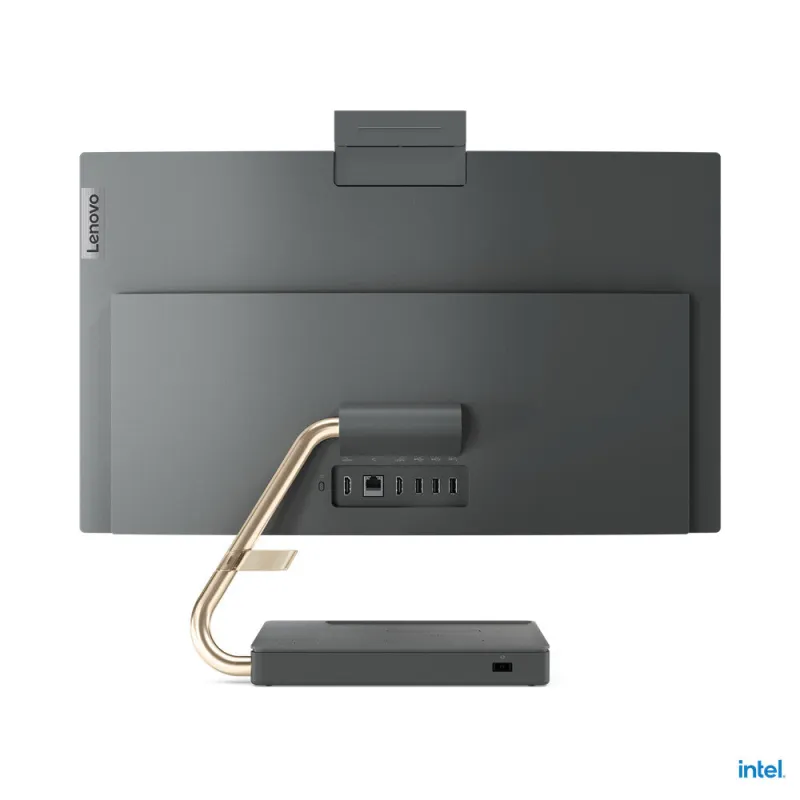

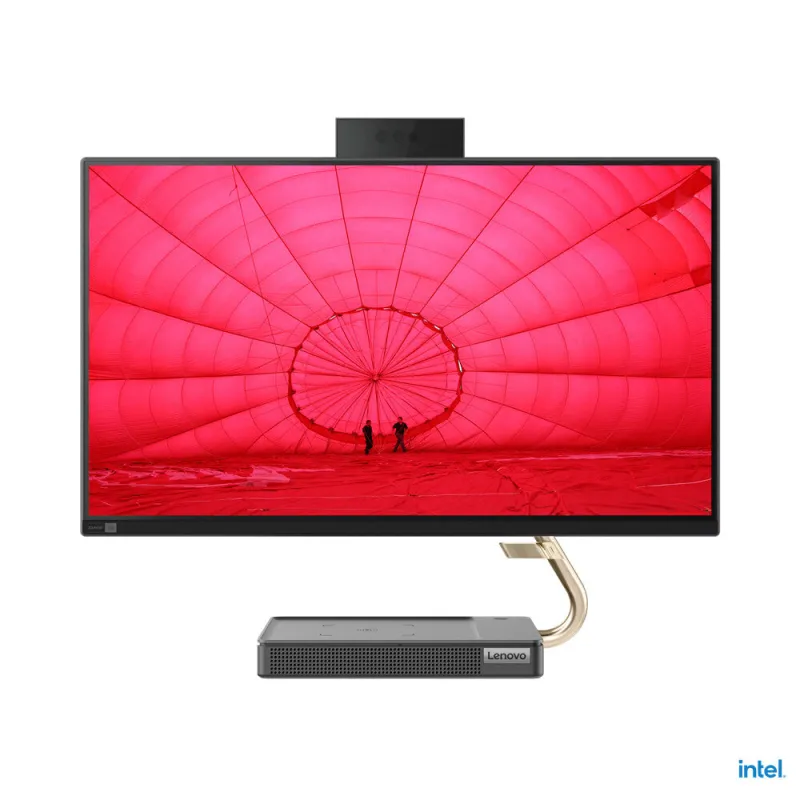

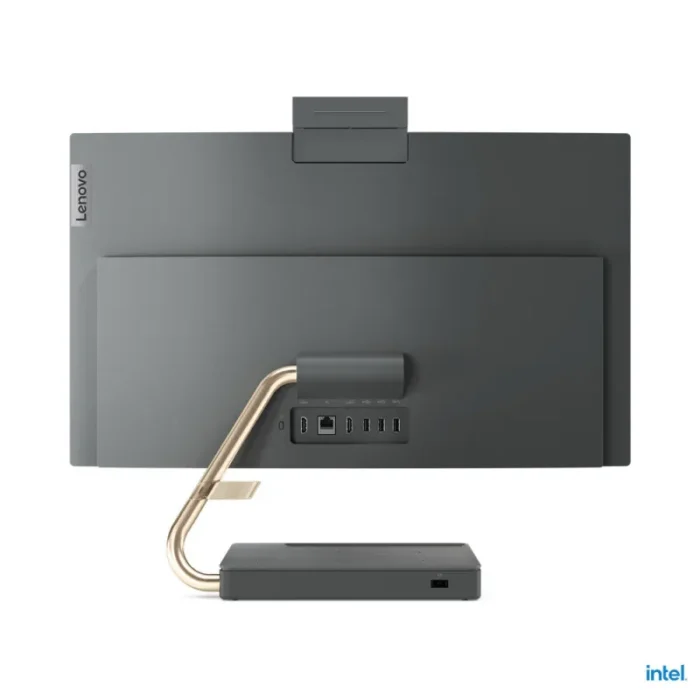

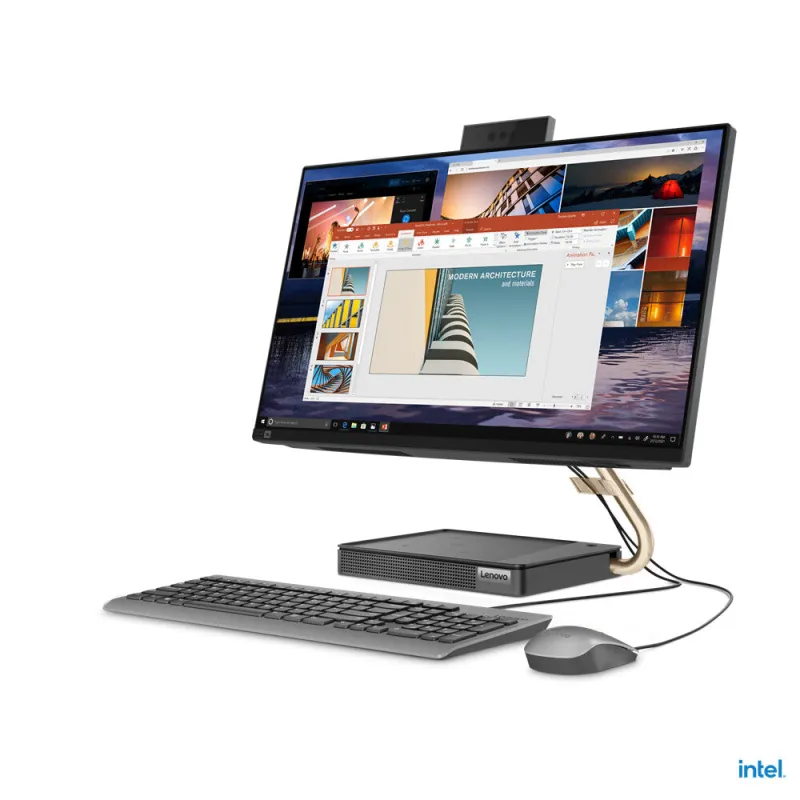

Lenovo IdeaCentre 5 Intel® Core™ i5 i5-10400T 60.5 cm (23.8″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 512 GB SSD Windows 10 Home Wi-Fi 6 (802.11ax) Grey
- Intel Core i5-10400T (6C/12T, 2.0/3.6GHz, 12MB)
- 2x 4GB SO-DIMM DDR4-2666
- 512GB SSD M.2 2280 PCIe NVMe
- Intel UHD Graphics 630
- Windows 10 Home 64
All you need to thrive at home
The Lenovo IdeaCentre AIO 5i is designed with more than looks in mind. Driven by up to Intel® Core™ i7 processors and backed by advanced memory and storage technology, it makes light work of the heaviest of tasks. Perfect for entertainment, it boasts a 23.8″ FHD display, Dolby Audio™ Premium, and Harman®-certified JBL® speakers. It’s all you need in a home PC. And more.
| Display |
| Panel type |
IPS |
| Display brightness |
250 cd/m² |
| Native aspect ratio |
16:9 |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
60.5 cm (23.8″) |
| Processor |
| Configurable TDP-down |
25 W |
| Configurable TDP-down frequency |
1.3 GHz |
| Processor frequency |
2 GHz |
| Processor boost frequency |
3.6 GHz |
| Processor cores |
6 |
| Processor model |
i5-10400T |
| Processor generation |
10th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Memory form factor |
DIMM/SO-DIMM |
| Memory layout (slots x size) |
2 x 4 GB |
| Memory clock speed |
2666 MHz |
| Memory slots type |
SO-DIMM |
| Memory slots |
2 |
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics 630 |
| On-board graphics card |
Yes |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| Audio |
| Audio chip |
Realtek ALC274-CG |
| Built-in microphone |
Yes |
| Speakers manufacturer |
JBL |
| RMS rated power |
6 W |
| Number of speakers |
3 |
| Built-in speaker(s) |
Yes |
| Camera |
| Camera HD type |
HD |
| Total megapixels |
5 MP |
| Built-in camera |
Yes |
| Network |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| HDMI version |
1.4 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Design |
| Colour name |
Graphite Gray |
| Product colour |
Grey |
| Performance |
| HDD user password |
Yes |
| Motherboard chipset |
Intel B560 |
| Product type |
All-in-One PC |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 Home |
| Processor special features |
| Intel Trusted Execution Technology |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
No |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel 64 |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Power |
| AC adapter input voltage |
100 – 240 V |
| AC adapter power |
120 W |
| General |
| Product family |
IdeaCentre |
| Weight & dimensions |
| Weight (with stand) |
7.23 kg |
| Height (with stand) |
437.8 mm |
| Depth (with stand) |
185 mm |
| Width (with stand) |
541.2 mm |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Certification |
ErP Lot 3 and Lot 7 RoHS compliant |
| Compliance certificates |
RoHS |
| Packaging content |
| Keyboard language |
UK English |
| Keyboard included |
Yes |
| Mouse included |
Yes |
