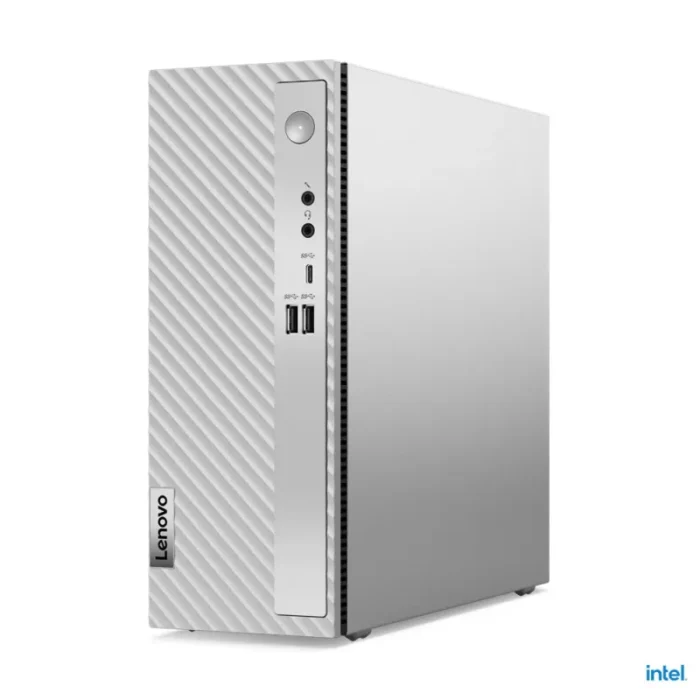

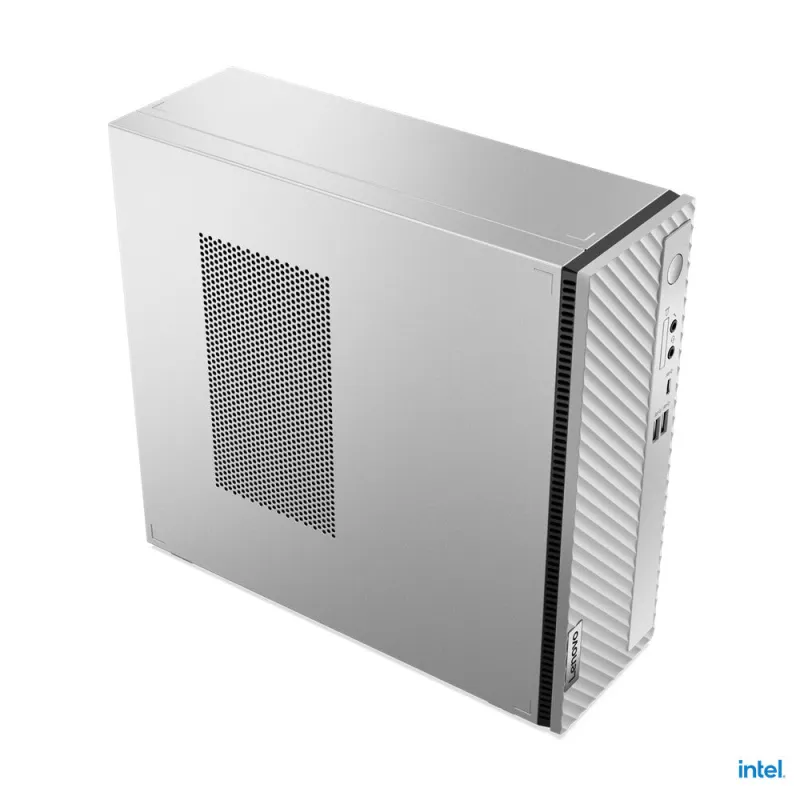

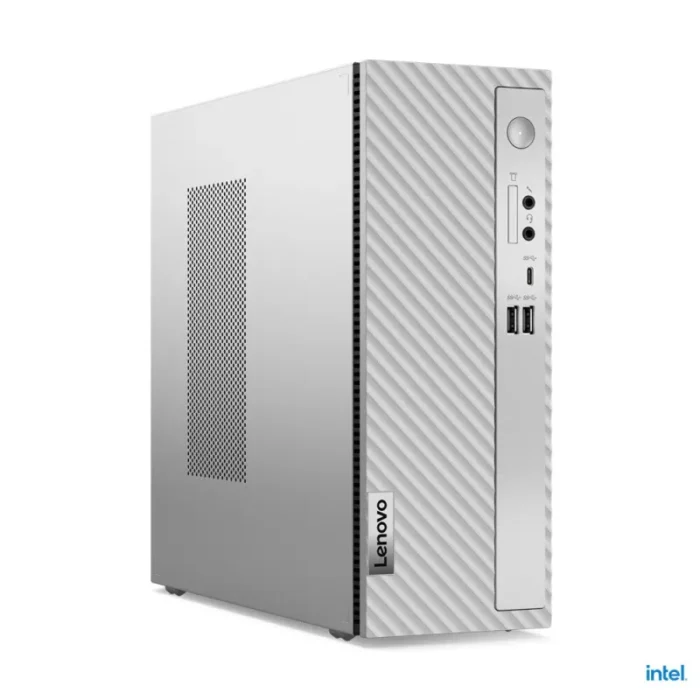

Lenovo IdeaCentre 3 Intel® Core™ i7 i7-12700 8 GB DDR4-SDRAM 1.26 TB HDD+SSD Windows 11 Home SFF PC Grey
- Intel Core i7-12700, 12C (8P + 4E)/20T, P-core 2.1/4.8GHz, E-core 1.6/3.6GHz, 25MB
- 1x 8GB UDIMM DDR4-3200
- 256GB SSD M.2 2280 PCIe 4.0×4 NVMe + 1TB HDD 7200rpm 3.5″
- Intel UHD Graphics 770
- Windows 11 Home 64
Space-saving, family-friendly computing
– Ultra-compact, 7.4L chassis fits anywhere to help save space
– Power-packed, with up to 12th Gen Intel® CPU
– Storage for all your games & files, including dual SSD/HDD option
– Choose performance or quiet modes using Smart Power toggles
– Easy connectivity with speedy WiFi & multiple front-facing ports
| Processor |
| Number of processors installed |
1 |
| Bus type |
DMI4 |
| Processor cache |
25 MB |
| Processor boost frequency |
4.9 GHz |
| Processor cores |
12 |
| Processor model |
i7-12700 |
| Processor generation |
12th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory channels |
Dual-channel |
| Non-ECC |
Yes |
| Buffered memory type |
Unregistered (unbuffered) |
| Memory clock speed |
3200 MHz |
| Memory slots |
2x DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
32 GB |
| Internal memory |
8 GB |
| Storage |
| Card reader integrated |
Yes |
| SSD form factor |
M.2 |
| SSD interface |
NVMe, PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| HDD size |
3.5″ |
| HDD speed |
7200 RPM |
| HDD capacity |
1 TB |
| Number of HDDs installed |
1 |
| Total HDDs capacity |
1 TB |
| Number of storage drives installed |
2 |
| Storage media |
HDD+SSD |
| Optical drive type |
No |
| Total storage capacity |
1.26 TB |
| Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Bluetooth version |
5.2 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Design |
| Product colour |
Grey |
| Placement supported |
Vertical |
| Volume |
7.4 L |
| Colour name |
Cloud grey |
| Chassis type |
SFF |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Password protection type |
Power on, Supervisor, HDD |
| Password protection |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC623-CG |
| Motherboard chipset |
Intel B660 |
| Product type |
PC |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Processor special features |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Certification |
ErP Lot 3RoHS |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Weight |
6.25 kg |
| Height |
274.8 mm |
| Depth |
303.5 mm |
| Width |
100 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
IdeaCentre |
