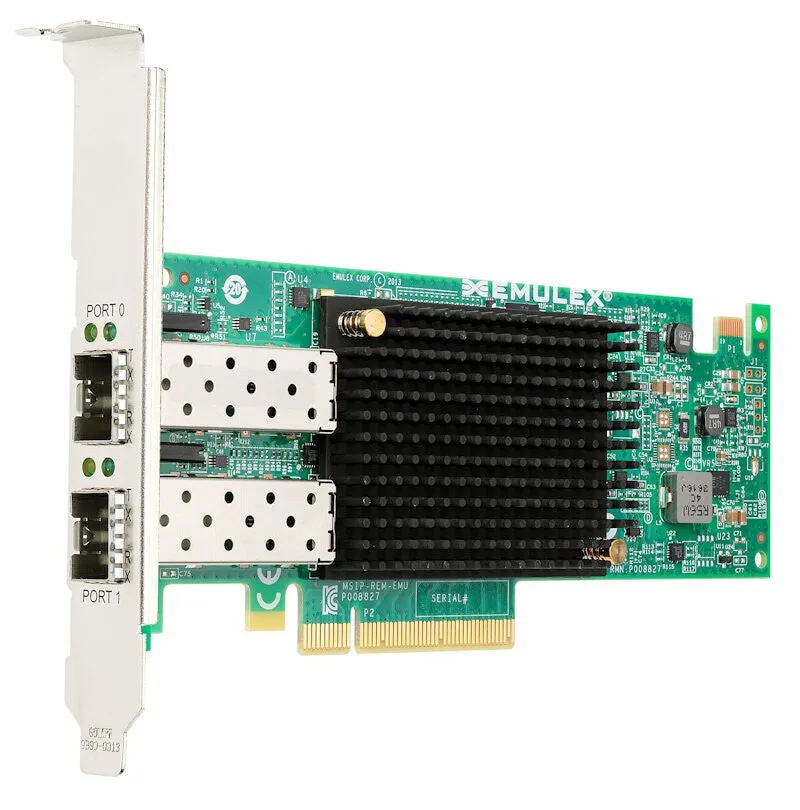

Lenovo 00AG570 network card Internal Fiber 10000 Mbit/s
- Wired
- PCI Express 3.0 Fiber
- 10000 Mbit/s
- Internal Component for: Server
The Emulex VFA5.2 adapters support three methods to virtualize I/O, out of the box: Virtual Fabric Mode (vNIC1), Switch Independent mode (vNIC2) and Unified Fabric Port (UFP) mode. With Virtual Fabric, up to eight virtual network ports (vNICs) can be created with a single two-port 10 GbE network adapter.
On System x adapters, storage protocols such as iSCSI and FCoE are also supported by Features on Demand upgrades. Using a common hardware infrastructure for Ethernet and SAN and by virtualizing your network adapter, you can reduce your infrastructure capital expense.
Part number information
The part numbers to order these adapters are listed in the following table. The FCoE/iSCSI upgrade licenses are a Features on Demand field upgrade that enables full hardware offloaded converged networking capabilities of the adapters. Adapters 00AG580 and 01CV770 already includes the FCoE/iSCSI license.
| Ports & interfaces | |
|---|---|
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| VLAN tagging | Yes |
| iSCSI support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3x |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Product colour | Black, Green |
| Component for | Server |
| Internal | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 55 °C |
| Weight & dimensions | |
|---|---|
| Height | 167 mm |
| Depth | 7 mm |
| Width | 69 mm |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Receive Side Scaling (RSS) | Yes |
| Flow control support | Yes |
