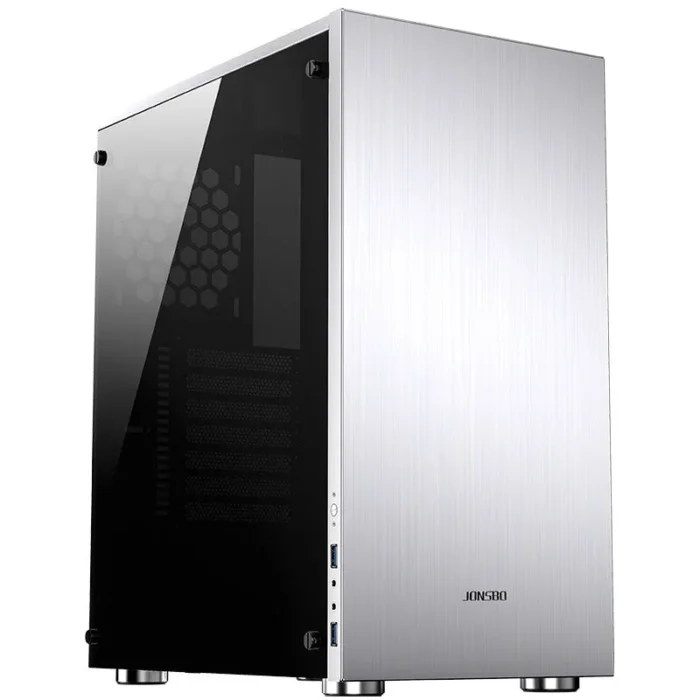

Jonsbo C5 Small Form Factor (SFF) Silver
- Small Form Factor (SFF) PC
- ATX, ITX, micro ATX
- Supported HDD sizes: 2.5,3.5″
- Number of 2.5″ bays: 4 Number of 3.5″ bays: 4
- Side window Tempered glass panel(s)
- Aluminium
- Silver
C5 is a small form factor ATX case based on the idea of functional integrity of the product. It is an ATX case iteratively derived from MATX C3 PLUS. The shell is made of l.5MM aluminum-magnesium alloy. In terms of structural strength, the main structural strength is enhanced by L-shaped crossed buckles design and multiple bending processes. In terms of product functionality, it is design with wire management at back, bottom independent PSU cabinet and front side cooling channel. In such a small space it supports 5 HDD with longer video card support, and many other iterative optimization makes C5 a perfect integral product. Even ordinary users can easily build a small-sized ATX system with clear wiring and unobstructed heat dissipation.
| Design |
| Maximum PSU length |
25 cm |
| Maximum graphics card length |
34 cm |
| Maximum CPU cooler height |
17 cm |
| On/off button |
Yes |
| Tempered glass panel(s) |
Yes |
| Side window |
Yes |
| Number of 2.5″ bays |
4 |
| Number of 3.5″ bays |
4 |
| Supported motherboard form factors |
ATX, ITX, micro ATX |
| Product colour |
Silver |
| Material |
Aluminium |
| Type |
PC |
| Form factor |
Small Form Factor (SFF) |
| Ports & interfaces |
| Audio output |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Cooling |
| Front radiator sizes supported |
240,280 mm |
| Bottom fans diameters supported |
120 mm |
| Number of bottom fans supported (max) |
1 |
| Rear fans diameters supported |
120 mm |
| Number of rear fans supported (max) |
1 |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
2 |
| Front fans installed |
2x 120 mm |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| Weight & dimensions |
| Weight |
5.3 kg |
| Height |
439 mm |
| Depth |
360 mm |
| Width |
218 mm |
