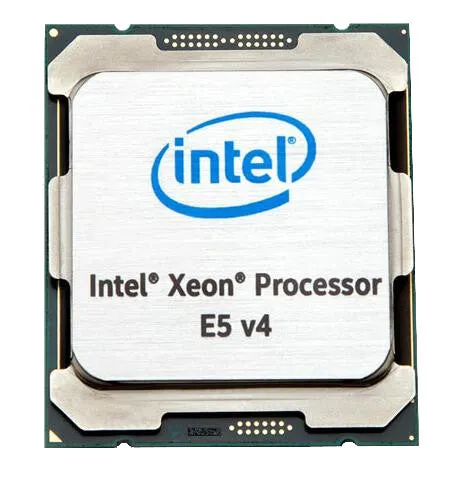

Intel Xeon E5-2699V4 processor 2.2 GHz 55 MB Smart Cache
- Intel® Xeon® E5 v4 E5-2699V4 2.2 GHz
- 55 MB Smart Cache LGA 2011-v3
- Processor cores: 22 14 nm 64-bit 145 W
- Maximum internal memory supported by processor: 1.54 TB DDR4-SDRAM
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
| Processor | |
|---|---|
| Processor ARK ID | 91317 |
| Processor codename | Broadwell |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Number of QPI links | 2 |
| Bus type | QPI |
| Stepping | B0 |
| Thermal Design Power (TDP) | 145 W |
| Processor cache type | Smart Cache |
| Processor cache | 55 MB |
| Processor boost frequency | 3.6 GHz |
| Processor operating modes | 64-bit |
| System bus rate | 9.6 GT/s |
| Processor threads | 44 |
| Processor series | Intel Xeon E5-2600 v4 |
| Component for | Server/workstation |
| Cooler included | No |
| Box | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 2011-v3 |
| Processor cores | 22 |
| Processor base frequency | 2.2 GHz |
| Processor model | E5-2699V4 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Quad-channel |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1.54 TB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 2S |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| CPU configuration (max) | 2 |
| Supported instruction sets | AVX 2.0 |
| PCI Express configurations | 1×16, 1×4, 1×8 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Demand Based Switching | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Turbo Boost Technology 2.0 frequency | 3.6 GHz |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Flex Memory Access | No |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Operational conditions | |
|---|---|
| Tcase | 79 °C |
| Technical details | |
|---|---|
| End of servicing updates date | Thursday, June 30, 2022 |
| Servicing status | End of Servicing Updates |
| Bus bandwidth | 9.6 |
| Bus type units | GT/s |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 v4 Family |
| Launch date | Q1’16 |
| Status | Launched |
| Bus speed | 9.6 GT/s |
| Processor cache | 56320 KB |
| Supported memory types | DDR4-SDRAM |
| Product type | Processor |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85423119 |
| Weight & dimensions | |
|---|---|
| Processor package size | 45mm x 52.5mm |
| Other features | |
|---|---|
| Maximum internal memory | 1.5 TB |
