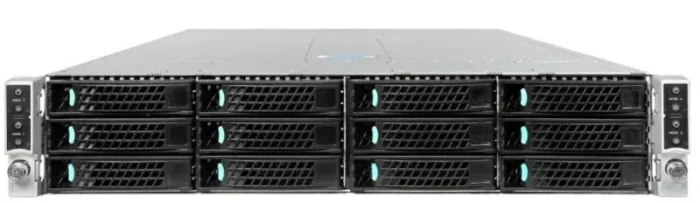

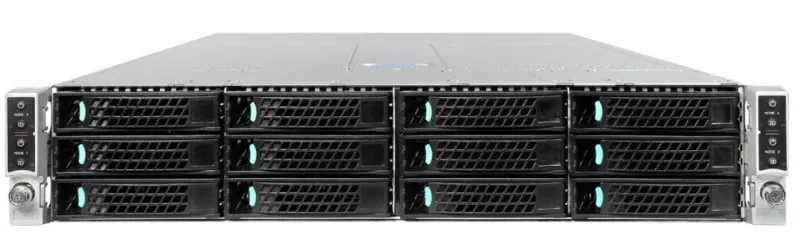

Intel H2312XXLR3 computer case Rack Black, Silver 2130 W
- Rack Server
- Supported HDD sizes: 3.5″
- Number of 3.5″ bays: 12
- Power supply included 2130 W
- Metal
- Black, Silver
2U rack chassis supporting up to four hot-pluggable compute modules Intel(r) Compute Module HNS2600BP product family, up to 12 hot-swap drives, and two 2130W common redundant power supplies
| Design | |
|---|---|
| Side window | No |
| Rack mounting | Yes |
| Number of storage drives supported | 12 |
| Number of 3.5″ bays | 12 |
| Product colour | Black, Silver |
| Material | Metal |
| Type | Server |
| Form factor | Rack |
| Power supply | |
|---|---|
| Redundant fans | N |
| Number of power supply units | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 2130 W |
| Power supply included | Yes |
| Storage | |
|---|---|
| Hot-swap | Yes |
| Supported HDD sizes | 3.5″ |
| Technical details | |
|---|---|
| Status | Launched |
| Backplanes | Included |
| Target market | High Performance Computing |
| Weight & dimensions | |
|---|---|
| Weight | 28 kg |
| Height | 87 mm |
| Depth | 771 mm |
| Width | 87.9 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Product codename | Buchanan Pass |
| Product series | Intel® Server Chassis H2000P Family |
| Product family | 2U Rack Server Chassis |
| Launch date | Q3’17 |
| Extended warranty available for purchase (select countries) | Yes |
| ARK ID | 98417 |
| CPU configuration (max) | 8 |
| Hot-Plug support | Yes |
| Export Control Classification Number (ECCN) | EAR99 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Power supply type | AC |
| Redundant fans support | No |
