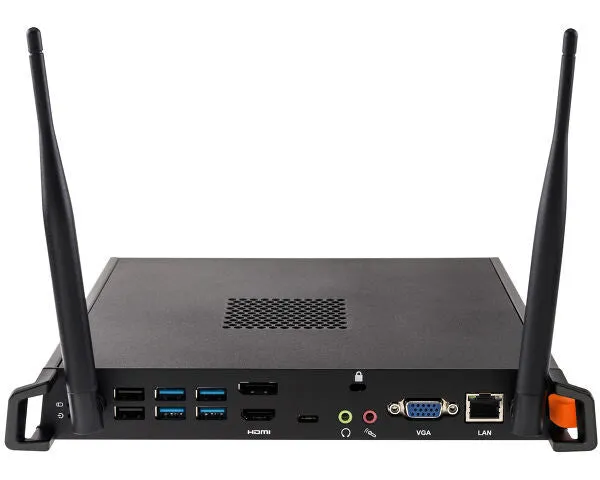

iiyama SPC5802BC embedded computer Intel® Core™ i5 256 GB SSD 8 GB
This mini PC with Intel Core i5 inside turns your iiyama interactive large format display into a stand-alone solution. It comes equipped with a powerful Intel® processor with integrated Ultra HD graphics and a fast SSD drive. No hassle with cables and having to mount a PC at the back of the monitor or on a floor lift. Simply slide in the iiyama slot PC and get started right away.The module is only compatible with iiyama TExx03MIS series: 55”: TE5503MIS-B1AG, 65”: TE6503MIS-B1AG, 75″: TE7503MIS-B1AG, 86”: TE8603MIS-B1AG , 98”: TE9803MIS-B1AG
| Processor |
| Conflict-Free processor |
Yes |
| Bus type |
DMI3 |
| Processor model |
i5-8500 |
| Processor generation |
8th gen Intel® Core™ i5 |
| Processor family |
Intel® Core™ i5 |
| Processor manufacturer |
Intel |
| Memory |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| SSD capacity |
256 GB |
| Card reader integrated |
No |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Total storage capacity |
256 GB |
| Graphics |
| Discrete graphics card |
No |
| On-board graphics card model |
Intel® HD Graphics 630 |
| On-board graphics card |
Yes |
| Network |
| Bluetooth version |
4.2 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 10 IoT Enterprise |
| Processor special features |
| Intel TSX-NI version |
1.00 |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Secure Key Technology version |
1.00 |
| Intel Identity Protection Technology version |
1.00 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Intel 64 |
Yes |
| Intel TSX-NI |
Yes |
| Embedded options available |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Idle States |
Yes |
| Execute Disable Bit |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Power |
| Power supply input frequency |
50/60 Hz |
| Power supply input voltage |
100-240 V |
| Power consumption (standby) |
1.35 W |
| Power consumption (typical) |
95 W |
| Operational conditions |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 45 °C |
| Weight & dimensions |
| Package height |
91 mm |
| Package depth |
353 mm |
| Package width |
312 mm |
| Weight |
1.9 kg |
| Height |
32.2 mm |
| Depth |
246.1 mm |
| Width |
263.4 mm |
